Time tester WF-1588 for SDH/SONET core networks and IP-based backhaul networks Time Tester

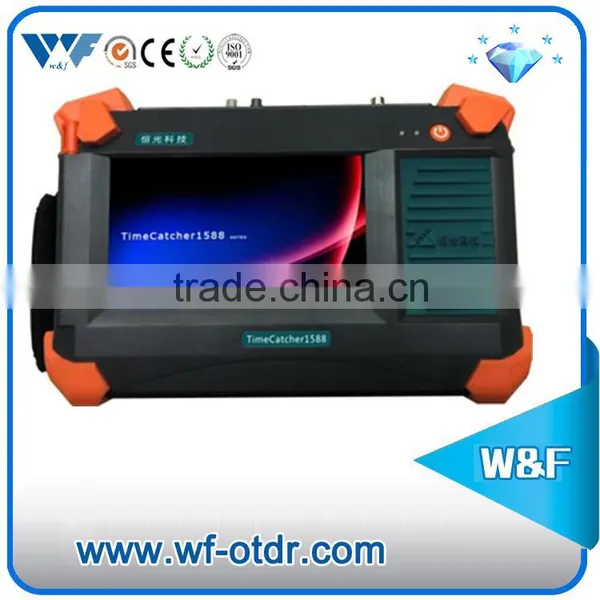

The TimeCatcher1588 is a Sync Tester / Analyzer that allow the user to test and analyze synchronization quality and compliance in various types of networks. The TimeCatcher1588 is developed for both traditional SDH/SONET core networks and IP-based backhaul networks, that can measure synchronization conformance simultaneously at a packet sync level (based on SyncE and IEEE 1588v2 technologies) and at a traditional physical sync level (1PPS, E1 interface) behind a packet synchronized devices. Multiple packet sync measurements can be performed, whether it’s related to IEEE 1588v2 slave / boundary clock performance qualification or SyncE wander can be also measured at any node in the network.
Basic Function
l Embedded time and frequency GPS / Rubidium reference.
l Built-in Rubidium oscillator,High sensitivity GPS receiver,BD receiver for timing measurement vs UTC.
l High sensitivity measurement 1588v2 time server,PTN/OTN Data transmission devices and traditional physical sync level (PTP,1PPS, 1PPS+TOD).
l Precision measurement IEEE1588v2 clock synchronization or SyncE clock synchronization accuracy performance including 2.048MHz,2.048Mb/s,Ethernet.
l TOD instant message display, TOD deviation real-time display.
l PTP messages instantly capture, analysis, storage, PTP synchronization process instantly displays.
l use as auxiliary time server to provide 1PPS+TOD or PTP signal for system time.
l Select GPS Rubidium atomic clock for at least 3 hour continue test, suitable for indoor or the place where user do not have GPS antenna environment.
l Provide G.703 2.048MHz,2.048Mb/s accuracy external clock input interface.
l Support long period continue test,Statistic analysis time synchronization and clock synchronization long-term drift,calculate MTIE,TDEV.
l Instant screen capture function, you can save test result via graph mode instant.
l Supports test result stored and data replay function.
l Built-in Li-Ion rechargeable battery, supports 8 hours continuous operation.
l USB data upload/download ports,Results of measurements on a PC sorting, archiving, analysis.
l Extensive system information query functions, such as satellite state, Rubidium state, storage space, temperature, and other information.
l Support association test function, PTP + TOD simultaneously test.
l Supports multi-input physical sync measurements.
l 7 inch TFT color screen operation,language support Chinese/ English with GUI interface.
l Fully comply with IEEE,ITU-T standard.
l Provide different types of test modules for users, to meet the different requirements of the test environment.
l Supports Instant results, trends, test patterns, message statistics, packet analysis, compensation view.
l Supports PTP / TOD simulation tests.
l Supports manual, automatic and timed tests.
l Support real-time screenshots, and the test result can be saved as an image at anytime.
l Support in-depth analysis, template matching.
l Supports on-line firmware upgrade.
Item |
Description |
|
Built-in GPS receiver |
L1 Band |
CA code 50 channels, L1 frequency 1575MHz |
1 PPS accuracy |
15ns |
|
Built-in BD receiver |
Compass B1 |
24 channels, B1 frequency 1561MHz |
1PPS accuracy |
30ns |
|
TOD mode |
China Mobile, NMEA, ASCII |
|
Rubidium atomic clock |
5x 10-11 |
|
Depth lock time |
55 minutes |
|
Frequency test accuracy |
± 1x10-10 |
|
|
Time Test Input port
|
1PPS + TOD |
RS422, RS232 |
TOD |
RS422, RS232 |
|
1PPS |
TTL |
|
PTP |
10/100/1000Base-T, 100Base-FX, 1000Base-FX Supports Unicast and Multi-cast |
|
Clock Test Input port |
G.703 |
2.048MHz, 2.048Mb/s |
Sync-E |
10/100/1000Base-T, 100Base-FX, 1000Base-FX |
|
|
Input port |
TOD |
RS422, RS232 |
1PPS |
TTL |
|
G.703 |
2.048MHz, 10MHz |
|
PTP |
10/100/1000Base-T, 100Base-FX, 1000Base-FX Supports Unicast and Multi-cast |
|
Ext. Clock Input port |
G.703 |
2.048MHz, 2.048Mb/s |
Management port |
Console, USB, 10/100Base-TX Ethernet |
|
Battery |
Li-Ion Rechargeable battery, supports 8 hours continuous operation |
|
Battery Recharge time |
3 hours |
|
Power Input |
16V/8A DC adatpter |
|
LCD screen |
7 inch TFT color screen, 800x480 |
|
Dimension |
292mm x 200mm x 90mm (W x H x D) |
|
Temperature |
Operating:0 OC ~ 50 OC , Storage:-20 OC ~ 60 OC |
|
Humidity |
0% ~ 95% non-condensing |
|
Weight |
2.3kg (with Battery) |
|
|
||
