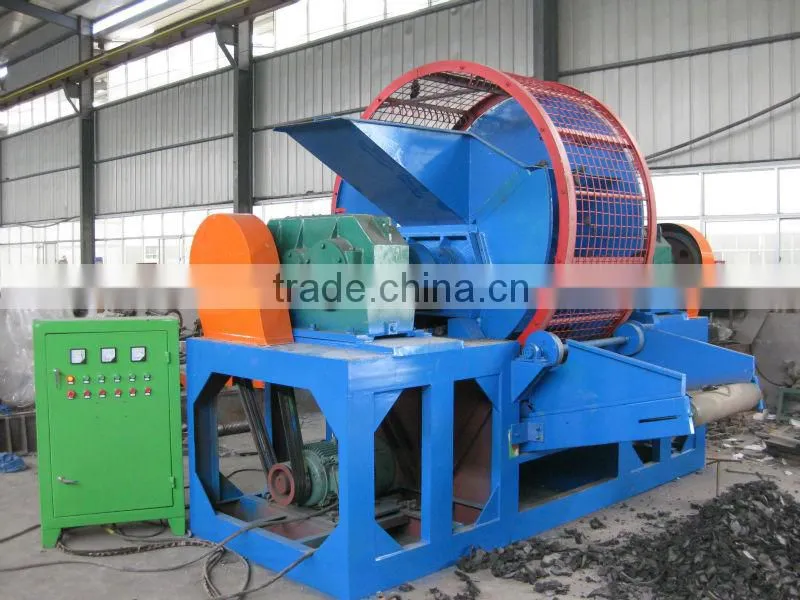

Rubber Cutting Machine Type rubber tire cutting machine
1.General of tire cutting equipment

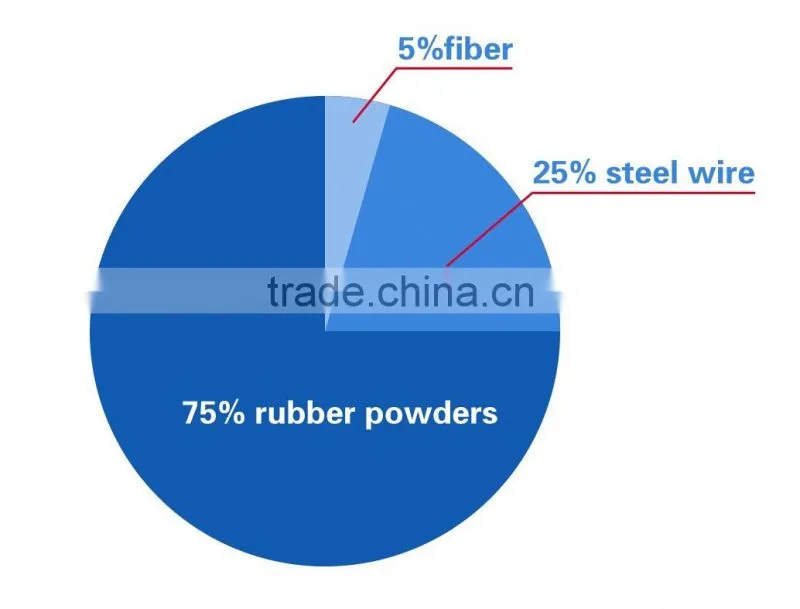

It's a new hot highly profitable green project, which can convert waste tires/rubber to
treasure (75% rubber powders, 25% steel wire, 5%fiber)
We use green technology (waste rubber regeneration line) recycling waste to resourses.

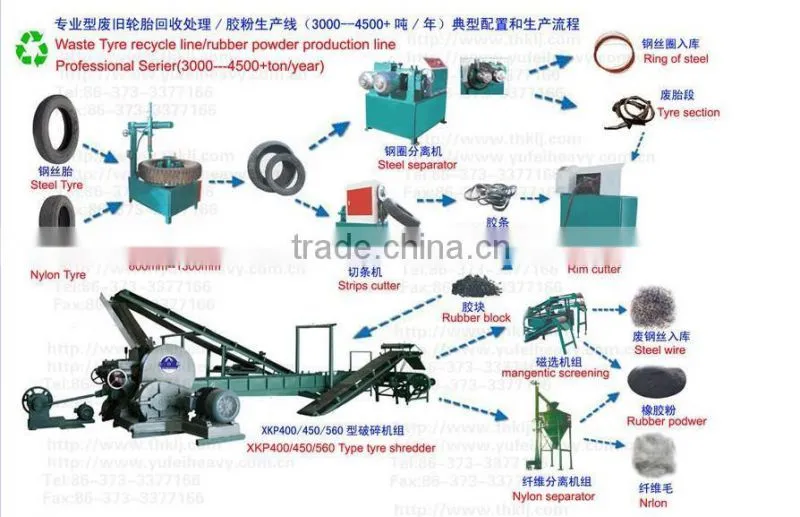

2.Working process of tire cutting equipment
| Name of equipment | Instruction | |
| Main equipment | Rubber powder machine | Model No. : XKP-350 XKP-400 XKP-450 XKP-560 XKP-560D |
| Auxiliary equipment | Tire Ring cutter | To remove the steel wire within the tire |

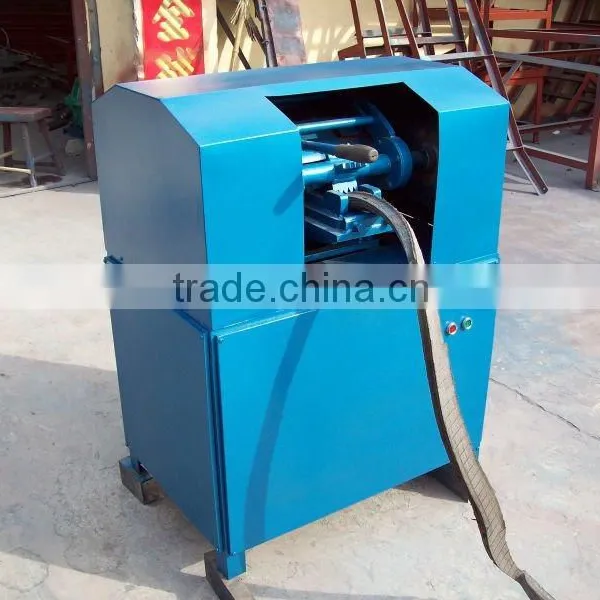

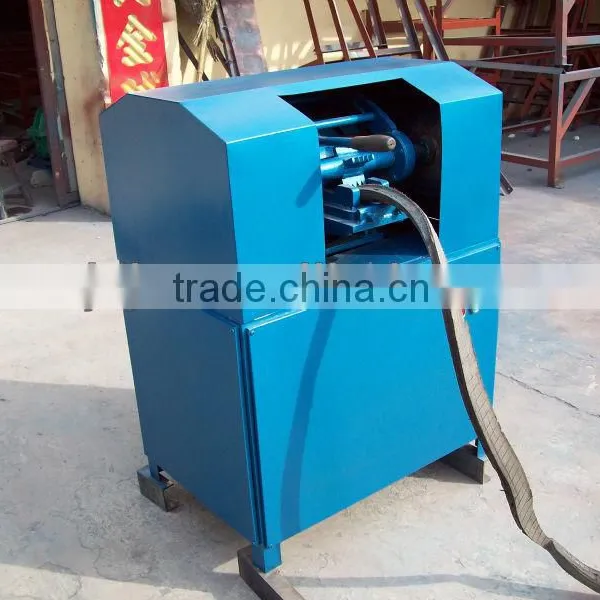

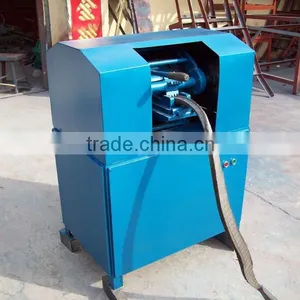

| Tire Strip cutter | Cut tire into strips | |
| Tire block cutter | Cut strips into rubber pieces | |
| Magnetic separator | Extract and separate mental wire from the rubber power | |
| Steel wire separator | Special for exract wires in the tire's circle | |
| Rubber powder grinder | Deep process the rubber powder to 40-100 mesh | |
3. Analysis for output of tire cutting equipment
| Model |
Roll diameter*length mm |
Front roll ratio M/min |
Roll ratio |
Max roll space mm |
Motor power KW |
Capacity T/day |
| XKP-350 | 300*500 | 26.2 | 1:2.5 | 8 | 30 | 3 |
| XKP-400 | 400*600 | 34.5 | 1:2.5 | 8 | 45 | 6 |
| XKP-450 | 450*760 | 38.0 | 1:2.5 | 8 | 55 | 8 |
| XKP-560 | 510*800 |
38.6 | 1:2.5 | 8 | 75 | 10 |
| XKP-560D | 560*800 | 42.5 | 1:2.5 | 8 | 132 | 20 |
1), Iron/steel removing ratio>99.5%, fiber removing ratio>98%
2), Compact structure ensure running safety, easy maintenance
3), Low energy consumption
4), Adopt automatic control system for whole line, reduce labor cost
5), No sewage and waste gas discharge, environment protection.
6), Available capacity range of our tire recycling lines at present: 150~800kg/h
7), Available finial rubber powder size: 30~100mesh
8), Adopts SIEMENS and Chinese famous brand electrical elements.
tire recycling equipment:
Model |
Shipping way |
XKP350 |
40HQ |
XKP400 |
40HQ |
XKP450 |
40HQ+20GP |
XKP560 |
40HQ+20GP |
XKP560D |
2*40HQ |
Installation & Commission of Tire Cutting Machine
1) Foundation drawings will be provided after making the order.
2) Engineers provided overseas installation and commissioning.
3) Trainings and other essential basic instructions will be provided.
After-sale service
1) We will send engineer to your site to install machine, train your workers and do
commissioning.
2) We offer one year warranty for our products.
