High efficiency waste tire strips cutter machine
- 10 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- automatic welding machine for stainless steel commerical sink panel and bowl
- Stainless Steel Heavy and large Box Semi-Automatic Polishing Machine Gantry Polishing Machine
- SPECIAL METAL WIRE WEAVING MACHINE
- MODERN WIRE MESH WEAVING MACHINES FROM LANYING FOR BRASS WIRE MESH WEAVING
- LANYING stainless steel woven wire mesh machines
Product Details
Place of Origin: | Henan, China | Brand Name: | Jinzhen | Model Number: | JZ-XKP-560 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

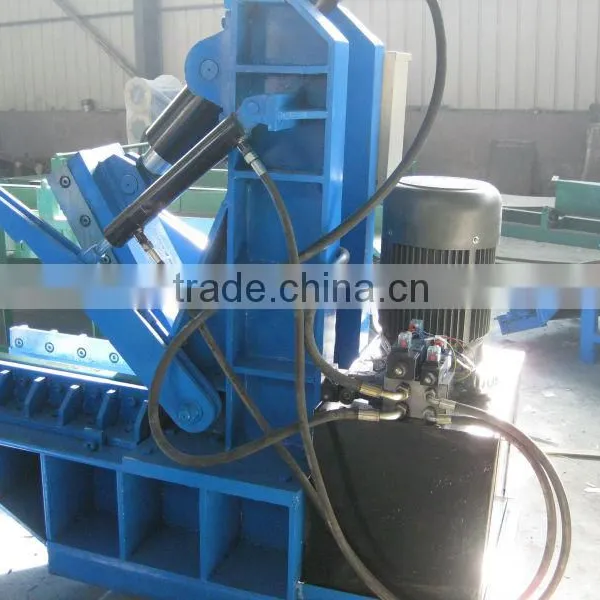

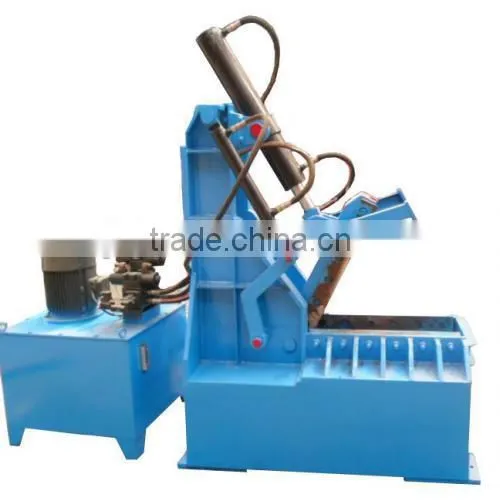

High efficiency waste tire strips cutter machine

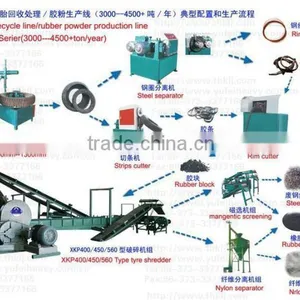

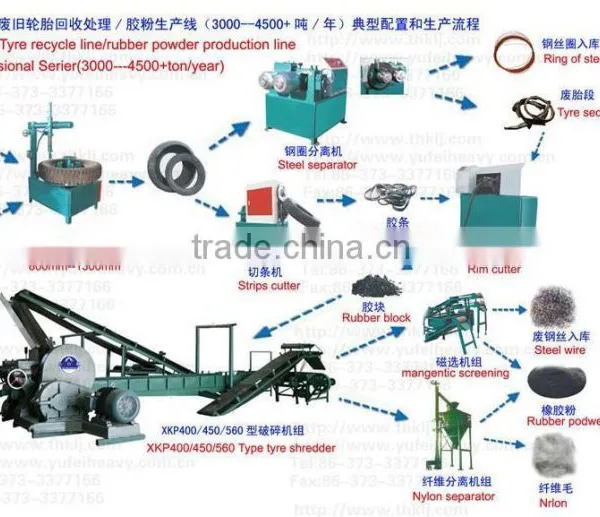

Our comany have several kinds of tire cutting machine which have different
function, you can choose the best suitable one according to your actual needs.
Name of equipment | Instruction | |
Main equipment | Rubber powder machine | Model NO. : XKP-350 XKP-400 XKP-450 XKP-560 XKP-560D |
Auxiliary equipment | Tire Ring cutter | To remove the steel wire within the tire |
Tire Strip cutter | Cut tire into strips | |
Tire block cutter | Cut strips into rubber pieces | |
Magnetic separator | Extract and separate mental wire from the rubber power | |
Steel wire separator | Special for exract wires in the tire's circle | |
Rubber powder grinder | Deep process the rubber powder to 40-100 mesh |
Advantages:
1. The reclaimed rubber could replace part of the new rubber to make up for shortfall in
supply.
2. It could reduce production cost and improve economic performance of the company.
3. It is characterized by reducing environmental pollution, turning waste into useful product
and having better social benefit.
Application of rubber powder
To make production sheet of reclaimed rubber by desulfurization process. |
2. Colorized resilient floor tile. |
3. Waterproof roll, waterproof paint and waterproof sealing materials, etc. |
4. Modified asphalt. |
5. Modified plastics. |
6. Construction of rubberized playgrounds, plastic runway and artificial grass |
7. Plugging and wall stabilizing of oil field. |
8. Addition of railway track. |
9. High-grade highway caulking mastic. |
10. Pressing all kinds of soles. |
Related Tire Cutting Machines
Ring Cutter Machine
Power | 4kw |
Material | Carbon steel |
Capacity | 30 tires/h |
Specification | 650-1200mm |
Dimension | 1700*1000*1700mm |
Weight | 650kg |
Strip Cutting Machine
Power | 4kw |
Weight | 850kg |
Dimension | 1080*800*1700mm |
Capacity | 2.5 T/H |
Specificaion | 50*80mm |

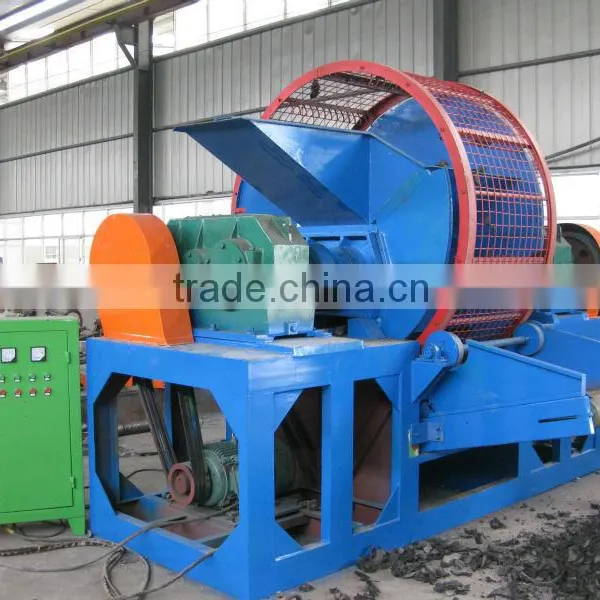

Tire shredder
Tire Shredder (800) | Capacity | 2-4T |
Max diameter | 800mm | |
Output diemension | 50*50mm | |
Motor power | 49.5kw*2 | |
Griddle power | 5.5kw | |
Total power | 104.5kw | |
Dimension | 3500*2000*3000mm | |
Weight | 8.5T |
Rubber Grinder
Power | 35.5kw |
Weight | 2t |
Capacity | 30-120 tires/h |
Working temperature | <80°c |
Feed size | 5-20mm |
Discharge size | 30-80mm |
Dimension | 1500*1300*1500mm |
Installation & Commission of Tire Cutting Machine
1) Foundation drawings will be provided after making the order.
2) Engineers provided overseas installation and commissioning.
3) Trainings and other essential basic instructions will be provided.
After-sale service
1) We will send engineer to your site to install machine, train your workers and do
commissioning.
2) We offer one year warranty for our products.
Our market
Contact us
Contact Us
- Xinxiang City Jinzhen Machinery Manufacturing Co., Ltd.
- Contact nameKelly wang
- Phone86-373-5939771
- AddressYulin village Yanjin county Xinxiang,Henan
