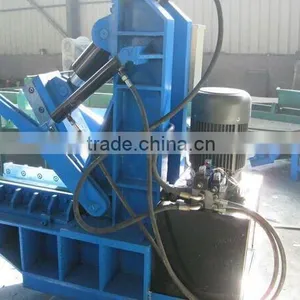

Automatic operation big tire cutting machine with rotating power 3kw
Option 1----Full automatic

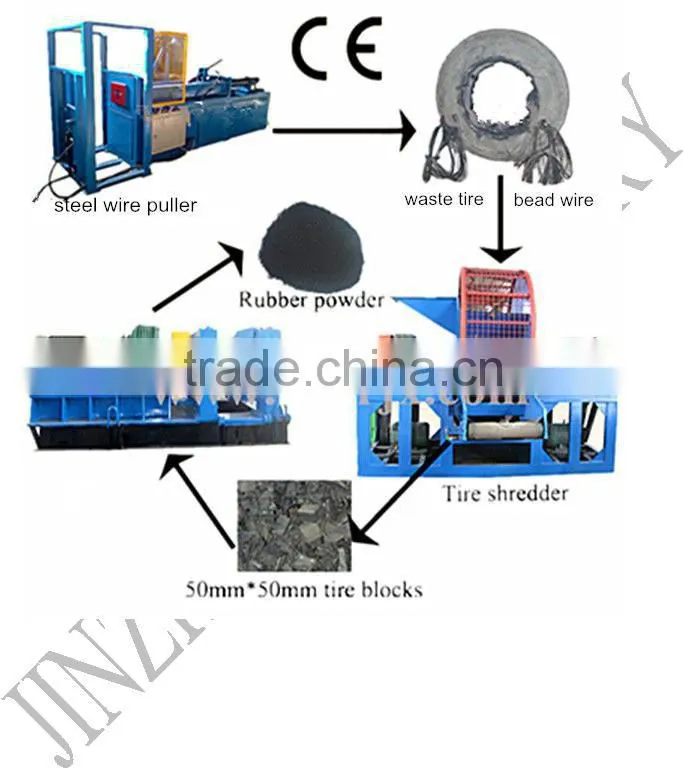

The Working Process: Draw steel wire from the tire ring by Tire wire drawing machine—if the diameter of tire is bigger than 825mm, can choose to use tire cutting machine to cut the tire to several pieces--- put the small tires or pieces into tire shredder to make tire blocks—put the tire blocks to the tire crusher to make rubber powder—finished rubber powder.
1. Steel wire puller
To separate or pull out the wire from the tire.
Capacity |
20-40 tires/h |
Max diameter |
1200mm |
Power |
7.5kw |
Pressure |
13t |
Cylinder telescopic |
1200mm |
length | |
| |
Diameter |
4100*900*1750mm |

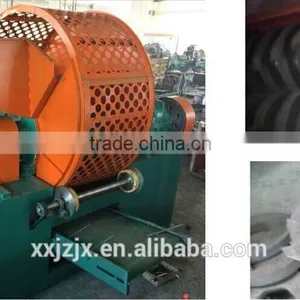

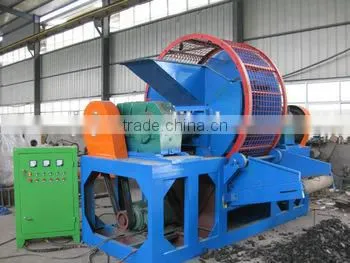

2.Whole Tire shredder
Directly put the whole aste tire into the tire shredder, this machine will automatically cut the tire/rubber into piece or powder.
Model |
JZ-800 |
Max diameter |
800mm |
Output dimension |
50*50mm |
Capacity |
2-4ton/day |
Total power |
104.5kw |
Dimension |
3500*2000*3000mm |
Weight |
8.5ton |

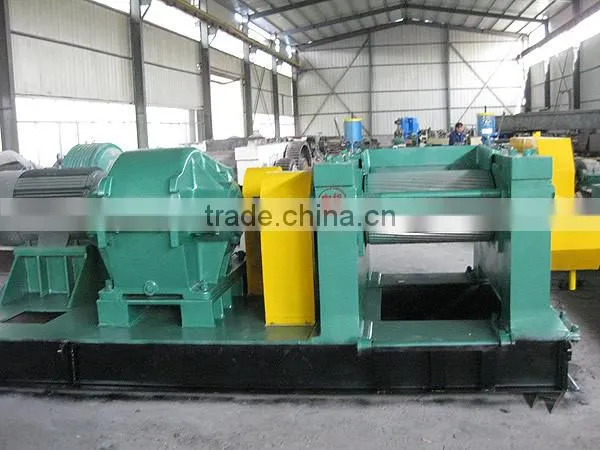

3. Rubber crusher
It is used to crush 50*50mm rubber blocks to 5-40mesh rubber powder.
Model |
XKP-560D |
Capacity |
5-20 ton/day |
Dimension |
5300*2200*1800mm |
Weight |
22.5 ton |
Power |
132 kw |
Output size |
20-30 mesh |
End product: rubber powder ( we can produce the powder mesh we need)

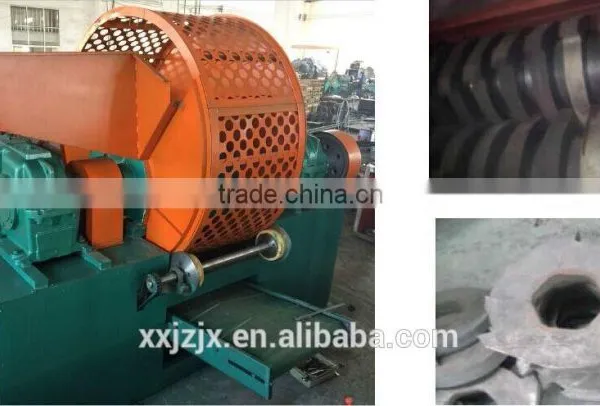

Blades on the whole tyre shredder
Other produciton for you choose:

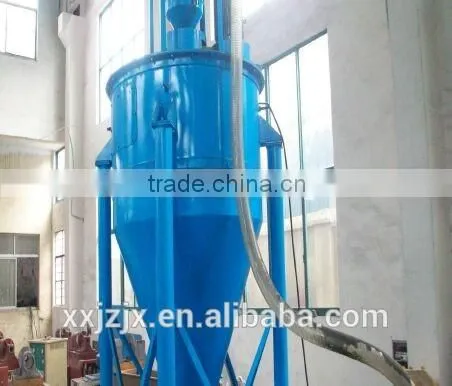

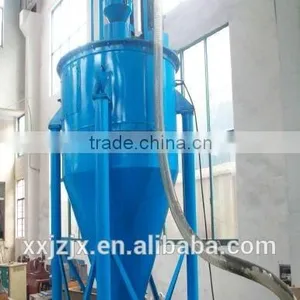

Nylon fiber separator
It is used to separate nylon or fiber from the powder.
Capacity |
1 ton/hour |
Weight |
2.5ton |
Dimension |
1200*1200*3500mm |

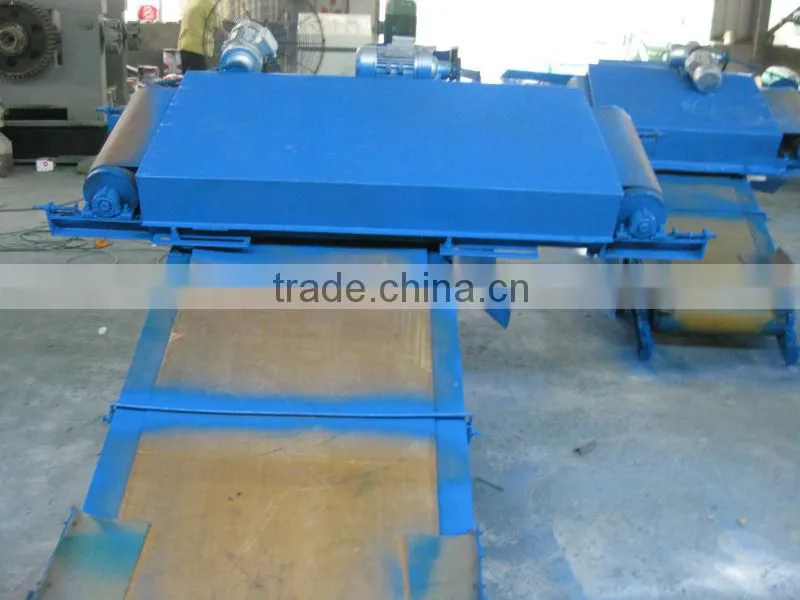

Magnetic separator
Be used to separate steel wire from rubber powder.
Separated steel wire will be transferred to one place, easy to collect
Permanent magnet, no more power consumption
Power |
1.5kw |
Weight |
400kg |
Specs |
Permanent Magnet |
FAQS:
Q1:Is there any limit with the material tire?
Answer:No limit,we have different type machine to cut different size tire;
Q2:What is the application of rubber powder?
Answer:Tire manufacture,rubber modified bitumen,polymer/rubber granule composite materials,thermoplastic elastomer,waterproof roll,material or auxiliary material of athletics track in sports venue,protective layer,facilities of laying the ground,acoustic panel,insulating mat,sneaker and rubber hose...
Q3:How to select the machine Model?
Answer:Please show your material with dimension,we will find solutions for you to make a choice;
Q4:What is the maintance cost?
Answer:The maintance work is only some lubricate oil for bearing,nothing else;
Q5:Is there any pollution?
Answer:No pollution,there is no waste gas,liquid or solid,the sound is only coming from machine running
---Packing(international wooden case or plastic packing)
Jinzhen Service:
1)Find the matched equipment as your requirement and local market
2)Help you to do the shipment
3)Install and the operation training
4)Engineer visit your site every 3monthes to check
5)Warranty 18monthes and service whole life
6)Chinese office serving 24*7 hours a week
7)Help you to update technology free in the future
8)Inform the market information we got of material and final product in your area
Certification
Our company has passed the ISO9001:2008 and the ISO14001 2004, which marks the great progress it has made in the quality of the products and environmental protection.
Our customers
Our machines have been sold to many different countries, we are proud to be able to say that many of our customers have demonstrated their satisfaction with machines quality and our best service.
