2015 New Tech Q245R Waste Tyres/
Rubber Pyrolysis to Oil Plant
Main advantages:
♦ Low cost, high profit
♦ 100% waste raw material recycling
♦ No chemical ingredients are used in process
♦ No soil, water or air pollution during and after the process
♦ Ecomonically valuable products out of waste tires

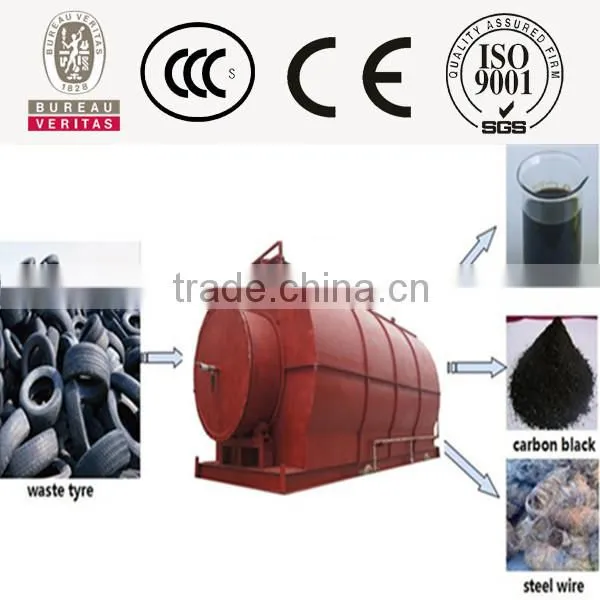

Waste Tyre recycling machine can pyrolysis waste tyre into oil. This kind of machine
also can pyrolysis waste rubber/ plastic into oil, and of course if the raw material is
tyre, the final products will be fuel oil, carbon black , steel wire; if the materail is rubber
or plastic, the final products will be fuel oil and carbon black.
| Parameters of waste tyre recycling machine | ||||
| Type | JZ-05 | JZ-08 | JZ-10 | JZ-12 |
| Raw material | Waste tyre/ rubber | |||
| Capacity/ day | 5t | 8t | 10t | 12t |
| Inlet diameter | 1200mm | |||
| Working type | Batch-type | |||
| Covering area | 150m² | 160m² | 180m² | 200m² |
| Laber force | 2~3 | |||
| Reactor | D2200*L5000 | D2200*L6600 | D2600*L6600 | D2800*L6600 |
| Type of cooling | Water cooling | |||
| Weight | 24t | 28t | 31t | 33t |
| Running time | 16-18h | |||
| Carbon discharge | Slagging automaticlly | |||
| Remark | It is can be customized according to customer's actual nees. | |||
Flow chart of waste tyre recycling machine
Main parts of waste tyre recycling machine:
Reactor, cooling system, dedusting system, carbon black discharge system, security system.

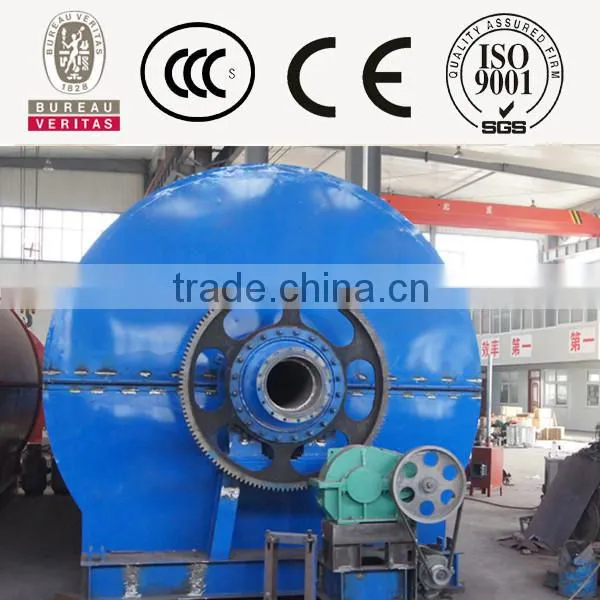

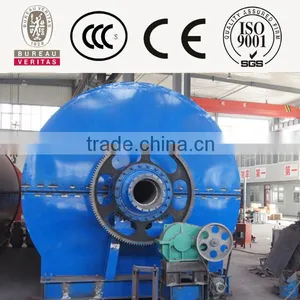

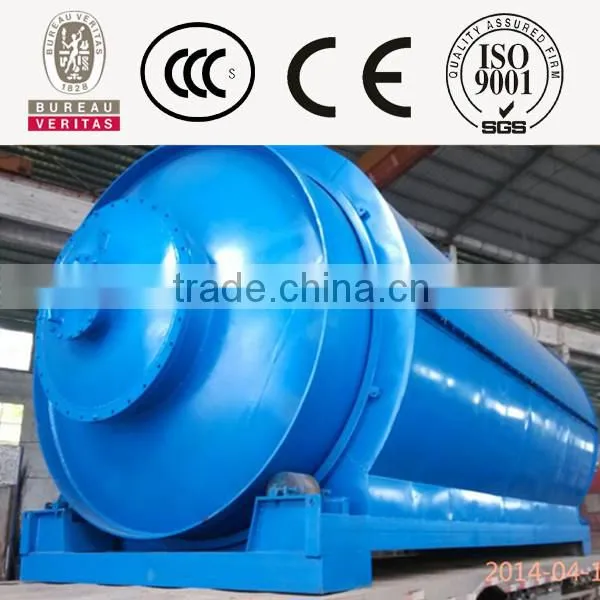

1) The reactor
The reactor inside is made up of insulation cotton, refractory cement, so that can ensure the heat
preservation effect.
Advantages:
• Gear can ensure the reactor stable so that more safety.
• Rollers material is boiler plate, so they have long lifetime.
• Reducer can keep the reactor at he normal speed to keep stable and safety.
2) Dedusting system
Include desulfurization deduster, water film cyclone, spraying de-dusting, chimney, draft fan.
Advantages:
• Domestic initiative, three dust removal system.
• High-pressure nozzle made of stainless steel or copper alloy, longer life of dust removal
system.
• No waste water discharge, the water only used for recycling, along with evaporation only
need to increase, not let out.

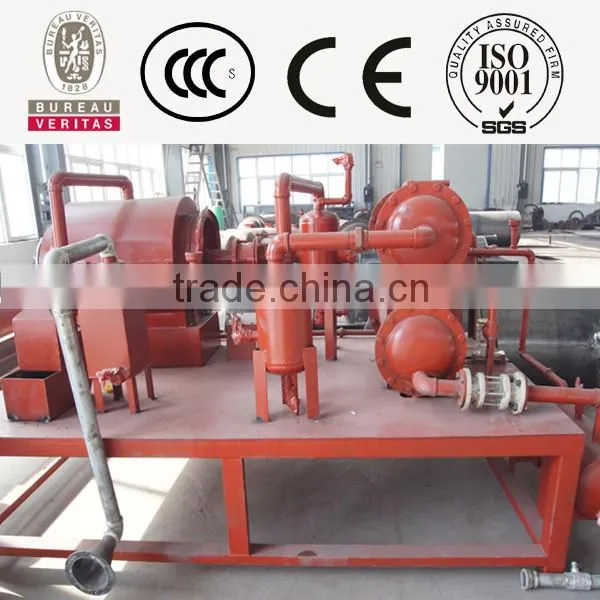

3) Cooling system
Include cooling pool system, cooling tower and condenser system.
Advantages:
• Inside each condenser has many pieces gas pipe, cooling area can reach 40m²;
the pipe is thin so it can cooled quickly; looks more beautiful.
• Disk flow condenser: can enlarge the cooling area and cooling time; can improve oil quality and yield.
4) Carbon black discharge system
Advantages:
• With the help of the screw conveyor, the carbon black can be discharged at high
temperature, shorten the discharging time.
• The carbon black can be storage in the carbon tank, so it more environmental and safety.
• It can be discharge automatically, safe and save labor force.
5) The security system
Include safety valves, alarm ring, water seal, auto decreasing pressure device, oil-water
separator, anti-back fire, negative pressure device.
Advantages:
The water seal make the waste gas to the furnace, so it ill be more safe. And the waste
gas will be as fuel so it will also save energy.
| Output of waste tire pyrolysis plant | |||
| Fuel oil | Carbon black | Steel wire | Gas |
| 40%-45% | 30%-35% | 10%-15% | 10%-12% |
Installation & Commission of waste tire pyrolysis plant
1) Foundation drawings will be provided after making the order.
2) Engineers provided overseas installation and commissioning.
3) Trainings and other essential basic instructions will be provided.
Tips for You in Setting Up the waste tire pyrolysis plant
1) 300 square meters (length 20M, Width 15M) is enough for the equipment itself.
2) Installation site suggest in outdoors with good ventilation and safety facilities.
After-sale service
1) We will send engineer to your site to install machine, train your workers and do
commissioning.
2) We offer one year warranty for our products.
