Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > Din1629 St37 Cold Rolled Seamless Steel Pipe

Din1629 St37 Cold Rolled Seamless Steel Pipe

Din1629 St37 Cold Rolled Seamless Steel Pipe thumbnail-3

Din1629 St37 Cold Rolled Seamless Steel Pipe photo-1

Din1629 St37 Cold Rolled Seamless Steel Pipe photo-2

Din1629 St37 Cold Rolled Seamless Steel Pipe photo-3

US$ 700 - 900 MOQ: 5 Metric Tons

Key Specifications

Get Latest Price

Standard:

Grade:

Thickness:

2, 30

Contact Supplier Request Quote Chat Now

Yantai Xinpeng Steel Pipe Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Thickness 2, 30

Section Shape Round

Outer Diameter 30 - 250 mm

Place of Origin Shandong, China

Secondary Or Not Non-secondary

Application Hydraulic Pipe

Technique Cold Drawn

Certification Other, ISO9001:2008

Surface Treatment Other, honed/Surface polished

Alloy Or Not Non-alloy

Din1629 st37 cold rolled seamless steel pipe

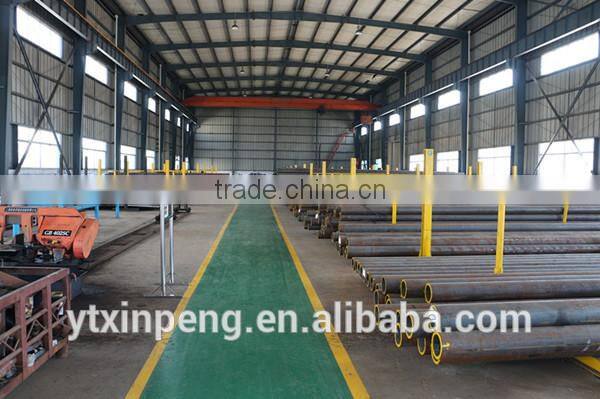

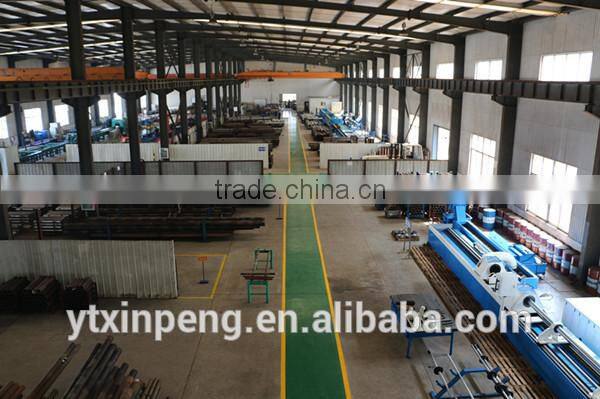

Company Information:

Yantai Xinpeng steel pipe co,.ltd. top 5 manufacture on the precision steel tube in China, We establish in 1992, from 2002 we begin to work on the hydraulic cylinder tube . We sell the seamless tube, agency of marcegaglia’s Dom tube. We have passed ISO9001:2008 since 2010. Xinpeng Persons all trust Honesty, credit is more important than business itself. We have cooperate with many clients from all over the world, Dongyang Corporation, Lonkon, China Heavy Truck, New star, Faster are all our clients, Xinpeng know technology is and cost reeducation is very important to China’s enterprise. Our main products is cold drawn/rolled steel tube, can do anneal by ourselves, honing and Srb process we all can work also. Any need, welcome to give us inquiry, we will give our best quotation.

Introduction:

Hydraulic cylinder tube st52 din2391 is a kind of after cold rolling processing of a kind of high precision steel tube, full name cold rolled precision seamless steel tube. Precision seamless steel tube wall inside and outside the precision seamless steel pipe seamless steel pipe without oxidation layers, under high pressure without lea, high precision, high finish, cold bending deformation, flaring, flattening without cracks,etc, it is mainly used to produce pneumatic or hydraulic components products, such as a cylinder or cylinder, are made seamless tube. The chemical composition of precision seamless steel tube with carbon sulfur C,Si, Mn, S, P, Cr.

The difference between precision steel pipe and seamless pipe:

1. The seamless steel tube with obvious difference is that dimensional accuracy can be up to 0.1mm.2. High precision steel pipe diameter surface finish, the customer without processing can be used directly and ordinary seamless steel tube to the customer and lather, polishing processing.

Features:

hydraulic cylinder tube st52 din2391 inside and outside the wall without oxidation layer, under high pressure, no leakage, high precision, high finish, cold bending deformation, flaring, flattening without cracks, surface rust proofing

1. The smaller outer diameter

2. High precision to do small batch production

3. Cold drawn finished products of high precision, good surface quality

4. The steel pipe transverse area is more complex

5. Steel pipe is superior performance, dense metal

Specification:

Standard	DIN2391, DIN2445, EN10305, GB/T 3639, GB 8713
Grade	ST35(E235), ST37, ST24(E255), ST52(E355), 10#, 20#, 35#, 45#
O.D.	4.0MM-400MM
W.T.	0.5MM-18MM
Surface Treatment	bare, varnished, oiled, anti-corrosion coating as request
Packing	1. bundle packing 2. marking as per customer's requests 3. paint on the pipe as per customer request 4. pipe caps as customer request
Condition of Delivery	1. NBK(+N) after cold forming, eventually above phase transition point, in a protective atmosphere of annealing oxidation medium 2. GBK(+A) after cold forming, annealing in non oxidizing medium protective gas 3. BK(+C) the final heat treatment after cold forming, therefore small steel pipe plastically, the plastically degree does not guarantee 4. BKW(+LC) after final heat treatment, a tiny cold drawing deformation, continue again when machining steel pipe allowed inside certain limits cold deformation(bending, flaring) 5. BKS(+SR) have a stress relief after cold forming, heat treatment, steel pipe can be carried out within a certain limit in the appropriate processing again

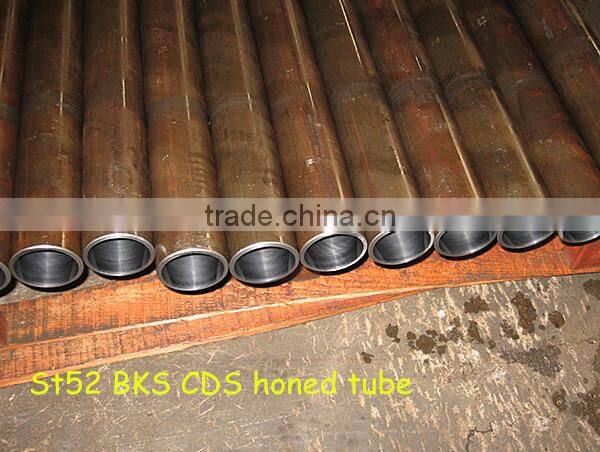

Hydraulic cylinder tube st52 din2391

Process

Some Dimension:

OD x WT	OD x WT	OD x WT	OD x WT
48*31.75	98*80	154*130	45*35
45*30	100*85	137*115	35*25
25*19	121*100	94*80	125*100
50*40	120*100	90*80	90*70
40*30	140*120	80*70	100*70
65*50	123*105	111*95	120*100
70*57	146*125	50.5*44.5	31*25
48*40	165*140	158*135	76*55
58*50	176*150	160*135	77*57
60*50	194*160	149*125	77*59
70*50	30*25	42.5*31	Other size can work
95*80	128*110	190*160	Other size can work

OD	GB/T3639(GB8713)	DIN2391(EN10305)	Our Tolerance	Best Quality
4-30mm	±0.10mm	±0.08mm	±0.05mm	±0.02mm
31-40mm	±0.15mm	±0.15mm	±0.05mm	±0.03mm
41-50mm	±0.20mm	±0.20mm	±0.05mm	±0.03mm
51-60mm	±0.25mm	±0.25mm	±0.08mm	±0.03mm
61-70mm	±0.30mm	±0.30mm	±0.10mm	±0.05mm
71-160mm	±0.30mm	±0.30mm	±0.10mm	±0.05mm
Tolerance in WT	±0.12mm	±0.10mm	±0.05mm	±0.03mm

Process	Diameter	Length	Precision	Inner Hole Roughness
Cold Rolled	30-100mm	≤12 m	H8-H10	0.4-1.6
Cold Draw	30-250mm	≤12 m	H8-H10	0.8-1.6
Honing	40-500mm	≤12 m	H8-H9	0.4-0.8
Rolling	40-400mm	≤7 m	H8	0.4

Inner Diameter	H8	H9	H10
30mm	±0.033	±0.052	±0.084	5-30mm
30-50mm	±0.039	±0.062	±0.100	±0.080
50-80mm	±0.046	±0.074	±0.120
80-120mm	±0.054	±0.087	±0.140
120-180mm	±0.063	±0.100	±0.160
180-250mm	±0.072	±0.115	±0.185
250-315mm	±0.081	±0.130	±0.210
315-400mm	±0.089	±0.140	±0.230

Finished products

Mechanical Properties:

Condition	Material Grade	T.S (Mpa)	Y.S (MPa)	Elongation (%)
BKS	ST35 (10#)	≥420	≥315	≥14
BKS	ST45(20#)	≥520	≥375	≥12
BKS	ST52(16Mn)	≥580	≥420	≥10
GBK	ST35 (10#)	≥315		≥35
GBK	ST45(20#)	≥390		≥32
GBK	ST52(16Mn)	≥490		≥30
NBK	ST35 (10#)	340-470	≥235	≥32
NBK	ST45(20#)	440-570	≥255	≥30
NBK	ST52(16Mn)	490-630	≥335	≥28

Application: hydraulic cylinder tube st52 din2391 widely used in hydraulic system with precision steel tube, injection molding machine with precision steel tube, hydraulic press with precision steel tube, shipbuilding with steel tube, EVA foaming, hydraulic machinery, hydraulic cutting machine, shoe making machinery, hydraulic equipment, high pressure tubing, hydraulic tubing, card sets of joints, pipe joints, rubber machinery, forging machinery, casting machinery, engineering machinery, automotive high pressure steel pipe concrete pump, sanitation vehicle, automobile industry, shipbuilding industry, metal processing, military industry, diesel engine, the internal combustion engine, air compressor, construction machinery, forestry machinery, etc.
