Home > Products > Flat Packed House > CH-LA021 20ft Container Office and 40ft Container Office Design
CH-LA021 20ft Container Office and 40ft Container Office Design
- xingang tianjin
- T/T Credit Card PayPal
You May Like
-
CH-LA018 China Modular Home Iso Prefabricated Modular Home
-
CH-LA020 China Made Flat Pack Office Container Price
-
CH-LA019 High Quality China Flat Pack Homes for Sale
-
CH-LA057 Prefab Cheap Mobile Homes Prices
-
CH-LA059 China Low Cost Flat Pack Homes for Sale
-
CH-LA060 Mobile Flat Pack Container House on
Product Details
| Place of Origin | Tianjin, China | Brand Name | WALMAX | |
| Model Number | CH-LA021 container office design | Material | Sandwich Panel | |
| Use | Carport, Hotel, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant, school, refugee house |
Product Description
CH-LA021 20ft container office and 40ft container office design
20ft container office and 40ft container office design
Different from normal brick or cement construction, our CH-LA021 container office design adopts steel structure as skeleton and sandwich panel as insulation. So, our 20ft container office and 40ft container office design has stable structure to withstand heavy mechanical impact and good thermal insulation to keep room temperature. All the components of our 20ft container office and 40ft container office are pre-made in factory and will be flat packed for the sake of transportation. It’s low cost, easy and fast to install, convenient to move, energy saving and environment friendly. So our 20ft container office and 40ft container office designs are widely accepted by many companies for temporary or long term use.

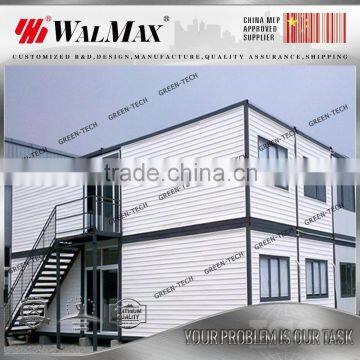

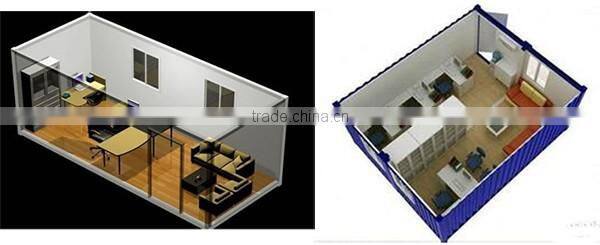

CH-LA021 20ft container office and 40ft container office design

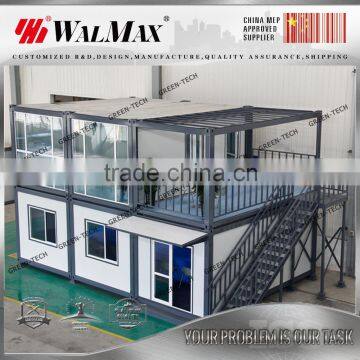

CH-LA021 20ft container office and 40ft container office design
Specification of CH-LA021 20ft container office and 40ft container office design
Sizes of our CH-LA021 container office design | ||||
20ft container office design | ||||
Model | External Size (L*W*H) | Thickness of insulation(mm) | Internal Size (L*W*H) | Weight |
20FT-50 | 6058*2438*2896 | 50 | 5890*2260*2600 | 2000-2500KG |
20FT-75 | 6058*2438*2896 | 75 | 5840*2210*2550 | |
20FT-100 | 6058*2438*2896 | 100 | 5790*2160*2500 | |
40ft container office design | ||||
Model | External Size (L*W*H) | Thickness of insulation(mm) | Internal Size (L*W*H) | Weight |
40FT-50 | 12116*2438*2896 | 50 | 11950*2260*2600 | 3500-4500KG |
40FT-75 | 12116*2438*2896 | 75 | 11900*2210*2550 | |
40FT-100 | 12116*2438*2896 | 100 | 11850*2160*2500 | |
Material Details of CH-LA021 container office design | ||||
Steel framework | Top beam frame | Q235, 4mm galvanized channel steel, color-painted | ||
Base beam frame | ||||
Column | ||||
Purlin | Q235, 3mm rectangle steel pipe | |||
Wall | External wall panel | 50/75/100mm PU/EPS/rockwool sandwich pannel | ||
Internal wall panel | ||||
Decorative board | PVC | |||
Roof & Ceiling | Roof | Color-painted steel sheet | ||
Insulation layer | 50/75/100mm PU/EPS/rockwool sandwich pannel | |||
Ceiling | PVC panel or Gypsum board | |||
Floor | Insulation layer | 50/75/100mm PU/EPS/rockwool sandwich pannel | ||
Decorative board | PVC,bamboo plywood or floor leather | |||
Door & Window | External door | Sandwich door with aluminum frame/security door | ||
Inner door | Sandwich door with aluminum frame/PVC door | |||
Window | PVC sliding window/Aluminum alloy window, shutter | |||
Optional system | Drainage system | 16-20mm diameter PVC pipe, Provide design and installation | ||
Electric system | Provide design and installation | |||
Exhaust fan or air exchange hole | steel or PVC, 250mm*250mm | |||
Performances of CH-LA021 20ft container office and 40ft container office design
Roof bearing load | 0.5KN/m2 |
Floor bearing load | 2.0KN/m2 |
Wind resistance | 120km/h |
Seismic resistance | 8-Magnitude |
Fire resistance | B1 Grade |
Temperature range | -40 to 50 oC |
Thermal conductivity | <0.036W/(m×K) |
Noise reduction | 40db |
Lifespan | Up to 20 years |

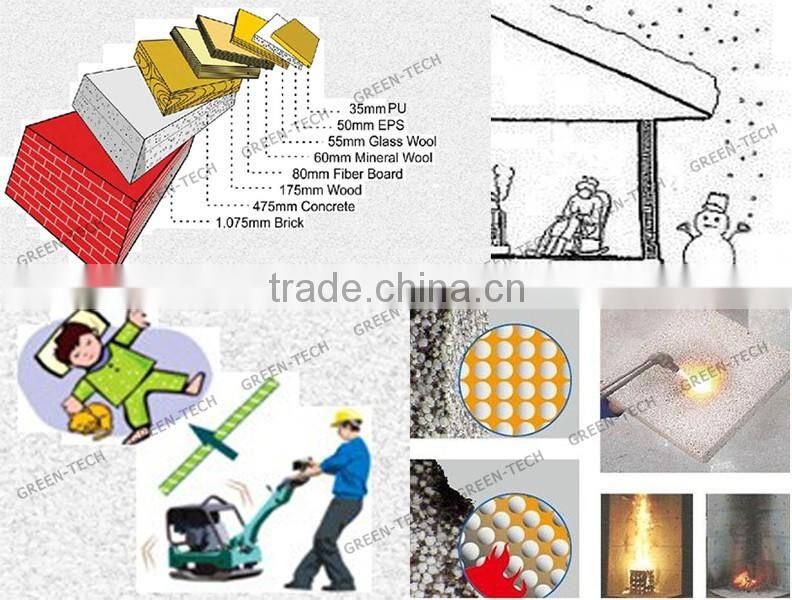

Our CH-LA021 container office design uses light steel structure as skeleton. Although with a light weight, our 20ft container office and 40ft container office are strong enough to stand up to 8-magnitude earthquake and 11-level wind. The sandwich panel wall is filled with good heat insulating material (EPS, PU or rock wool), which is also known for its good fireproof performance. The thermal conductivity is lower than 0.036W/(m×K), the fire resistance is B1 grade and the noise reduction can reach 40db. Thus can make our container office design safe and comfortable.

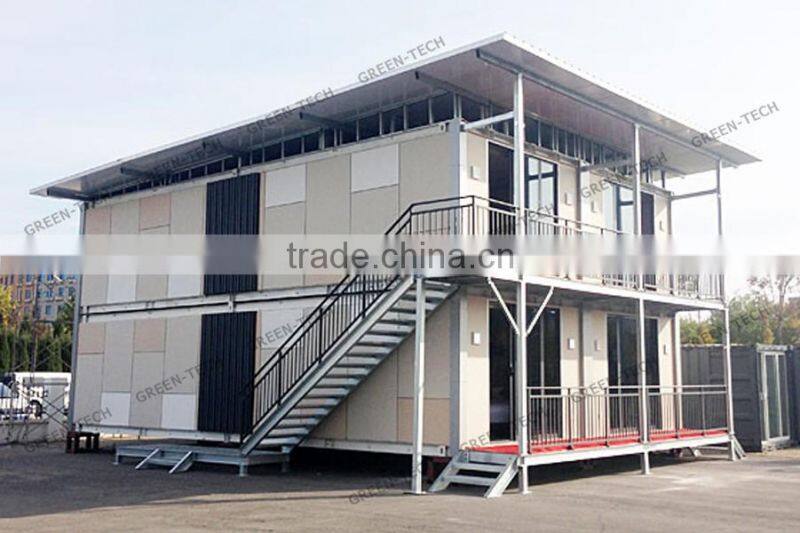

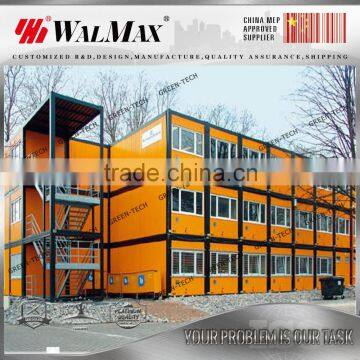

CH-LA021 20ft container office and 40ft container office design

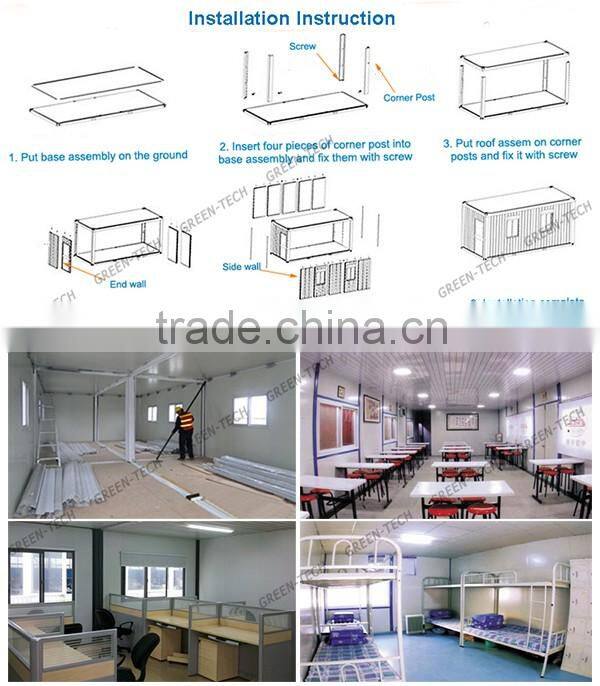

Installation
CH-LA021 20ft container office and 40ft container office design

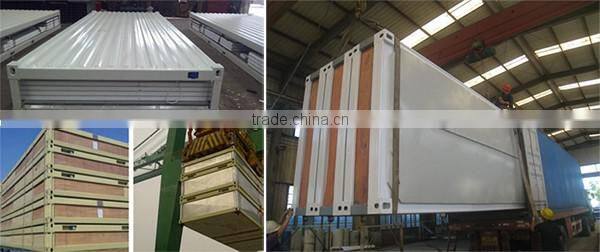

Package & Delivery
CH-LA021 20ft container office and 40ft container office design
Our services
1. Professional technical support: Our design team will give you technical advices due to the climate where the container office is used.
2. Low cost: Modern enterprise management mechanism and professional production team ensure the price competitiveness.
3. Standard quality control: Strict quality management system from raw materials to final products guarantees the high quality of 20ft container office and 40ft container office.
4. Shipment: Our shipment service is to delivery cargoes in an efficient and secure way. We make every effort to ensure the optimal cargo arrangement and the lowest transportation cost.
5. All-around service: Professional sales team with more than 10 years’ experience makes the whole procedure high efficient and safe, and promises a considerate after-sales service.

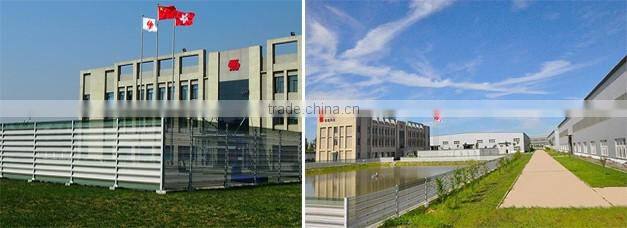

Green (Tianjin) Technology Development Co., Ltd. locates in Baodi Jiuyuan Industrial Park with total investment 25 million U.S. dollar. Our company has always been focusing on environment improving, energy saving products, steel further processing products and corresponding all-around services. Our company owns the qualification of Environmental Engineering Contractor (Grade Ⅲ), Steel Structure Engineering Contractor (Grade Ⅲ). We have passed the authorization and audit of ISO system and possess more than 20 patents.
Contact:
CH-LA021 20ft container office and 40ft container office design.
Any further information, please directly contact us!
Contact Us
- Green (Tianjin) Technology Development Co., Ltd.
- Contact nameAda Feng Chat Now
- Phone86- 22-24109362
- AddressSouth Of Xingbao Road, West Of Zhenye Road, Jiuyuan Industrial Park
