Help CenterBlow Molding Machine
Related Products
Specifications
1.Full- automatic blow molding machine2.capacity from 10-1500ml
3.Frequency control motor speed

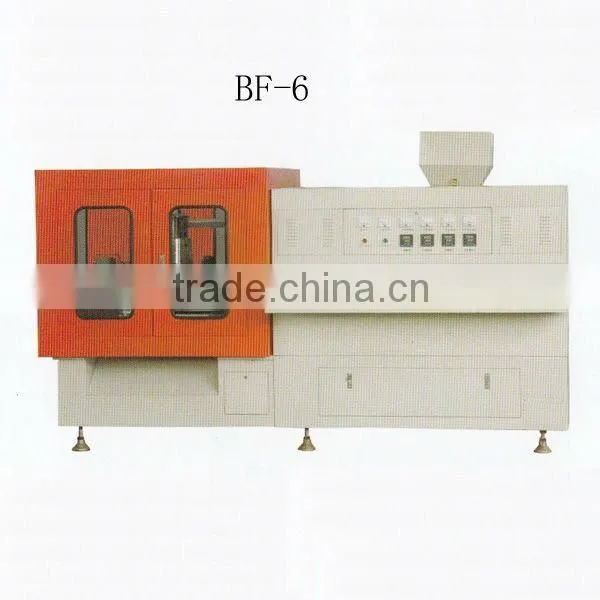

BF-6 Full- automatic blow molding machine model
1.Full- automatic blow molding machine
2.capacity from 10-1500ml
3.Frequency control motor speed
This machine can be used to make plastic package which is blew form side, such as bottles for medicine, drink and cosmetics. It adopts screw extruding blow molding process which is frequency and automatic temperature controlled. As a combination of electric equipment, pneumatic, device, and machinery, it is stable in performance, easy to operate, and suitable for manual production, three patented techniques are used on this machine which is optional to install automatic tailing device, automatic net changer, and automatic- cutting device.
Parameters |
4 station combine model 45 |
6 station combine model 55 |
8 station combine model 65 |
Max. Volume of bottle |
500 |
800 |
1500 |
Max. diameter of bottle |
7 |
9 |
10 |
Size of the mould |
120*120*300 |
120*120*300 |
120*120*300 |
Screw diameter |
45/55 |
55/65 |
65/75 |
Screw L/D ratio |
|
25:1 |
|
Motor power |
5.5/7.5 |
7.5/11 |
11/15 |
Heating power |
3 |
5 |
8 |
Air composition |
|
0.4 |
|
Plasticizing capacity |
25/40 |
40/60 |
60/75 |
Weight |
1500 |
1800 |
2000 |
Machine size |
3400*1600*1740 |
3600*1700*1800 |
3800*1750*1850 |
Applicable raw material |
PE/PP/PVC |
||
Speed regulating method |
FREQUENCY CONTROL OFMOTOR SPEED |
||
Theoretical output |
200-8000 |
||
