Help CenterCZ-A-8 Liquid Filling Machine
Related Products
Specifications
liquid filling machine1.It used for various kinds of bag filling and sealing
2.Touch screen
3.PLC computer system
liquid filling machine

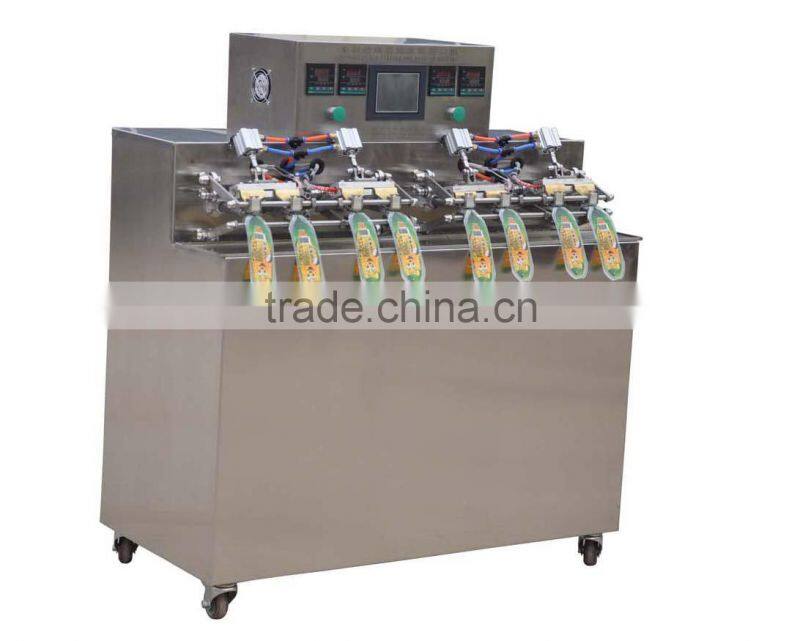

CZ-A-8 forming bag fill seal machine, packing machine
Main specification (one worker operate four nozzles, for example)
| Power | 1.5-1.9KW |
| Speed | 700-2600pouch/hour |
| Air pressure | 0.2-0.5m3/min, 0.6-0.8Mpa |
| Capacity | 50-1000ml/pouch(Can be adjusted) |
| Voltage | 220V 50HZ |
| Machine size | 1150*560*1280(mm) |
1.It used for various kinds of bag filling and sealing, for liquid package such as milk,soybean milk,yogurt,jelly,fruit juice,beverage,soy sauce,vinegar,wine, cooking oil,detergents,liquid chenical and semi-fluid etc. The machine’s performance have gotten high reputation from our clients.
2.Touch screen.
3.PLC computer system.
4.Chinese and English display.
5.Automatic pneumatic component control.
6.Push botton operation.through the button to change the number on the touch screen to adjust the measure, simple operation and accurate measurement.
7.Adopt a special pressure filling pump feed, eliminating the notes plug pump
feeding with low efficiency and big air consumption disadvantages.
8.For difficult to seal forming bag, except the conventional temperature control
system,we also add time adjustment system.
9.Machine run smoothly with low failure rate.
10.Easy to operate and maintenance.
11.Nozzles adopt special design, Ensure the sealing consistency.
