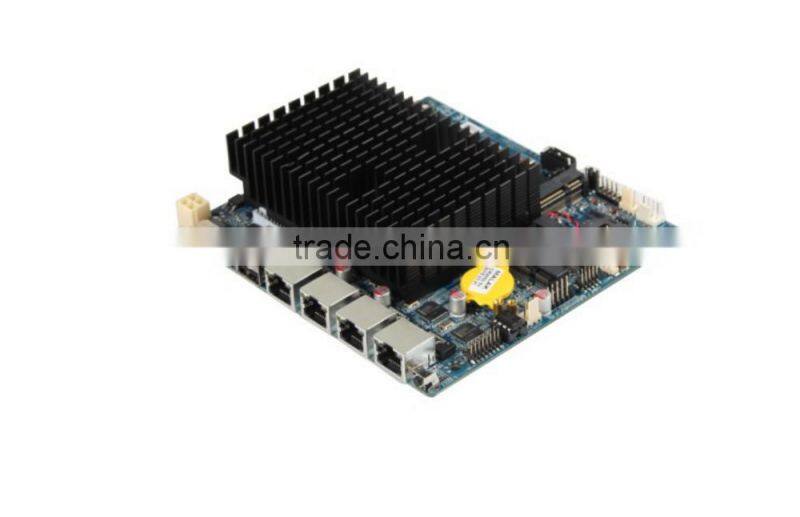

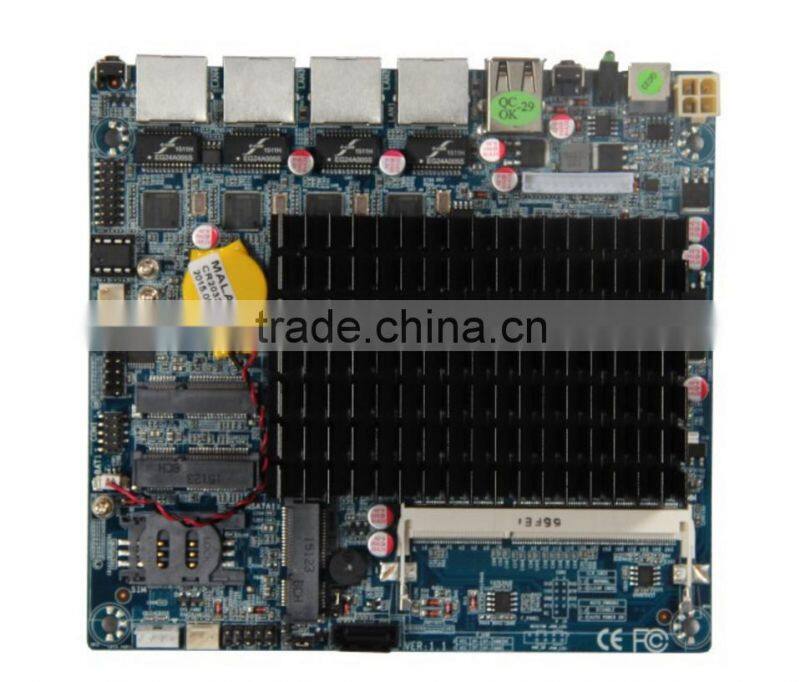

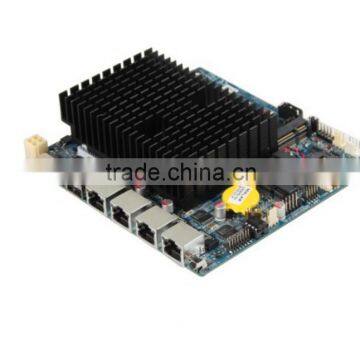

4 Lan Fanless Intel Atom D525 Network Security Firewall Motherboard

4 Lan Fanless Intel Atom D525 Network Security Firewall Motherboard thumbnail-1
4 Lan Fanless Intel Atom D525 Network Security Firewall Motherboard thumbnail-2

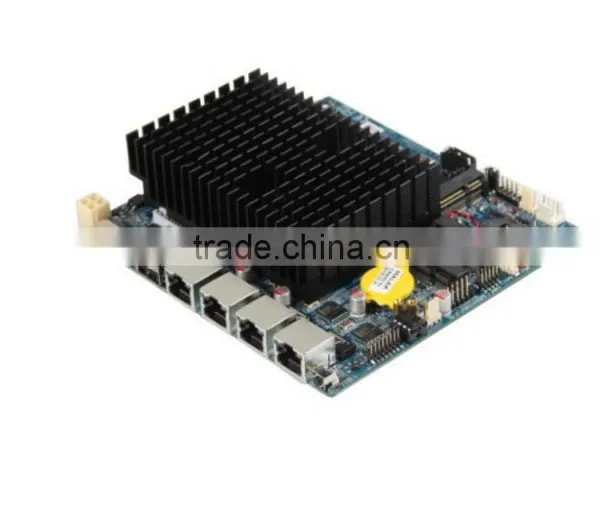

4 Lan Fanless Intel Atom D525 Network Security Firewall Motherboard photo-1
4 Lan Fanless Intel Atom D525 Network Security Firewall Motherboard photo-2
US$ 1 - 90 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Embedded Industrial Motherboard
Brand Name:
hcsmart
Contact Supplier Request Quote Chat Now
Shenzhen Hcsmart Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Embedded Industrial Motherboard
Brand Name hcsmart
Model Number HC-D5254L
Place of Origin Guangdong, China

4 Lan fanless Intel atom D525 network security firewall motherboard

 4 Lan fanless Intel atom D525 network security firewall motherboard

 4 Lan fanless Intel atom D525 network security firewall motherboard4 Lan fanless Intel atom D525 network security firewall motherboard





Product Description







Processor

   CPU

   Intel Atom D525

   Frequency

   Dual core 1.8Ghz

   Chipset

   ICH8M

   TDP



Memory

   Slot

   1*SO-DIMM,DDR3 800 MHz Memory

   capacity

   MAX to 4GB

 Storage



   connector

   1*SATA2.0

   1*MSATA

   1*MINI PCIE (For WIFI)  1*SIM 1*CF

Display

   chipset

   CPU integrated HD Graphics

   output

   VGA header

LAN

   chipset

   4*Intel 82583 1000M

   connector

   4*RJ45

Audio

   chipset



   connector















I/O

   com

   1*COM header

   Lpt



   USB

   2*USB2.0,1*USB2.0 header (can expand to 2*USB2.0)

   GPIO











   Header



1*PWR

1*Reset

1*LED

1*USB 2.0 header

1*JP1

1*F-panel

1*12PIN VGA

1*Sata-PWR

1*4pin DC

1*CLR-CMOS jumper

1*AUTO-ON jumper

2*SYS-FAN



Power

   power supply

   1*DC IN 12V/5A  1*4PIN ATX

OS

   Version

   Win7/Win8/Linux

BIOS



   AMI BIOS

 working environment

   working temp

   -10~60℃

   storage temp

   -10~70℃

   relative humidity

   5%-95% non-condensing

Form factor

   size

    150*140mm



Packaging & Shipping

  Carton box packaging, shipped by door to door express (Fedex, Dhl,Ups,Tnt etc,) or air

Our Services

  We can give you 1 year warranty and 1% RMA,

To assure the quality, we usually do full test befor shippment to avoid the quality issue

24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.



Company Information

 4 Lan fanless Intel atom D525 network security firewall motherboard

FAQ

1.What is your payment terms ?
T/T, Paypal ,westunion ,money gram for sample or small order

2.What is your lead time?
3-5 working days after receipt of payment

3.Do you have warranty about your products?
Yes, 1 year

4. Can you do customlized serive ?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM serive are available



Application

4 Lan fanless Intel atom D525 network security firewall motherboard
