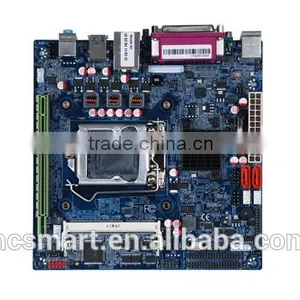

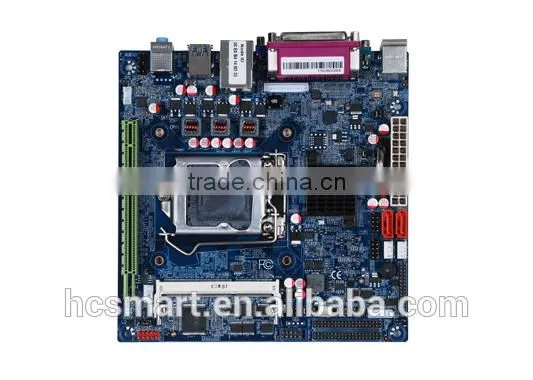

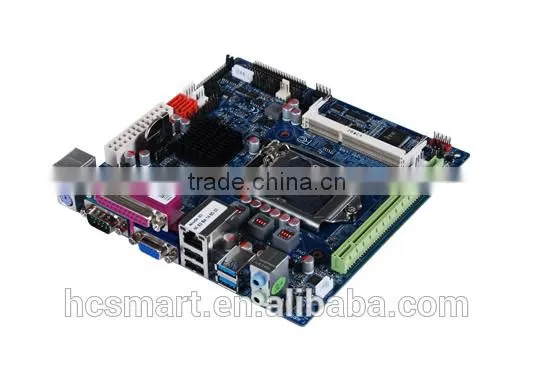

H81 Lga1150 ATM machine lvds industrial mini itx motherboard with sim slot
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
Product Details
Products Status: | Stock | Type: | Embedded Industrial Motherboard | Brand Name: | hcsmart |
Model Number: | HC-MH81P10CAT | Place of Origin: | Guangdong, China |
Product Description
support Intel LGA1150( Haswell ) processor,onboard Intel H81 chipset,VGA,VGAheader ,LVDSheader,Giga Lan,2*SATAⅡ,2*MINI_PCIE(for M_SATAWIFI) ,1*PCIE16X, 1*SIM,10*USB,10*COM.
1.Processor | CPU | support Intel LGA1150( Haswell) processor |
Frequency | depend on cpu | |
Chipset | H81 | |
TDP | depend on cpu | |
2.Memory | Slot | 1*SO-DIMM,DDR3 160013331066MHz Memory |
Capacity | MAX to 8G | |
3.Storage |
Connectors | 2*SATA 2.0 |
1*MSATA | ||
1*MINI-PCIE (For WIFI3G)1*SIM | ||
4.Display | Chipset | depend on cpu |
output | VGA,VGA header,LVDS header | |
5.LAN | chipset | onboard Realtek RTL8111F 1000M |
connectors | 1*Rj45 | |
6.Audio | chipset | onboard Realtek ALC269HD decoding |
connectors | 1*Line-out,1*Mic-in,1*Audio header,1*Speaker header | |
7.IO | com | 10*COM(9*COM header) |
LPT | 1*LPT | |
USB | 2*USB3.0 6*USB2.0 (4*USB2.0 header) | |
PCIE | 1*PCIE 16X | |
Header | 1*6PIN INVERT header 1*F-PANEL headerr 1*AUTO-ON 1*CLR-COMS 1*J-TTL 1*LVDS 2*SATA-PWR 2*COM-SET 1*J-LED header 1*SYS-FAN header 1*CPU-FAN header | |
8.Power | power input | ATX 24PIN |
9.OS | Version | Win7/Win8 /Linux |
10.BIOS |
| AMI BIOS |
11.Working environment | working temp | -10~60℃ |
storage temp | -10~70℃ | |
relative humidity | 5%~95% non-condensing | |
12.Form factor | Size | ATX 170*170mm |
20pcs/carton ,Carton box , shipped by express (Fedex,DHL, UPS,TNT etc )or air ,the cargo can be arrived in 3-7 days
We can give you 1 year warranty and 1% RMA,
To assure the quality, we usually do full test befor shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
1.What is your payment terms ?
T/T, Paypal ,westunion ,money gram for sample or small order
2.What is your lead time?
3-5 working days after receipt of payment
3.Do you have warranty about your products?
Yes, 1 year
4. Can you do customlized serive ?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM serive are available
