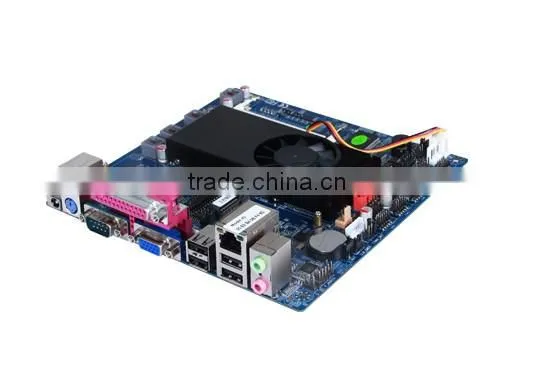

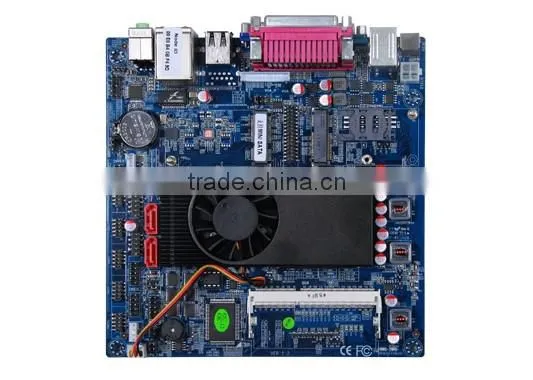

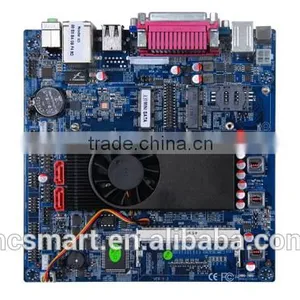

Item Name: C1037U DC 12V Lvds industrial mini itx motherboard
using Intel celeron dual core 1037U ,support 8GB notebook ddr3,VGA+LVDS,support M-SATA/WIFI/3G,6*COM,LPT,Size:170x170mm,12V DC
|
1.Processor |
CPU |
Intel Celeron 1037U |
Frequency |
Dual core 1.8GHZ |
|
Chipset |
NM70 |
|
TDP |
17W |
|
2.Memory |
Slot |
1*SO-DIMM,DDR3 1600[3F6MHz Memory |
capacity |
Max to 8GB |
|
|
3.Storage |
connector |
2*SATA 2.0 |
1*M-SATA | ||
1*MINI-PCIE support WIFI/3G 1*SIM | ||
4.Display |
chipset |
CPU integrated HD Graphics |
connector |
VGA/VGA header /LVDS header |
|
5.LAN |
chipset |
1*Realtek RT8111E 1000M |
connector |
1*RJ45 |
|
6.Audio |
chipset |
1*Realtek ALC662 HD decoding |
connector |
1*line out/1* Mic IN/1* F-AUDIO header/1*SPDIF |
|
|
7.I/O |
COM |
1*COM connector 5*COM header (RS232) |
lpt |
1*LPT connector |
|
USB |
4*USB 2.0 2*USB header(expand to 4*USB) |
|
GPIO |
1*GPIO header |
|
| PS2 | 1*PS2 connector | |
Header |
1*6PIN INVERT 1*PANEL 1*GPIO 1*CLR_CMOS 1*AUTO-ON 1*SYS-FAN
2*SATA-PWR 1*F-PANEL
|
|
8.Power |
power supply |
1*DC IN 12V/5A 1*4PIN ATX |
9.OS |
version |
XP/WIN7/WIN8/LINUX |
10.BIOS |
|
AMI BIOS |
|
ing environment |
working temp |
-10-60℃ |
storage temp |
-10 degree-70 degree |
|
relative humidity |
5%-95% non-condensing |
|
12.Form factor |
size |
MINI ITX 170*170mm |
Carton box 20pcs/carton for C1037U DC 12V Lvds industrial mini itx motherboard
shipped by door to door express (Fedex,DHL,UPS.TNT,etc) or air
We can give you 1 year warranty and 1% RMA
To assure the quality, we usually do full test befor shippment to avoid the quality issue
24*7 hotline for inquiry, if you have any questions about our products, you can contact us any time.
We are a professional high-tech developer and manufacturer of embedded (X86 and Arm Platform ) industrial computer motherboard and IPC system in China, has full product lines covering Mini-itx motherboard, thin client, panel pc, firewall, computer parts and etc. The products is wildly used on digital signage, POS machine, multi-media, CCTV, firewall ,intelligent Transportation and banking. Hcsmart has strategic tie-up with Intel & AMD to provide customized and full solution for global clients.
1.What is your payment terms ?
T/T Paypal westunion money gram ect.
2.What is your lead time?
3-5 working days after receipt of payment ,the goods can arrive in 3-7 days
3.Do you have warranty about your products?
Yes, 1 year since shipping date
4. Can you do customlized serive ?
Yes. We can add your logo on our products. or we can design as per your requirements
OEM and ODM serive are available
For more info, just contact us now.
