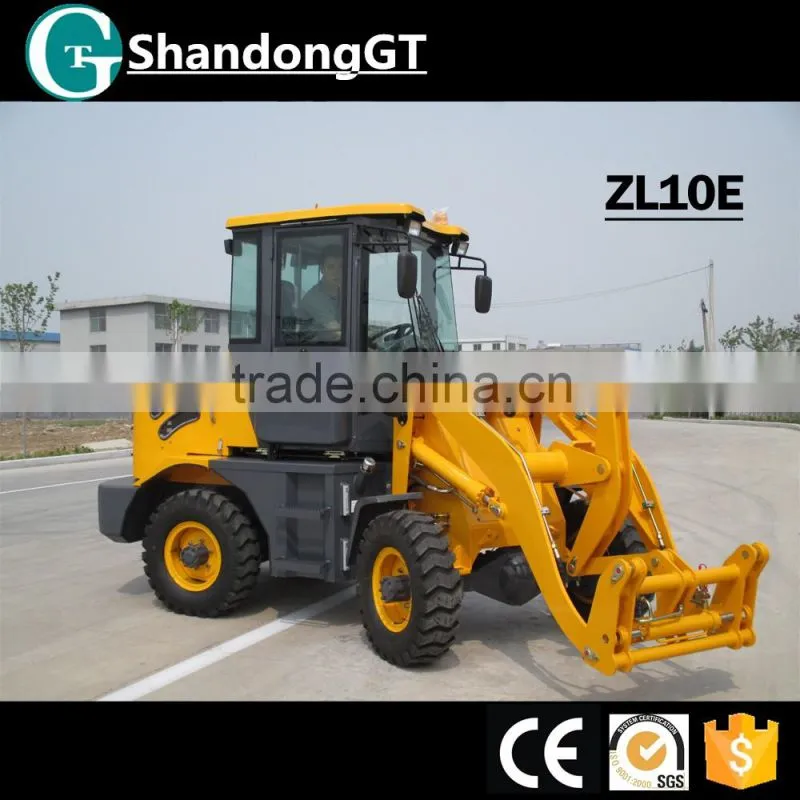

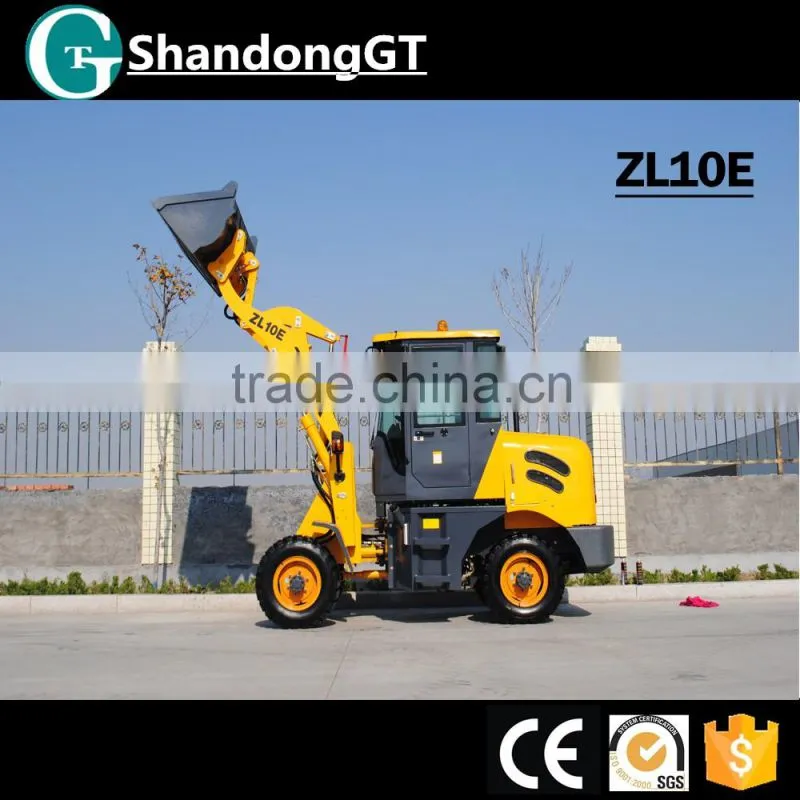

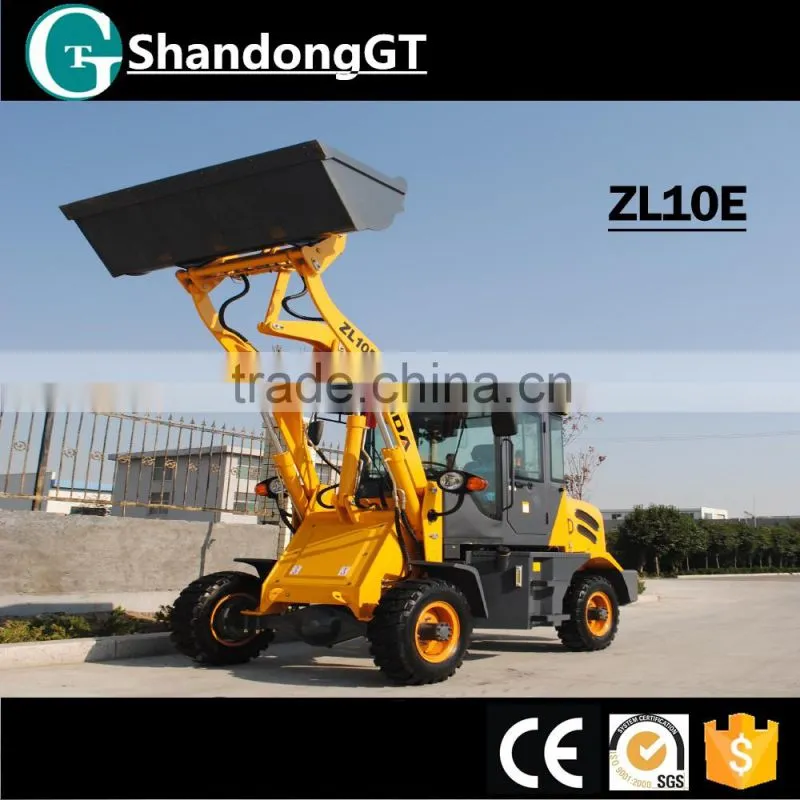

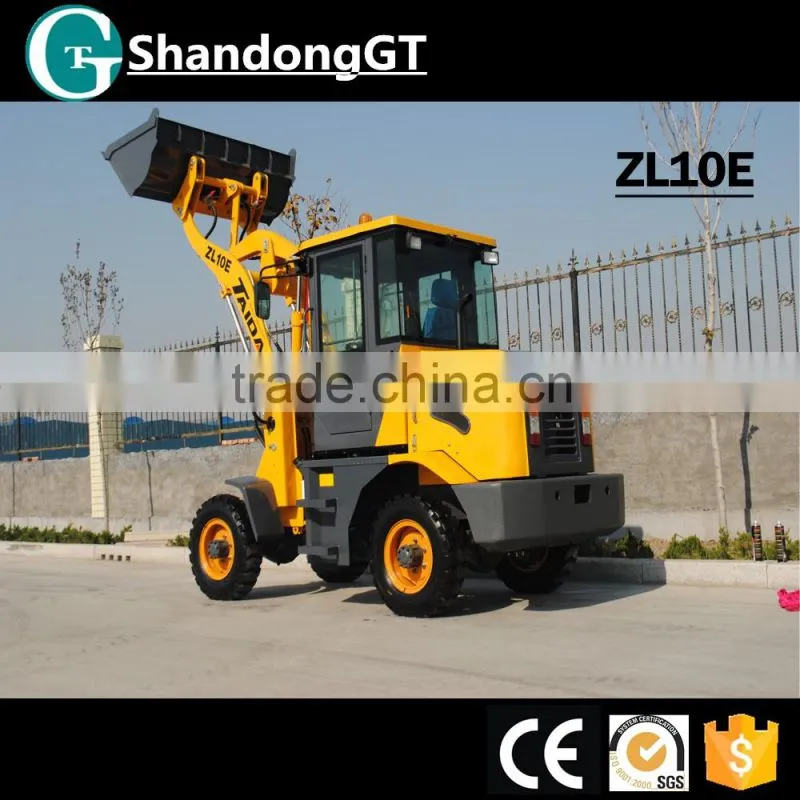

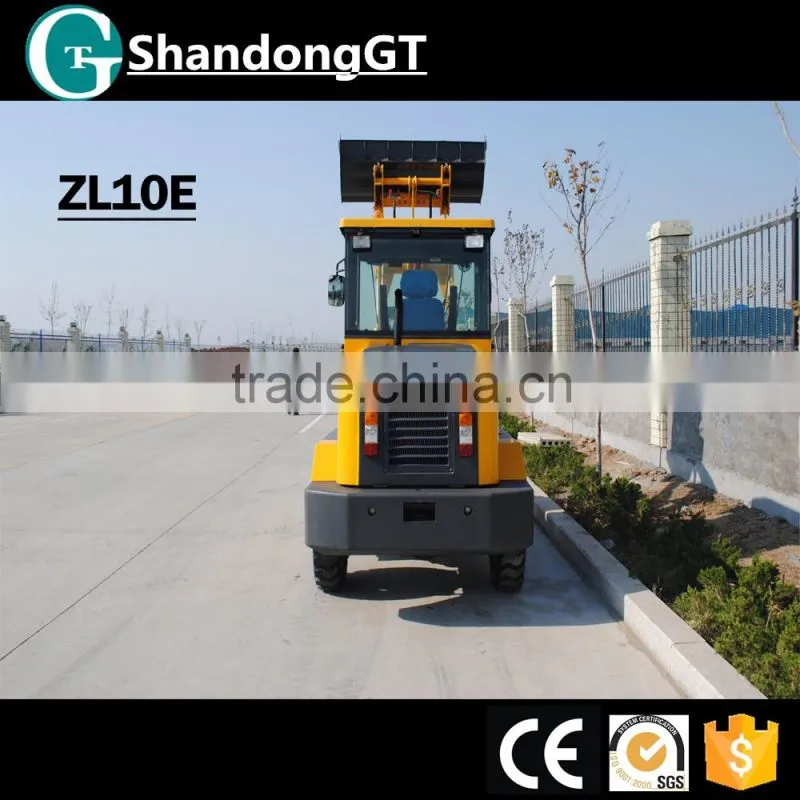

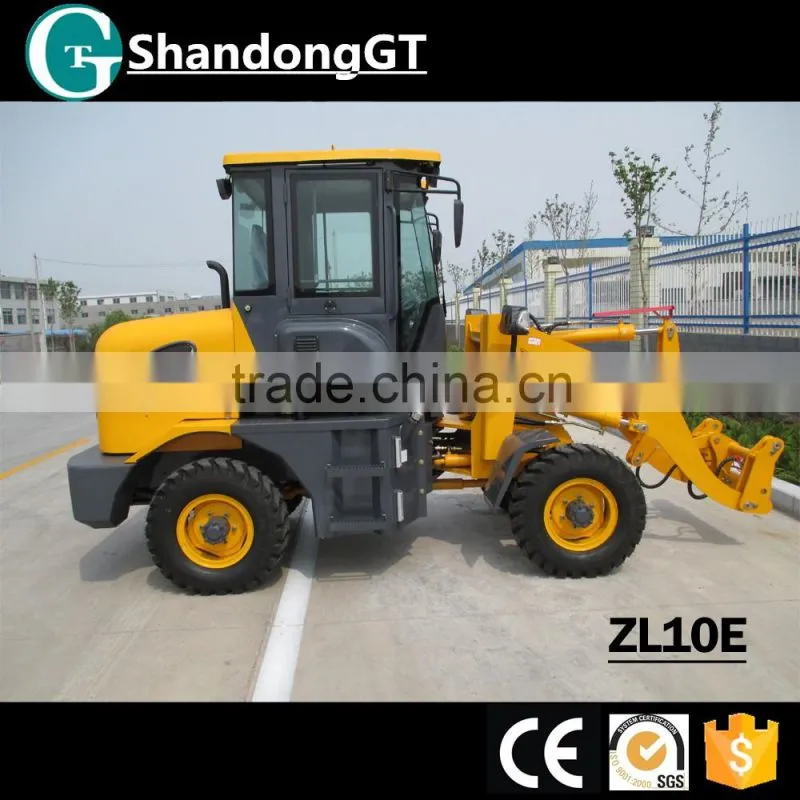

ZL10E mini tractor loader
1.Changchai490 engine, powerful energy, reliable performance;
2.New special design for European market, such as steps as per CE NORMS;
3. Hydraulic transmission, fine workmanship, cheap price but high quality;
4. Integral operation platform, streamline design and humanized operation layout;
5. 35°big turning angle, more flexible than common ones;
6. Wide cabin, large-vision, standard heating and ventilation equipment ;
Performance |
Rated load |
1000kg |
Overall weight |
3300kg |
|
Bucket capacity |
0.5m3 |
|
Maximum breakout force |
31kN |
|
Maximum grade ability |
22° |
|
Maximum dump height |
2622mm |
|
Maximum dump reach |
900mm |
|
Overall dimention(L×W×H) |
4850*1550*2570 |
|
Minimum turning radius(outside of bucket) |
5150mm |
|
Transmission system |
Transmission |
Hydraulic torque converter |
Pump |
/ |
|
Motor |
/ |
|
Speed type |
Variable speed control, two speeds |
|
Inching |
Nope |
|
Drive axles |
Main reducing spiral |
Circular Arc Bevel Gear |
Decelerating mode |
/ |
|
Wheel base |
2125mm |
|
Wheel tread |
1400mm |
|
Minimum ground clearance |
330mm |
|
Engine |
Model |
Changchai485 |
Type |
Vertical, In-line, Water Cooled, 4-Stroke Diesel Engine |
|
No. of cylinder-bore/stroke |
4-90×105 |
|
Rated power |
29kW |
|
Rated speed |
2400r/min |
|
Hydraulic system |
System working pressure |
16.5MPa |
Boom lifting time |
5.7s(Full Loaded) |
|
Total time |
10.2s(Full Loaded) |
|
Control valve |
3-spoon type, hydraulic pilot control |
|
Fuel tank capacity |
80L |
|
Brake system |
Service brake |
Vacuum boost drum brakes on 4 wheels |
Parking brake |
Manual parking brake |
|
Tyre |
Type specification |
8.25-16 |
