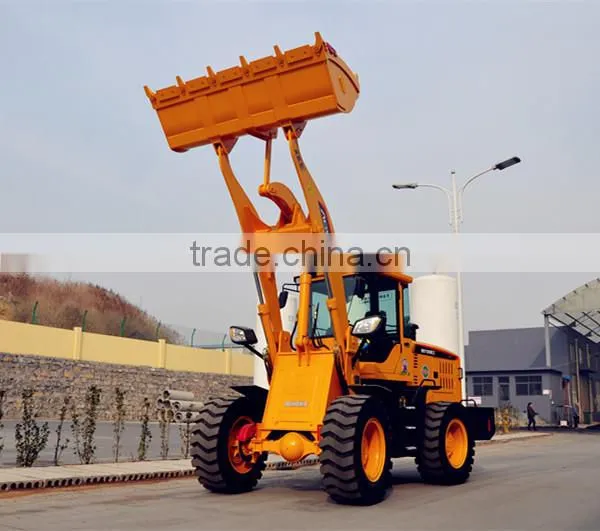

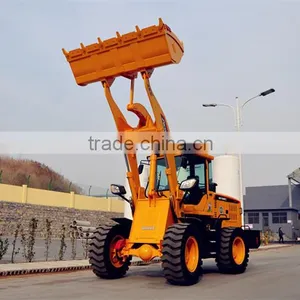

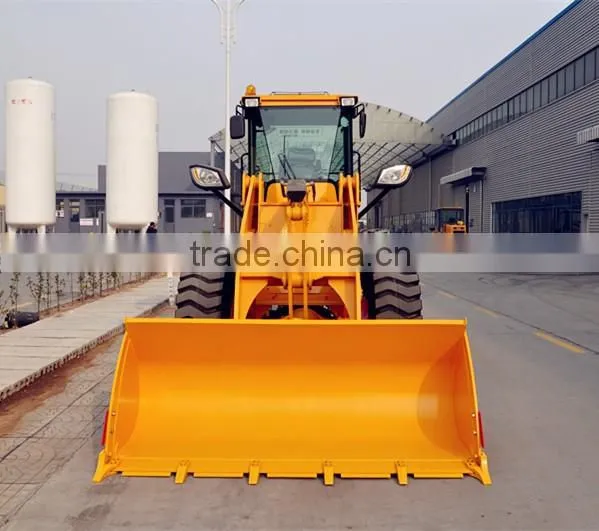

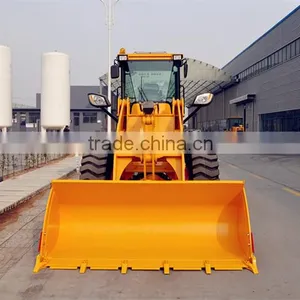

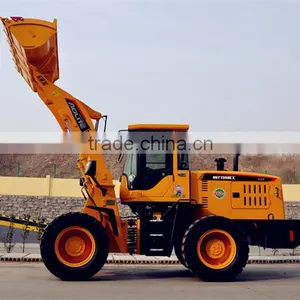

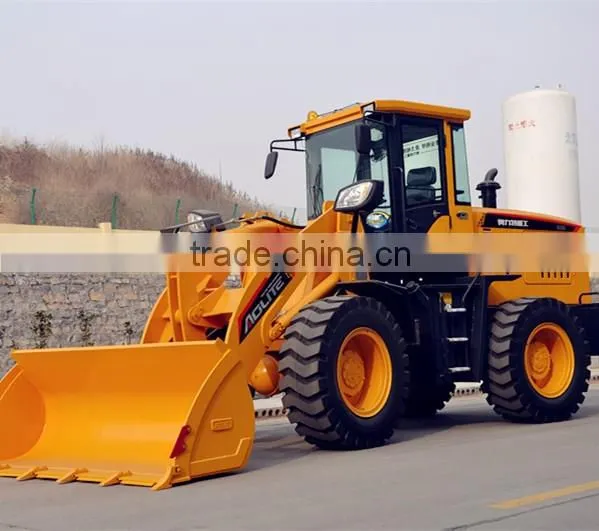

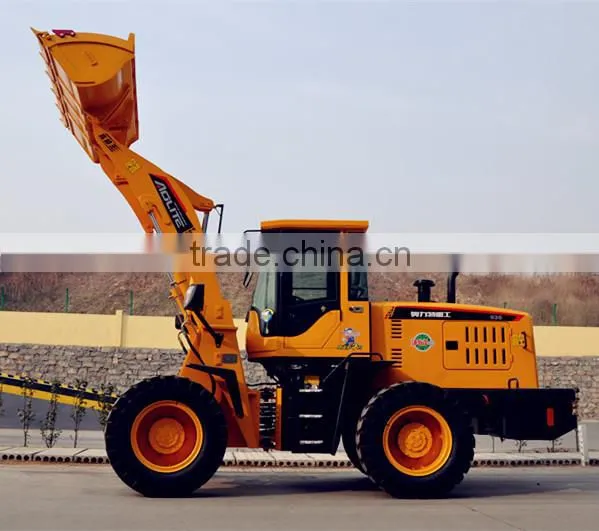

GT 2200kg 936B wheel loader from china
2. Our wheel loader is applied with Isuzu(Japan) axle, it is high quality and good performance for loader.
3. Drive model:4WD.
4. With auto low mode, it can provide smooth gear shifting at low engine speeds suitable for general excavting and loading while offering reduced fuel consumption. Maual mode, the transmission is fixed to the gear speed and selected with the gear shift lever. Auto medium and high mode, are suitable for different work situation.
5. Adopted with cylinder buffer rings, it is installed to the head-side of the all-hydraulic cylinders to lower the load on the rod seals, prolong cylinder life by 30% and maximize overall reliability.
6. Bucket, edge steel with extra hardened and toughened wear plates, with longer operating life.
Specifications for wheel loader 933:
|
936B Wheel Loader |
Overall Dimension |
6650*2280*3000mm |
Rated Load |
2200kg |
Operate Weight |
6300kg |
Arm Thickness |
35mm |
|
Bucket Width |
2400mm |
Bucket Capacity |
1.3m³ |
|
Max. Dumping Height |
3600mm |
Battery |
100A |
|

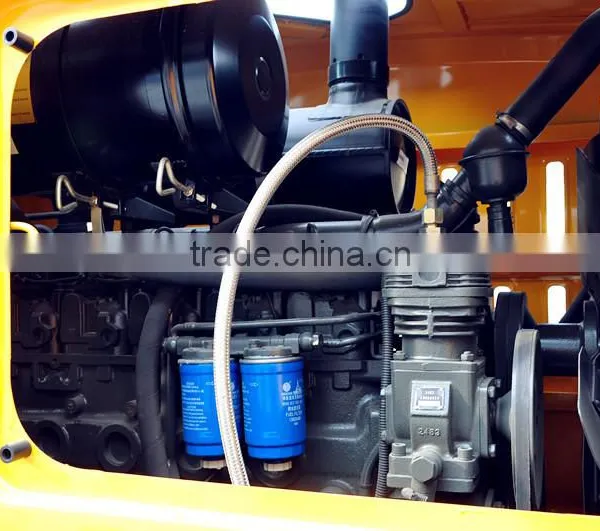

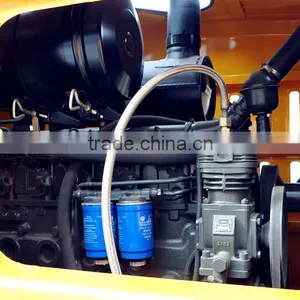

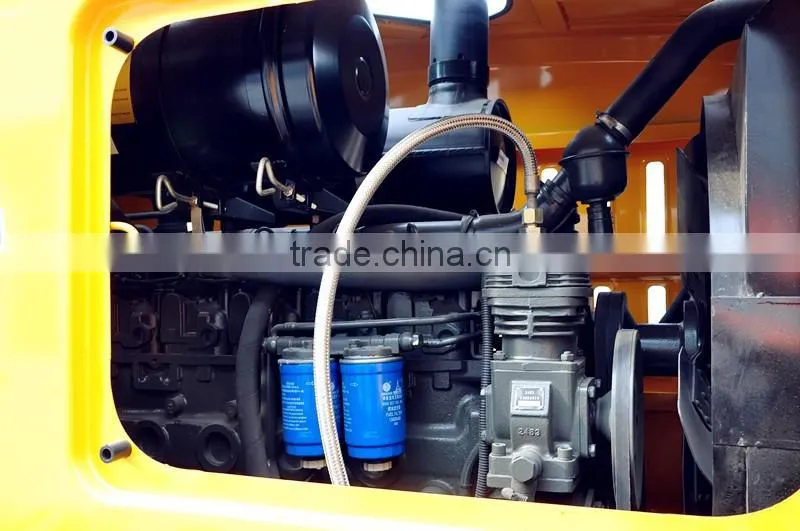

Engine |
Standard Configuration |
Weichai DEUTZ WP6G125E22 |
92kw(125.12hp) |
Six-Cylinder |
Advanced Configuration |
CUMMINS 4BTA3.9-C125 |
Rated Power/Speed |
93kw(126.48hp) |
|
|
Transmission System |
Gearbox Model |
300 Automatic |
Axle |
20G Big Hub Reduction |
Drive Model |
4WD |
Brake Model |
Gas Cap Oil Brake |
|

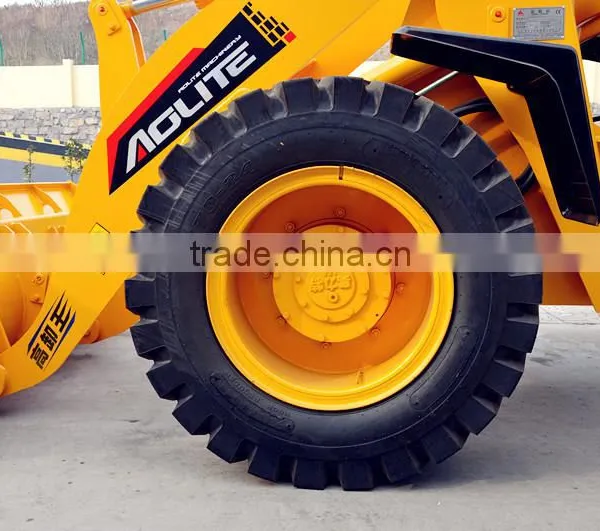

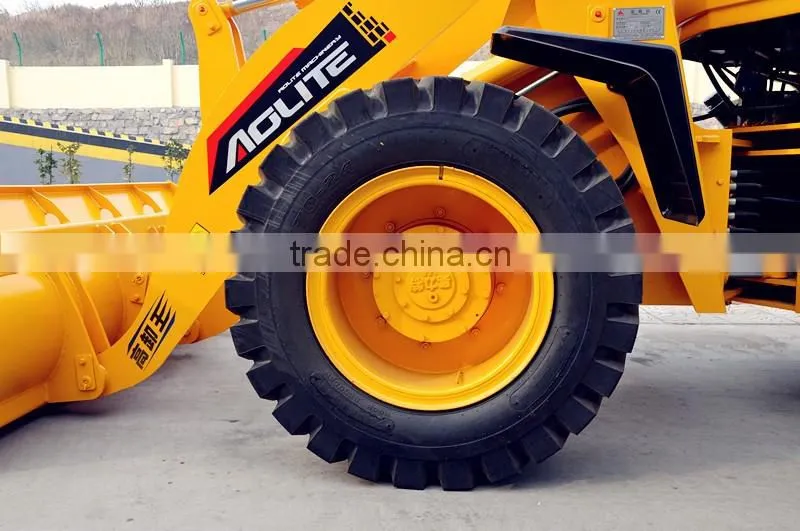

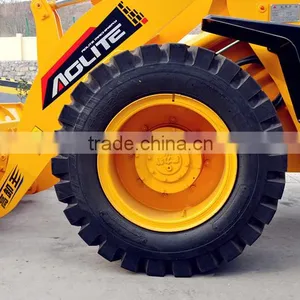

Tyre Size |
Size |
16/70-24 |
Model |
Road Tyre |
Package |
1 set in 1*40 HQ Container |
MOQ |
1 Set |
|
Frame |
Enhanced |
Colour |
Yellow, Red,Camouflage.... |
|
|
Optional Configuration |
Hydraulic Joystick Pilot Valve Quick Hitch/Quick-Change Bucket Quick-Change Pallet Fork/Quick-Change Screening Bucket Quick-Change Grass Fork/Quick-Change Wood Fork Quick-Change Snow Blow / Quick-Change Snow Bucket Quick-Change ‘V’ Snow Plow/Quick-Change Sweeper 4 in 1 Bucket/2 in 1 Bucket Air Condition/Rear View Camera |
Certification |
CE Certification ROPS/FOPS Test Report CO(Certification of Origin) Commodity Inspection
|
|
We can supply various wheel loader models, or you can tell us your requires, we also can accept.
