AISI1020 Hydraulic Cylinder Seamless Steel Tube From Yantai Shandong

FOB Price

US$ 0.5 - 1.5 / Metric Ton

5 Metric Tons(Min. Order)

Port yantai/qingdao
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Thickness	2, 30	Section Shape	Round
Outer Diameter	30 - 250 mm	Place of Origin	Shandong, China
Secondary Or Not	Non-secondary	Application	Other, Hydraulic Pipe, hydraulic cylinder ,automobile ,oil drilling
Technique	Cold Drawn	Certification	Other, ISO 90012008
Surface Treatment	Other, according to the customer's aquirement	Alloy Or Not	Non-alloy

Product Description

How much do you know about our company ?

our company located in coastal city -Yantai,with convenient transportation,and our company mainly produces various specifications of cold finished precision steel tube ,wich are widely used in hydraulic and pneumatic cylinder for automobile ,engineering machinery ,textil machinery ,printing machinery ,oil drilling and other field.

How much do you know about our products ?

Product Item	AISI1020 hydraulic cylinder seamless steel tube from Yantai shandong
Outer Diameter	30mm~250mm
Wall Thickness	2mm~30mm
Material Grade	10#-45#, 16Mn, Q195-Q345, ST35-ST52, STB35-STB42, 20#, 45#, 16Mn, Q345, ST35, St45, St52, St52.4, STB42, 16Mn,St52,10#-45#,ST35-ST52
Standard	ASTM, DIN, ASTM A1020-2002, DIN 2391
Application	Hydraulic Pipe, Hydraulic cylinder, automobile, oil drilling, textile machinery
Certificate	ISO9001:2008
Process Method	Cold Drawn/ Cold Rolled
Surface Finish	Annealed, Pickled
Package	According to the customer’s requirement
Delivery Time	10days more or according to the customer’s requirement
Price Item	FOB CIF EXW
Payment	T/T(30% in advance, 70% against the BL Copy) and L/C at sight or as negotiation
ID tolerance	H8,H9b H10 or as customized
Surface roughness	Ra0.2~0.8µm
Finally supply condition	BK BKS BKW NBK GBK

about the dimension

40*50	90*110	140*170	190*215
40*55	95*110	145*170	190*220
50*60	95*115	150*170	190*225
50*65	100*110	150*175	200*220
55*70	100*114	150*180	200*225
60*70	100*115	155*180	200*230
60*75	100*120	160*175	200*245
60*78	100*125	160*180	200*250
63*73	105*125	160*185	220*250
63*75	110*125	160*190	220*270
63*76	110*130	160*195	225*250
63*78	115*130	165*190	240*273
65*80	115*135	165*205	250*290
70*80	120*140	170*200	250*300
70*82	125*140	180*200	260*300
70*85	125*145	180*205	280*323
70*90	125*150	180*210	280*355
75*90	130*150	180*215	300*350
80*92	130*155	180*220	200*213
80*95	130*160	185*205	200*216
80*100	135*160	185*215	250*266
85*100	140*160	185*220
90*105	140*165	190*210

the tolerance of dimension

OD	GB/T3639(GB8713)	DIN2391(EN10305)	Our Tolerence	Best Quality
4-30mm	±0.10mm	±0.08mm	±0.05mm	±0.02mm
31-40mm	±0.15mm	±0.15mm	±0.05mm	±0.03mm
41-50mm	±0.20mm	±0.20mm	±0.05mm	±0.03mm
51-60mm	±0.25mm	±0.25mm	±0.08mm	±0.03mm
61-70mm	±0.30mm	±0.30mm	±0.10mm	±0.05mm
71-160mm	±0.30mm	±0.30mm	±0.10mm	±0.05mm
Tolerance in WT	±0.12mm	±0.10mm	±0.05mm	±0.03mm

Process	Diameter	Length	Precision	Inner Hole Roughness
Cold Rolled	30-100mm	≤12 m	H8-H10	0.4-1.6
Cold Draw	30-250mm	≤12 m	H8-H10	0.8-1.6
Honing	40-500mm	≤12 m	H8-H9	0.4-0.8
Rolling	40-400mm	≤7 m	H8	0.4

Inner Diameter	H8	H9	H10
30mm	±0.033	±0.052	±0.084	5-30mm
30-50mm	±0.039	±0.062	±0.100	±0.080
50-80mm	±0.046	±0.074	±0.120
80-120mm	±0.054	±0.087	±0.140
120-180mm	±0.063	±0.100	±0.160
180-250mm	±0.072	±0.115	±0.185
250-315mm	±0.081	±0.130	±0.210
315-400mm	±0.089	±0.140	±0.230

our packaging and shipping

(1)Delivery time: In 20 days or according to client's requires

(2)Trade terms: EXW/FOB/CIF etc

(3)Payments: T/T or L/C or according to client's requires

(4)Port: Yantai or Qingdao

(5)MOQ: 5 metric tons or at customer's demands

(6)Packing: we usually bundle with steel strips ,branding parcel or wooden box outside ,or according to the customer’s acquirement

our services

1. Cargo track service during transporting and feedback service after cargo is loaded on board

2. Flexible terms of payment by

3. Big discount for repeat customers

4. Smooth delivering procedure

5. Payment Terms: T/T , L/C And so on.

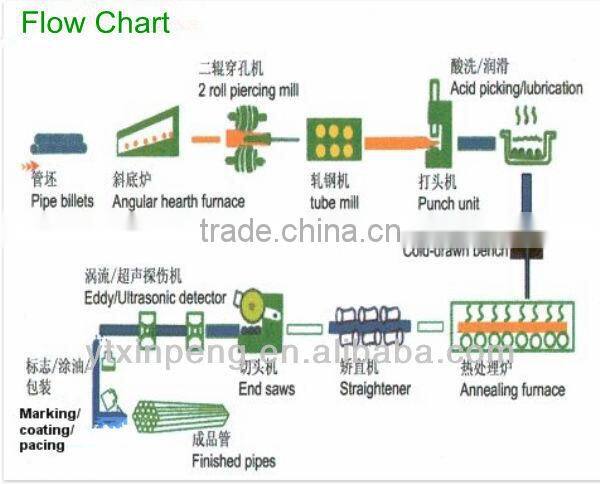

our processing

FAQ

Why you choose us?

•Our company established in December 1992, so we have 23years experience in tube manufacture

•We have the best service, quality, competitive price, and high reputation in the tube world

•We can supply all kinds of steel pipes such as:

∞hot rolled/cold drawn seamless steel tubes

∞precision steel tubes

∞honed and skived tubes

∞cold drawn welded tubes (DOM tubes)
