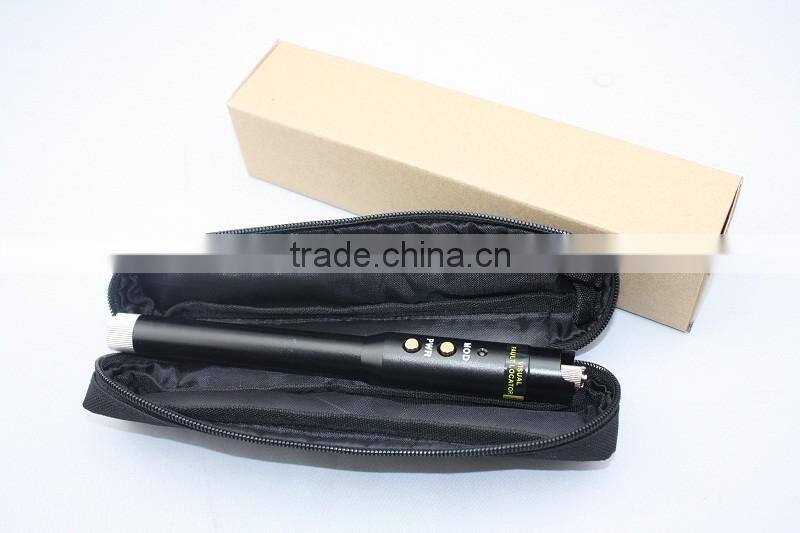

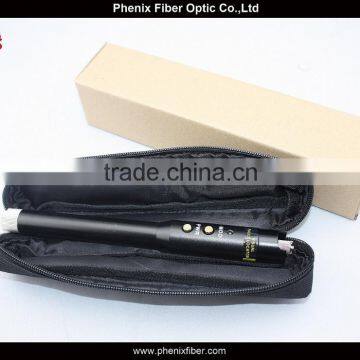

2.5mm Universal Connector for 1.25mm Connectors Fiber Optical Visual Fault Locator

US$ 50 - 50 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

fiber tool

Shenzhen Phenix Fiber Optic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number fiber tool

Description

This is specially designed for field personnel who need an efficient and economical tool for fiber tracing,

fiber routing and continuity checking in optical network.

Features

1. Metal case, Rugged and durable

2. Low battery indication, to avoid leakage and wrong judgment

3.ESD protection design, Protect the LD effectively

Integrated case, to avoid the case intermediate broken

Re-changeable ceramic tube, to avoid returning to manufacturer for this small fault

Long battery life, up to 60 hours@1mW

Specifications

Central Wavelength	650nm±10nm (635nm can be required on request)
Emitter Type	FP-LD
Output Power (mW)	1 or 10/20
Optical Connector	2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) converter can be optional on customer’s requests
Operating Model	Both CW and Pulse available
Pulse Frequency	2~3Hz
Power Supply	2 AA alkaline batteries
Battery Operating Time	650nm@1mw ≥65hours 650nm@10mw≥15hours Test with Panasonic LR6 AA ALKALINE battery
Operating Temperature (℃)	-10~+45
Storage Temperature(℃)	-40~+70
Dimension (mm)	OD 15X180
Weight(g)	120(Without battery)
