Air Compressors usage industrial Pressure Transducer
Introduction
These series of pressure transmitters feature high quality,high stability,small size weight,compact structure,low cost and mass production.the products are widely used to measure pressure of air compressors,auto engines,air conditioning equipment,etc.
Stainless steel housings are ideal for industrial environment.Pressure sensing elements are selected from well known international brands,Special circuits are adopted to adjust zero and full range conveniently.the products have beenapproved with CE,intrinsically safe,and explosion-proof certificates Non-polar two-wire current and three-wire voltage output are provided.
Products are produced according to military standards of advanced design,perfect technology,scientific management,strict production and quality control and have been sold to over 50 countries.
Technical parameters
The routine |
Value |
Note |
|
Measure Range |
0~5bar......50bar |
1bar=100kPa |
|
Overload Pressure |
1.5*RP(rated pressure) |
||
Broken Pressure |
3*RP(rated pressure) |
||
Accuracy |
±0.5,1,2%F.S(PT100&PT300 series have higher accuracy) |
||
Stability |
Typical 0. 5%F.S, Max 1%F.S |
||
Operating Temprature |
-40℃~120℃ |
||
compensatingTemprature |
-10℃~80℃ |
|
|
Medium Compatibility |
Corrosive medium compatible with Cr18Ni9Ti |
|
|
Wires |
Two-wire |
Three-wire |
|
Output Signal |
4~20mA |
0.5~4.5V |
|
Power Supply |
10~30Vdc |
10~30Vdc |
|
load |
(U-10)/0.02(ohm) |
>100kohm |
|
Insulation |
>100M ohm@50V |
|
|
|
|||
|
|
|
|
Shell Protection |
IP67 |
|
|
nnector |
Packard |
|
|
Prot |
G1/4, NPT1/4,7/16-20UNF |
|
|
Pressure From |
GaugeG |
response Time:10ms |
|
Certificate |
Intrinsic E,RoHS CE |
|
|
EMC |
EMI:EN50081-1/-2;EMS:EN50082-2 |
|
|

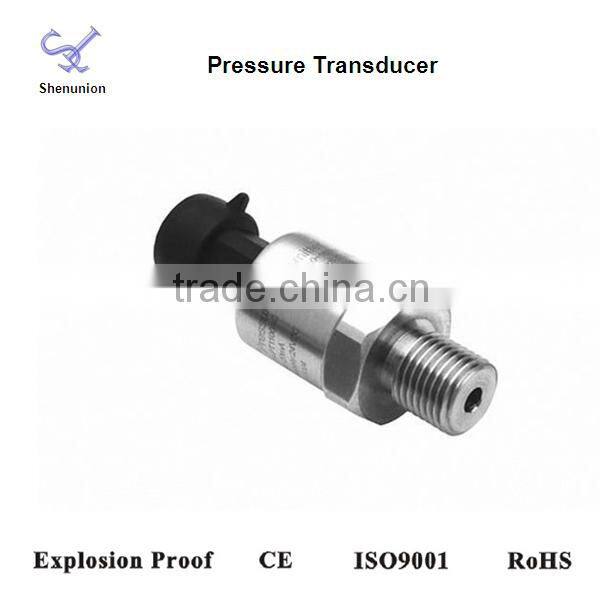

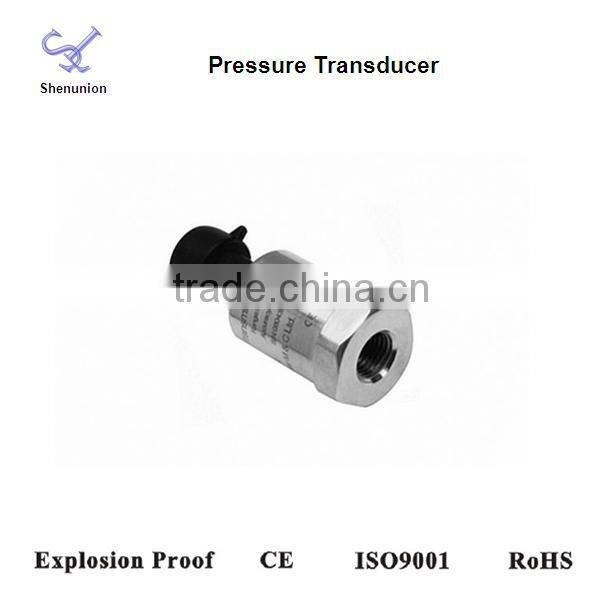

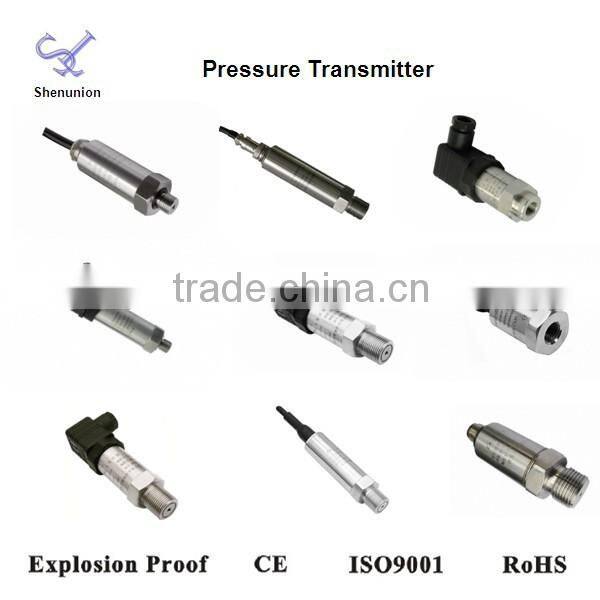

Picture:
Controllers pictures:
Logistics:
Corporate Vision:
1.Best service
2.Good quality
3.Competitive price
4.Sufficient supply
Shipping:
1. The items normally will be shipped out within 3 working days after the payment confirmed.
2. It will be shipped by DHL/FedEx /TNT/ UPS /EMS or other special way. Please contact with us and chose the best one.
You should pay attention to this:
3. Any accidents and delays or other issues caused by forwarder, please forgive that we can not take responsibility.
4. Your payment for the shipping cost will be highly appreciated.
Refund & Replacement:
1. One month for return policy from the arrival date.
2. Please simply return to us for replacement or refund, when you find the unperfected quality items or they don’t work well.
3. If the items are defective please notify us within 3 days after arrival.
4. Any items must be returned in their original condition to get a refund or replacement.
Contact information:
Tel : 86-411- 82556766
Fax: 86-411-82556988
Skype:jessicaxx99
Other Policies:
1. About MOQ which depends on your order.
2. About warranty we give one month for refund or replacement.
3. About sample which needs your charge.
4. About inventory which changes everyday and depends on your order.
5. About order process: We will send you a PI (term of shipping, aggregate amount and so on) after receive you parts list.
We also take OEM,ODM orders as your design, if you have any question, feel free to contact us.
