Panosonic Power Relay ALDP124W

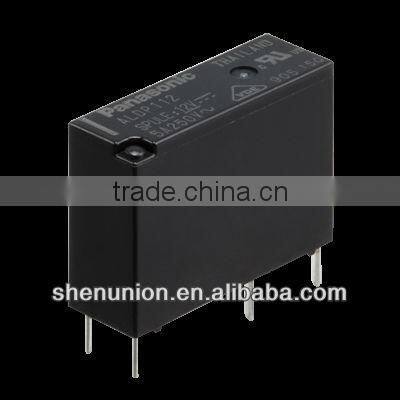

Panosonic Power Relay ALDP124W photo-1
US$ 1 - 100 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Japan
Brand Name:
Panasonic
Model Number:
ALDP124W
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Japan
Brand Name Panasonic
Model Number ALDP124W
Theory Voltage Relay
Usage General Purpose
Size Miniature
Protect Feature Sealed
Contact Load Low Power

Specifications

panosonic power relay ALDP124W
Power relay:1a,5A
Width:7mm
Lead free&RoHS Compliant

panosonic power relay ALDP124W



 Specification



ItemALDP124W
FeatureWidth :7mm
Protect FeatureSealed
ConnectorPCB, Thru-hole
Foreign CodesUL/C-UL, VDE
Coil Nominal Voltage24
Rated Power Input200mW
Inductive Voltage18V DC
Release Voltage 1.2V DC
Max Control current 5A
Max Control Voltage 277V AC
Minimum Load (reference)100mA 5V DC
Contact Structure 1a
Contact Material AgNi
Insulation ClassClass E
Life Expectancy(Mechanical ) 5x10^6
Life Expectancy(Electrical )2x10^5
Dielectric Strength Between Open Contacts750Vrms
Between Contacts and coil4000Vrms
Temperature Range-40°C~ +85°C
Moving FunctionSingle side stable



 Picture:



panosonic power relay ALDP124W









We can also offer OEM/ODM service:



Controller series:



panosonic power relay ALDP124W



Control panel series:



panosonic power relay ALDP124W



PCB series:



panosonic power relay ALDP124W



Logistics:



panosonic power relay ALDP124W



Corporate Vision:

1.Best service

2.Good quality

3.Competitive price

4.Sufficient supply



Shipping:

1. The items normally will be shipped out within 3 working days after the payment confirmed.

2. It will be shipped by DHL/FedEx /TNT/ UPS /EMS or other special way. Please contact with us and chose the best one.

You should pay attention to this:

3. Any accidents and delays or other issues caused by forwarder, please forgive that we can not take responsibility.

4. Your payment for the shipping cost will be highly appreciated.



Refund & Replacement:

1. One month for return policy from the arrival date.

2. Please simply return to us for replacement or refund, when you find the unperfected quality items or they don’t work well.

3. If the items are defective please notify us within 3 days after arrival.

4. Any items must be returned in their original condition to get a refund or replacement.



Contact information:

Tel : 86-411- 82556766

 Fax: 86-411-82556988



 Other Policies:

1. About MOQ which depends on your order.

2. About warranty we give one month for refund or replacement.

3. About sample which needs your charge.

4. About inventory which changes everyday and depends on your order.

5. About order process: We will send you a PI (term of shipping, aggregate amount and so on) after receive you parts list.



We also take OEM,ODM orders as your design, if you have any question, feel free to contact us.
