Ceramic Resonator MURATA Crystal Resonator CSTCE_G series

Specifications

Ceramic Resonator MURATA Crystal Resonator CSTCE_G series

Ceramic Resonator MURATA Crystal Resonator CSTCE_G series



Chip type CERALOCK(R) with built-in load capacitors provides an extremely small package.

MURATA's package technology expertise has enabled the development of the Chip CERALOCK(R) with built-in load capacitors.

High-density mounting can be realized because of the small package and the elimination of the need for an external load capacitor.

Features

1. Oscillation circuits do not require external load capacitors.

2. Available in a wide frequency range.

3. Extremely small and have a low profile.

4. No adjustment is necessary for oscillation circuits.

Applications

1. Clock oscillators for microprocessors

2. Small electronic equipment such as handheld phone, digital video camcorder (DVC), digital still camera (DSC), portable audio player, etc.

3. Storage media and memory(HDD, Optical storage device, FDD, Flash memory  card, etc.)

4. Office automation equipment  (Mobile PC, Mouse, Keyboard, etc.)

5. Audio-visual applications (TV, DVD-HDD recorder, Audio equipment, Remote  control, etc.)

6. Home appliances(Air conditioner, Microwave oven, Refrigerator, Washing machine, etc.)

Specification:



Global Part Number	CSTCE_G
Previous Part Number
Oscillating Frequency	8.00 to 13.99MHz
Initial Tolerance	±0.5%
Temp. Stability	±0.2%
Operating Temperature Range	-20 to 80°C
Wash	Not Available
Ultrasonic Wash	Not Available
Capacitor	Built in
Frequency Tolerance	Tight tolerance frequency(Intra ±0.1%)
Use
Applications	For consumer electronics

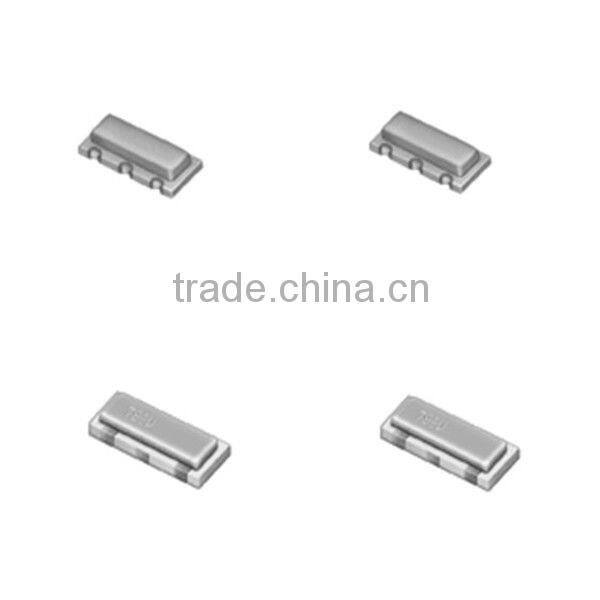

Picture:

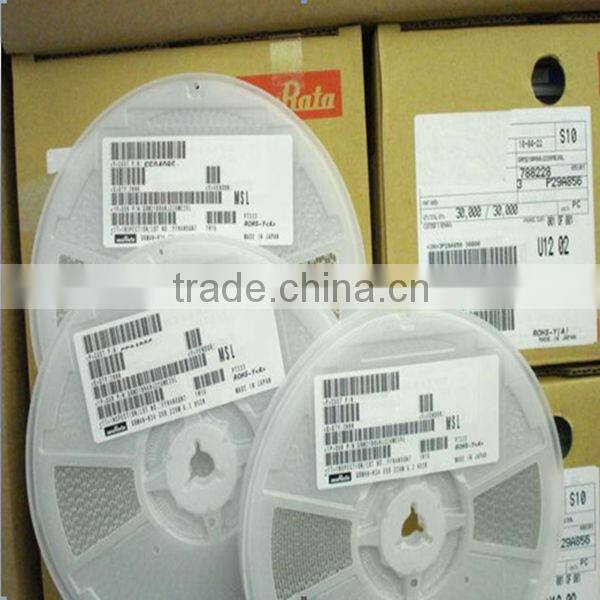

Packing:





Logistics:





Corporate Vision:

1.Best service

2.Good quality

3.Competitive price

4.Sufficient supply



Shipping:

1. The items normally will be shipped out within 3 working days after the payment confirmed.

2. It will be shipped by DHL/FedEx /TNT/ UPS /EMS or other special way. Please contact with us and chose the best one.

You should pay attention to this:

3. Any accidents and delays or other issues caused by forwarder, please forgive that we can not take responsibility.

4. Your payment for the shipping cost will be highly appreciated.



Refund & Replacement:

1. One month for return policy from the arrival date.

2. Please simply return to us for replacement or refund, when you find the unperfected quality items or they don’t work well.

3. If the items are defective please notify us within 3 days after arrival.

4. Any items must be returned in their original condition to get a refund or replacement.



Contact information:

Tel : 86-411- 82556766

 Fax: 86-411-82556988



 Other Policies:

1. About MOQ which depends on your order.

2. About warranty we give one month for refund or replacement.

3. About sample which needs your charge.

4. About inventory which changes everyday and depends on your order.

5. About order process: We will send you a PI (term of shipping, aggregate amount and so on) after receive you parts list.



We also take OEM,ODM orders as your design, if you have any question, feel free to contact us.
