WIRE DRAWING MACHINE
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai /Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Straight Wire Drawing Machine LZ400US$ 50,000 - 5,000,000MOQ: 1 Set -
Pay-off and Take-up Machine/Wire Drawing MachineUS$ 50,000 - 5,000,000MOQ: 1 Set
-
Wire Drawing MachineUS$ 50,000 - 5,000,000MOQ: 1 Set
-
Straight Wire Drawing Machine(LZ700)US$ 50,000 - 5,000,000MOQ: 1 Set
-
PAY-OFF AND TAKE-UP MACHINENegotiableMOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Zhejiang, China
Brand Name
Harbor
Model Number
LZ
Specifications
Wire drawing machineFor high & low carbon steel wire
AC frequency-variation motor
PLC logical control
High efficiency
Wire drawing machine
Suitable material: for stainless steel wire, spring steel wire, steel rope wire, welding wire, steel fibre, tire bead wire, Al clad steel wire and PC strand wire.
Technical parameter:
| Model(Block diameter) | 300 | 350 | 400 | 450 | 500 | 560 | 600 | 700 | 800 | 900 | 1200 |
| Strength of inlet wire/MPa | ≤1250 | ||||||||||
| Number of Block | 2~11 | 2~11 | 2~11 | 2~12 | 2~12 | 2~12 | 2~12 | 2~9 | 2~9 | 2~9 | 2~9 |
| Maximum diameter of inlet wire(mm) | 2.8 | 3.5 | 4.2 | 5 | 5.5 | 6.5 | 8 | 10 | 12.7 | 14 | 16 |
| Minimum diameter of outlet wire(mm) | 0.5 | 0.6 | 0.75 | 1 | 1.2 | 1.4 | 1.6 | 2.2 | 2.6 | 3 | 5 |
Highest drawing speed(m/s) |
~25 | ~20 | ~20 | ~16 | ~15 | ~15 | ~12 | ~12 | ~8 | ~7 | ~6 |
| Drawing power(kw) | 7.5~18.5 | 11~22 | 11~30 | 15~37 | 22~45 | 22~55 | 30~75 | 45~90 | 55~110 | 90~132 | 110~160 |
| Transportation system | two grade belt transmission;double enveloping worm wheels; gearbox with hard tooth sureface | ||||||||||
| Way of speed adjusting | AC Frequency conversion speed adjusting or DC speed adjusting | ||||||||||
| Way of control | Profibus field bus control system, touching screen show, human-computer communication, long-distance diagnose function | ||||||||||
| Way of pay-off | Spooler pay-off,high pay-off frame, type pay-off,duck-nip pay-off,can pay-off without stop work | ||||||||||

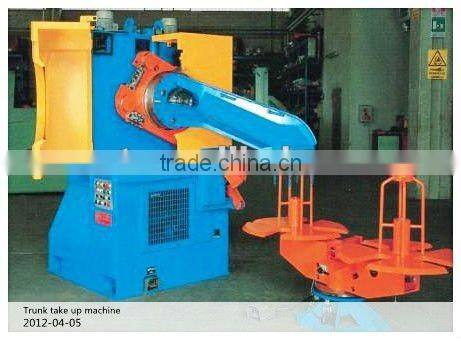

| Way of take-up | Spooler take-up, trunk take-up, headstand take-up, and all can take-up wire without stop work | ||||||||||
| Main function | Slowdown to stop at fixed length automatically, wire broken test and stop work automatically,cut off any block to compose new technical process freely, slowdown to stop automatically when the protecting shield is open, show of all kinds of fault information and the solution, inspection and control of all kinds of running information | ||||||||||
| Material that can be drawn | steel wire(High, middle, low carbon steel wire, stainless steel wire, pre-tension steel wire, bead wire,rubber tube wire, spring steel wire,cord wire and so on), | ||||||||||
| Welding wire(Air protecting welding wire,submerged arc welding wire, flux cored wire and so on) | |||||||||||
| electric wire and cable(Aluminum-clad steel wire,copper wire, aluminum wire and so on) | |||||||||||
| alloy wire and other kinds of metal wire | |||||||||||
After-sell Service:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
All the products of our company have already been widely used in wire rope area, welding wire area, alloy wire area, rubber frame material area and pre-stressed steel wire area.
-Any doubt Please contacto to us

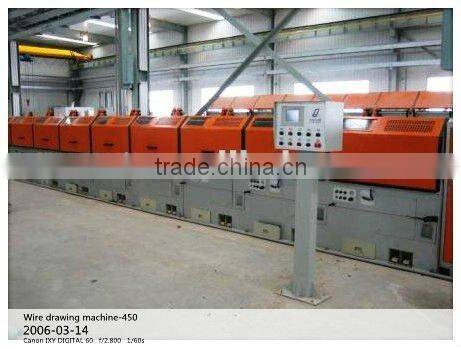

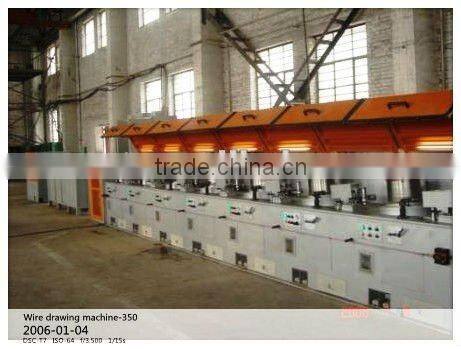

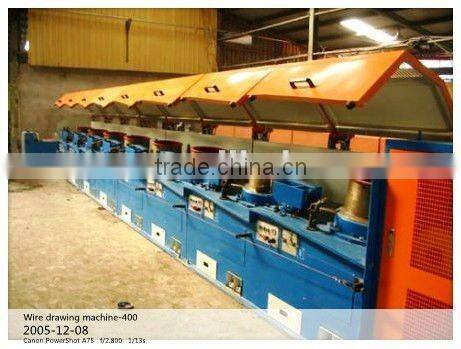

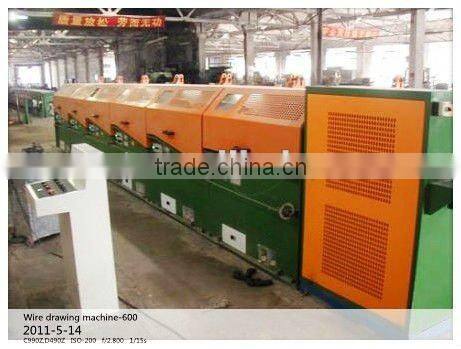

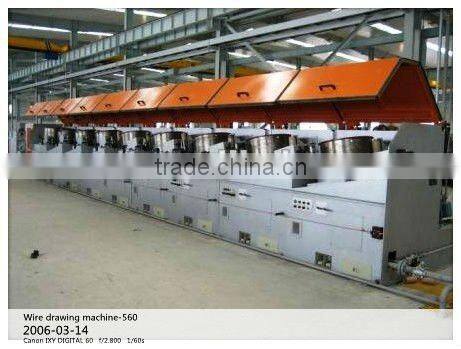

Our product:

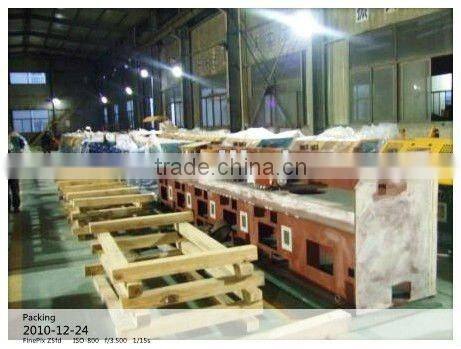

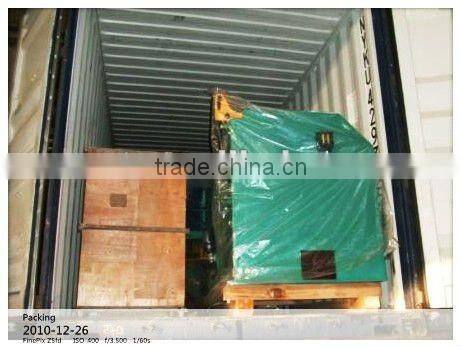

Packing:
