Specifications
Wire drawing machineFor high & low carbon steel wire
AC frequency-variation motor
PLC logical control
High efficiency

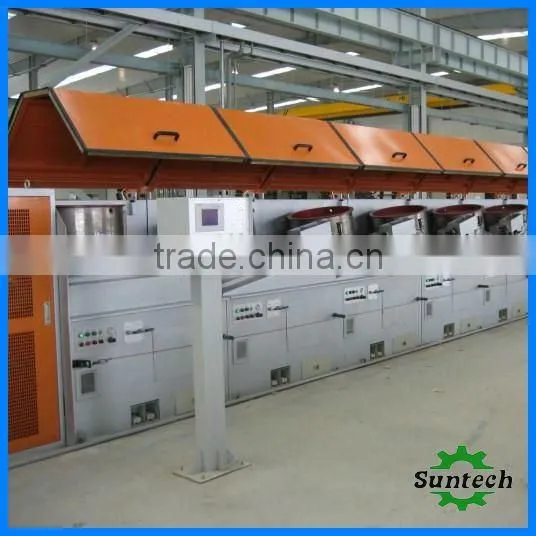

Wire drawing machine
Technical parameter
Model (Block diameter) |
300 |
350 |
400 |
450 |
500 |
560 |
600 |
700 |
800 |
900 |
1200 |
Strength of inlet wire (MPa) |
≤1250 |
||||||||||
Number of Block |
2~11 |
2~11 |
2~11 |
2~12 |
2~12 |
2~12 |
2~12 |
2~9 |
2~9 |
2~9 |
2~9 |
Maximum diameter of inlet wire (mm) |
2.8 |
3.5 |
4.2 |
5 |
5.5 |
6.5 |
8 |
10 |
12.7 |
14 |
16 |
Minimum diameter of outlet wire (mm) |
0.5 |
0.6 |
0.75 |
1 |
1.2 |
1.4 |
1.6 |
2.2 |
2.6 |
3 |
5 |
Highest drawing speed (m/s) |
~25 |
~20 |
~20 |
~16 |
~15 |
~15 |
~12 |
~12 |
~8 |
~7 |
~6 |
Drawing power (kw) |
7.5~18.5 |
11~22 |
11~30 |
15~37 |
22~45 |
22~55 |
30~75 |
45~90 |
55~110 |
90~132 |
110~160 |
Transportation system:
Two grade belt transmission, double enveloping worm wheels, gearbox with hard tooth surface.
Way of speed adjusting:
AC Frequency conversion speed adjusting or DC speed adjusting.
Way of control:
Profibus field bus control system, touching screen show, human-computer communication, long-distance diagnose function.
Way of take-up:
Spooler take-up, trunk take-up, headstand take-up, and all can take-up wire without stop work.
Way of pay-off:
Spooler pay-off, high pay-off frame, "-" type pay-off, duck-nip pay-off, can pay-off without stop work.
Main function:
Slowdown to stop at fixed length automatically, wire broken test and stop work automatically, cut off any block to compose new technical process freely,slowdown to stop automatically when the protecting shield is open, show of all kinds of fault information and the solution, inspection and control of all kinds of running information.
Material that can be drawn:
Steel wire (High, middle, low carbon steel wire, stainless steel wire, pre-tension steel wire, bead wire, rubber tube wire, spring steel wire, cord wire and so on).Welding wire (Air protecting welding wire, submerged arc welding wire, flux cored wire and so on).lectric wire and cable (Aluminum-clad steel wire, copper wire, aluminum wire and so on).Alloy wire and other kinds of metal wire.
Notes: All the parameters might be changed according to the actual situation.
After-sell Service
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
All the products of our company have already been widely used in wire rope area, welding wire area, alloy wire area, rubber frame material area and pre-stressed steel wire area.
Any doubt Please contact us.
About us
The wire drawing machine series of our company have absorbed pith from other company in the same industry both at home and broad in the machinery design proccess, different finished products fromou machines have different configurations, which makes us in the leading position of concerning the product characteristics for user; the electric control system adopts AC frequency-variation frequency-variation speed adjusting drive and PLC logical control, and takes the most popular PROFIBUS field-bus type in the world, which not only operates stably and reliably with low energy loss, but also greatly improves the production efficiency. It is applicable to drawing spring steel wires, tyre rib steel wires, steel wires for ropes, optical fiber steel wires, CO2 shield welding wires,flux cores welectrodes for arc welding, alloy and stainless steel wires, aluminum clas wires. under-relaxation pre-stressed steel wires and so on.
All the products of our company aie manufactured according eo the national industry standard, enterprise standard and advanced international group standard, and have already been widely used in wire rope area, welding wire area, alloy wire area, rubber frame material area and pre-stressed steel wire area.
Our product

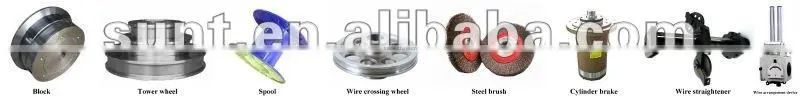

Spare parts for wire drawing machine
Packing
