Specifications
1. Outstanding quality2. Wide varieties
3. OEM available

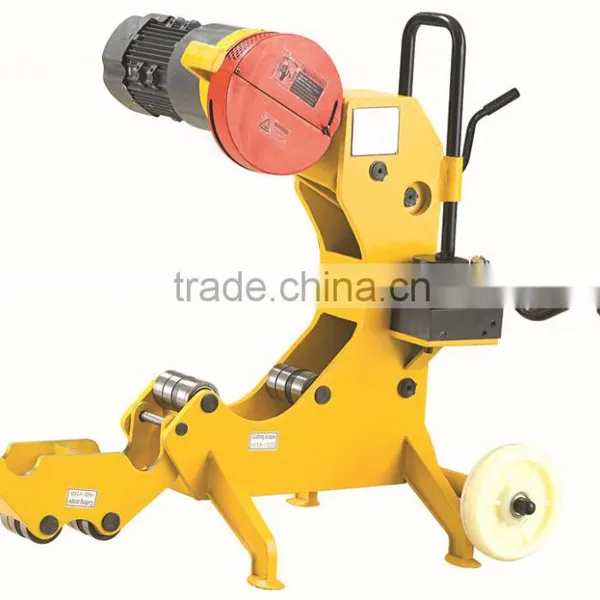

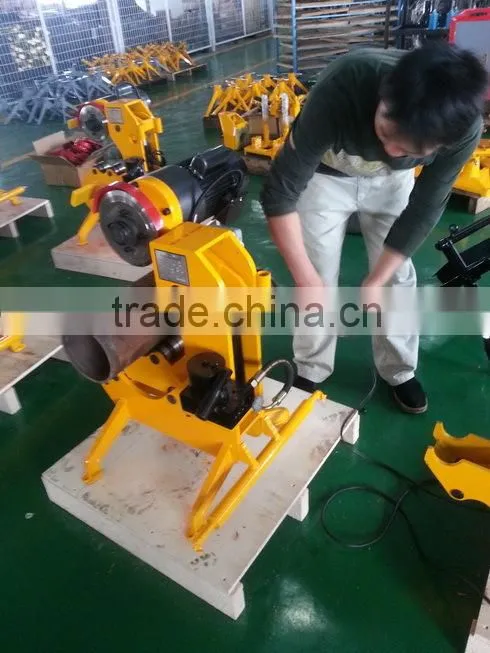

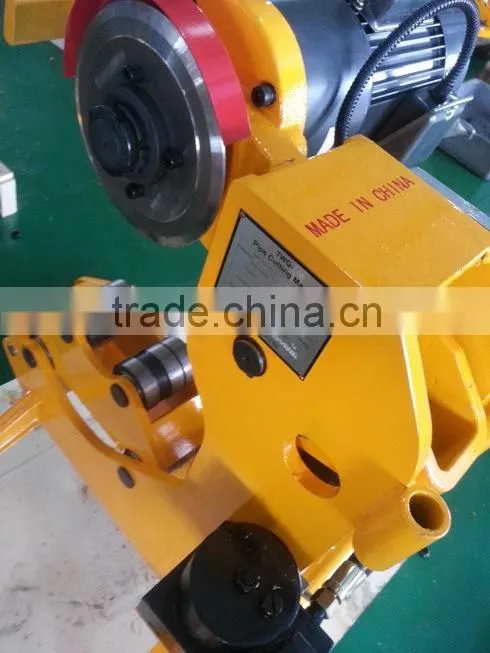

STQ-IIIA Pipe cutter for the precise cutting of copper, brass, aluminium, thin-walled steel and also stainless steel pipes.
Feature:
CE certified, applicable for cutting 2"-12" diameter and 10 mm thick steel pipes.
Professional manufacturer for pipe cutting machine, have got technical patents for this product.
Both Alloy and HSS cutting blade are available.
A 4" steel pipe can be cut within 50 seconds by only one person.
The operator controls the feeding rate by pumping the hydraulic pump during the operation.

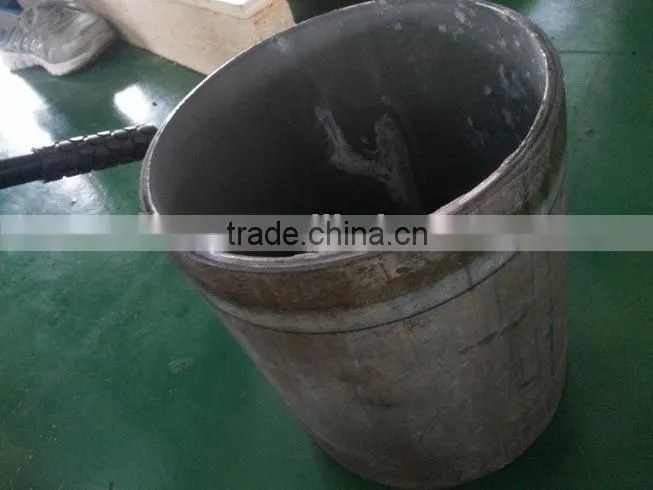

No sparks, dust or abrasive comes out of work. Processed pipes can be threaded or grooved with no extral processing.
Induction type motor ensures the silent environment.
With oil pump for time-saving.
Equipped special connection between the motor and main shaft to offer easier and safer service and assembling.
Heavy-duty design is perfect for field or shop use.
Human-friendly design.
Accessories
Steel pipe support,one piece
Alloy blade, one piece
Technical data:
Working range:
2"-12"(Φ60-Φ325) Steel pipe
Pipe wall-thickness: : 10mm
Speed: 23 rotations/m
Power:
Three-phase motor, Voltage: 110-415V
Power capacity: 750W, Frequency: 50-60Hz
Single-phase motor, Volate: 110-240V
Power capacity: 750-1100W, Frequency: 50-60Hz
We offer 1 year guarantee.
