Specifications
Capacity:2"-12"(aa57-aa325) Steel pipe
2"-4"(aa57-aa114) Plastic-lining pipe
Max. wall thickness: 10mm
Output RPM: 23 ro
Key features

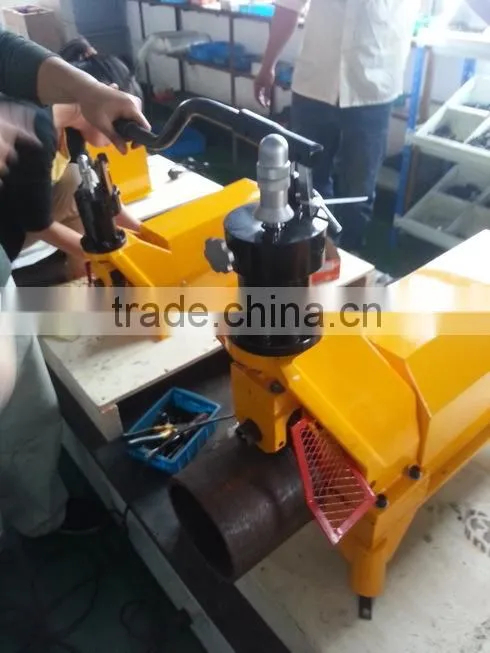

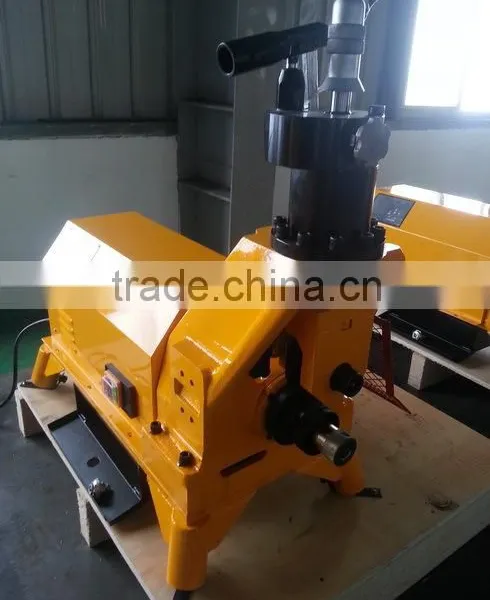

STG-II A Pipe grooving machine for rolling of grooves on thin-walled and standard steel pipes
1. This machine is applicable for grooving 2"-12" steel pipes and 2"-4" plastic-lining pipes.

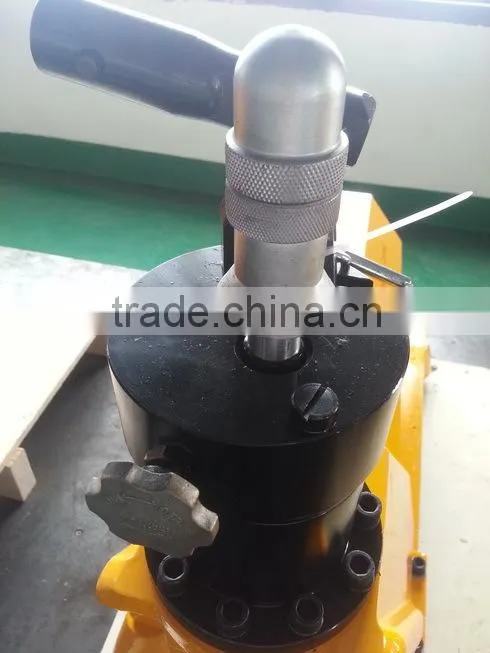

2. Sturdy hydraulic-pump with precisely formed grips for ideal handling.
3. Compact and very stable machine design.
4. Powerful yet quiet motor.
5. Fine adjustment for groove depth and regulation.
6. Equipped with a foldable steel support to contribute to easier operation and labor saving.
7. With a guide wheel to reduce the vibrating of the pipe when grooving.
8. CE certified.
Application area
Sprinkler systems, installations, larger heading units, industrial use and mining.
Technical data:
Working range:
2"-12"(Φ57-Φ325) Steel pipe
2"-4"(Φ57-Φ114) Plastic-lining pipe
Pipe wall-thickness: : 10mm
Speed: 23 rotations/m
Power:
Three-phase motor, Voltage: 110-415v,
Power capacity: 750W, Frequency: 50-60Hz
Single-phase motor, Volate: 110-240v
Power capacity: 1100-1500W, Frequency: 50-60Hz
Standard Equipment:
Steel pipe support, 1 pc

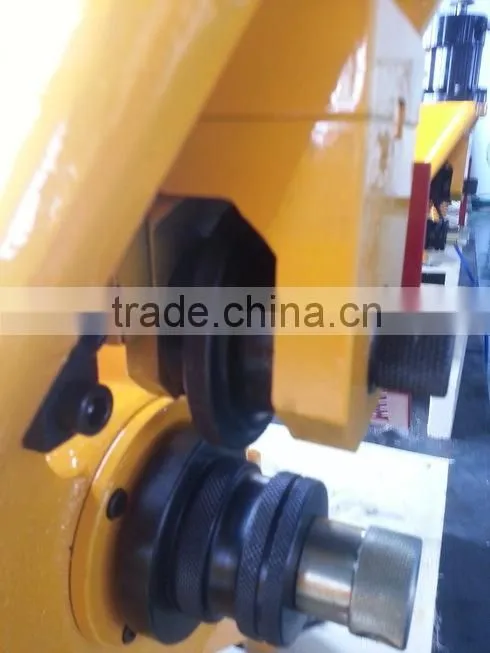

A set of 2"-12" knurl wheel, 3 pcs
A set of 2"-12" pinch roll, 2 pcs
A set of guide wheel
·Accessories
Hydraulic steel pipe support 29.5kg
Guide wheel 3.5kg
Knurl wheel(Φ60-Φ76) 0.5kg
Knurl wheel(Φ89-Φ168) 1.25kg
Knurl wheel(Φ219-Φ325) 1.4kg
Pinch roll (Φ60-Φ168) 0.65kg
Pinch roll (Φ219- Φ325) 0.6kg
