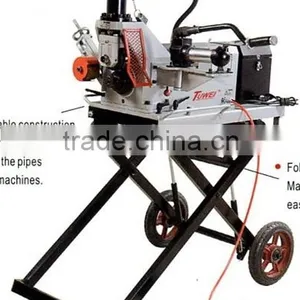

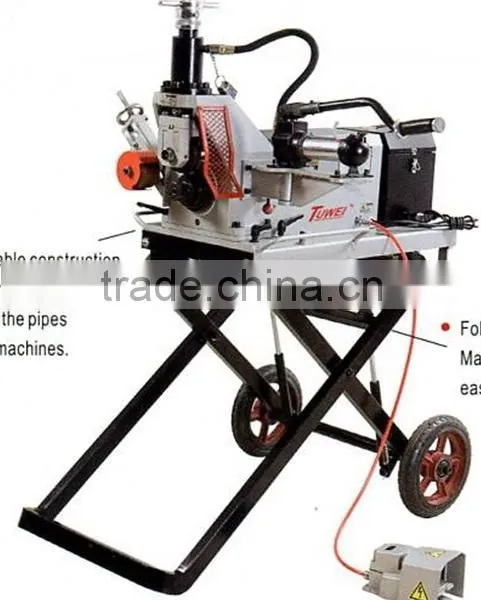

Help Center1"-12" Hydraulic Rolling Groover for Steel Pipes
Related Products
-
Hydraulic Rolling Groover for 1"-12" Steel PipesUS$ 2,000 - 3,000MOQ: 1 Piece -
Roll-groove Machine for 2"-8" PipesUS$ 1,000 - 1,800MOQ: 1 Piece
-
Electric Hydraulic Cutting Machine for 2"-8" Steel PipeUS$ 1 - 12MOQ: 1 Piece
-
Tube Cutter for 2"-8" PipesUS$ 950 - 1,100MOQ: 1 Piece
-
Electric Cutting Machine for 2"-12" PipesUS$ 1,300 - 1,600MOQ: 1 Piece
Specifications
1. Outstanding quality2. Wide varieties for you to choose from
3. Also have machines for stainless steel
4. OEM available
Key features
STG-VIA Pipe grooving machine for rolling of grooves on thin-walled and standard steel pipes
1. This machine is applicable for grooving 1"-12" steel pipes and 1"-3" plastic-lining pipes.
2. Sturdy hydraulic-pump with precisely formed grips for ideal handling.
3. Compact and very stable machine design.
4. Powerful yet quiet motor.
5. Fine adjustment for groove depth and regulation.
6. Equipped with a foldable steel support to contribute to easier operation and labor saving.
7. With a guide wheel to reduce the vibrating of the pipe when grooving.
8. CE certified.
Application area
Sprinkler systems, installations, larger heading units, industrial use and mining.
Technical data:
Working range:
1"-12"(Φ33-Φ325) Steel pipe 1"-3"(Φ33-Φ89) Plastic-lining pipe
Max. wall-thickness: 10mm
Speed: 23-36 rotations/m
Power:
Three-phase motor, Voltage: 110-415V, Power capacity: 1100W, Frequency: 50-60Hz
Single-phase motor, Volate: 110-240V Power capacity: 1500W, Frequency: 50-60Hz
Standard Equipment:
Steel pipe support, 1 pc
A set of 1"-12" knurl wheel, 4 pcs
A set of 1"-12" pinch roll, 4 pcs
A set of guide wheel
Steel pipe support 22.5kg
Guide wheel 6.7kg
Knurl wheel(Φ33-Φ48) 2.6kg
Knurl wheel(Φ60-Φ89) 3.3kg
Knurl wheel(Φ114-Φ168) 4kg
Knurl wheel(Φ219-Φ325) 4kg
Pinch roll (Φ33-Φ48) 1.5kg
Pinch roll (Φ60-Φ89) 1.5kg
Pinch roll (Φ114-Φ168) 1kg
Pinch roll (Φ219-Φ325) 1kg
We offer 1 year guarantee.
About us:
The production and management of our company have passed ISO: 9001, and all the machinery have got CE certificate and others.
Our company, with advanced management, standard quality certificate, 3A Credit Lable, is one of the first "Credible & Lawful" enterprise in Zhejiang province.
Due to the high quality of this machine, heavy orders witness that we are experienced in producing & exporting Electric Pipe Threading Machine with different sizes & styles to the world markets. Therefore, we assure the best quality and service for you.
