Home > Products > CCTV Security Products > CCTV Security Surveillance 1/3 SONY CCD 420TVL - 700TVL OSD IR 40M 48PCS LEDS 4-9MM OSD outdoor weatherproof Camera

Share|

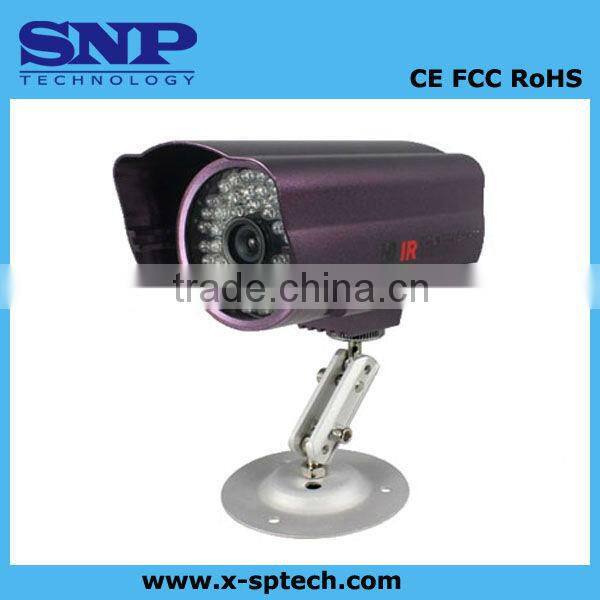

CCTV Security Surveillance 1/3 SONY CCD 420TVL - 700TVL OSD IR 40M 48PCS LEDS 4-9MM OSD outdoor weatherproof Camera

FOB Price

USD $15 - $150 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port sz
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	SNP	Model Number:	SP-BS3142/48/54/60/70
Type:	Analog Camera	Style:	Box Camera	Sensor:	CCD
Technology:	Infrared	Special Features:	Waterproof / Weatherproof

Product Description

Specifications

CCTV Camera Sony/ Sharp Color CCD
IR 40M 48PCS LEDS
8MM LEN
CE FCC RoHS Approve

Weatherproof IR Camera
1/3,1/4 Sony/Sharp Color CCD
420-700TVL(Effio)
IR LED: ¢5X48PCS
IR Range:40M
Metal Shell, Vandal-Proof
Water resistance: IP66
Board Lens 6 mm/F2.0
2 years warranty

Model No.	SP-BS3170	SP-BS3160	SP-BS3160C	SP-BS3142	SP-BS3142L	SP-BS3142S
Image Sensor	1/3"Sony	1/3"Sony	1/3"CMOS	1/3"Sony	1/4" Sharp	1/4"Sony
	ICX673BK CCD	ICX639BK CCD	PC1089	ICX633BK CCD	RJ2421BB CCD	ICX643 CCD
Horizontal Resolution	700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD	600TVL, Low Illumination, DWDR, OSD, DNR, PM, MD	600TVL	420TVL	420TVL	420TVL
Pixels	PAL: 976 (H)×494(V)	PAL: 795 (H)×596(V)		PAL: 500(H)×582(V)
	NTSC : 976 (H)×582 (V)	NTSC: 811 (H)×508 (V)		NTSC: 510(H)×492(V)
Television Standards	PAL/ NTSC
IR LED	48PCS of ¢5mm IR LED
IR Distance	40m
Lens	Built-in 6 mm/F2.0 Board Lens
Sync System	Internal
Usable Illumination	0.01Lux/F2.0
IR Power On	Auto Control
S/N Ratio	≥65dB (AGC OFF)	≥54dB (AGC OFF)		≥48dB (AGC OFF)
Gamma Correction	0.45
Video Output	Composite Signal (1.0Vp-p, 75Ω)
Scanning System	PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
Electronic Shutter	Auto: PAL 1/50-1/100,000Sec; NTSC 1/60-1/100,000Sec
Operation Temperature	-10°C ~ +50°C, RH: 95% Max
Storage Temperature	-20°C ~ +60°C, RH: 95% Max
White Balance	Auto
Power Supply	DC12V
Dimension	140(W) x75(H) x80(D)mm
Weight	700g

Contact Us

Shenzhen SNP Trade Co., Limited: Contact nameAcks Hsu; Phone0086-755-22314629; Address752, Gongyi Bldg., Zhenhua Road, Futian Dist.
