Stainless steel Chain BlockStrong figure and fine appearance
Excellent performance
Safety operation
Capacity: 1~5t.

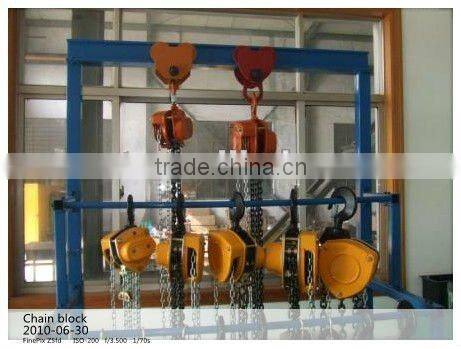

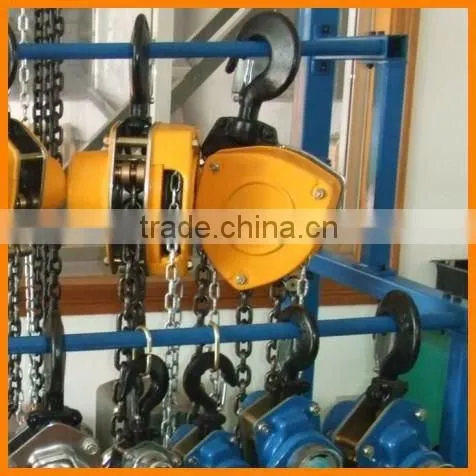

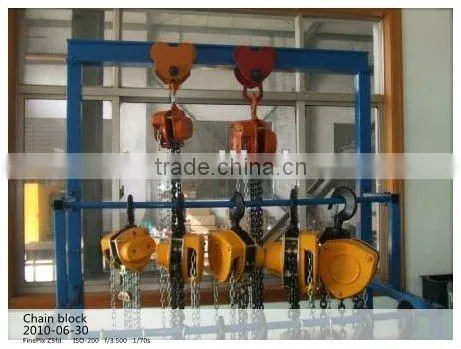

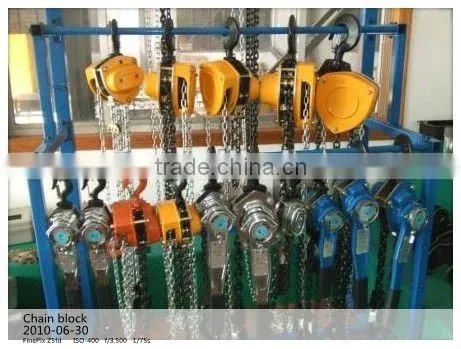

Stainless steel Chain Block
Description:
Studying from the modern example of abroad, depending on our company's ability and absorbing the advantage of other chain block in the line, we advanced the neew type chain block HSGD type it has strong figure and fine appearance; excellent performance; safety operation; high effective and high quality.
In order to meet to the different request if differebt customers, we provide different color and different packing of this new type.The outside shell, hook and chains are all in best quality material; never cross mixed in chain, light safety ensure your confident selection.
Heavy-duty chain in super hard steel alloy. Pulley device with needle bearing. Bottom hook device with surface pressure bearing (below 10ton).Super hard alloy chain is surface electroplated, blackening and anti-rust.
Detailed specifiation:
Model | HSGD1 | HSGD1.5 | HSGD2 | HSGD3 | HSGD5 | |
Capacity( t) | 1 | 1.5 | 2 | 3 | 5 | |
Standard lift (m) | 2.5 | 2.5 | 2.5 | 3 | 3 | |
Running test load | 1.25 | 1.875 | 2.5 | 3.75 | 6.25 | |
Headroom Hmin (mm) | 360 | 430 | 470 | 585 | 620 | |
Effort required to life max.load (N) | 284 | 318 | 340 | 318 | 297 | |
No. of colums ofload chain | 1 | 1 | 1 | 2 | 3 | |
Lifting chain (mm) | 7.1x2.1 | 8x24 | 10x30 | 8x24 | 6x27 | |
Hand chain (mm) | 5x22.5 | 6x27 | 6x27 | 6x27 | 6x27 | |
Dimensions (mm) | A | 170 | 192 | 220 | 235 | 370 |
B | 150 | 169.5 | 185 | 169.5 | 185 | |
C | 36 | 39 | 43 | 52 | 61 | |
D | 174 | 201 | 233 | 201 | 233 | |
Net Weight (kg) | 14.5 | 21.3 | 27.7 | 33 | 58.2 | |
Extra weight per meter or extra lift (kg) | 2.1 | 2.82 | 3.61 | 4.25 | 8.08 | |
Remarks: inaddition the standard lift we accept orders to 12 lift.
Product:
-------------------------------------------------------------------------
Any doubt please contacto to us.
--------------------------------------------------------------------------
