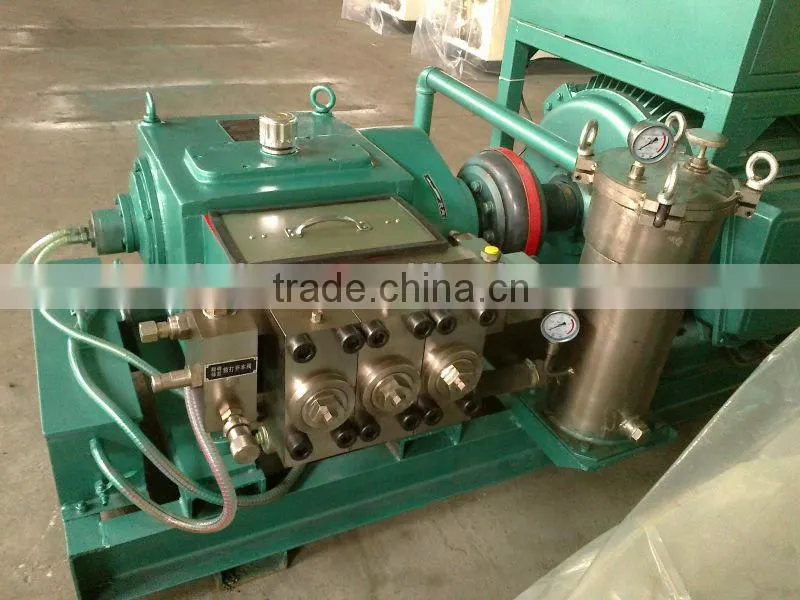

Diesel Engine Motor Driving the Pump
US$ 2,900 - 21,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Brand Name:
LingFeng
Model Number:
WLQ175/45
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
175lpm Flow 450 Bar Pressure Plunger Reciporocating PumpUS$ 3,250 - 21,000MOQ: 1 Unit -
80lpm Flow, 1000 Bar High Pressure Plunger Jet PumpUS$ 9,000 - 28,700MOQ: 1 Piece
-
300lpm Flow 150bar Pressure Plunger Reciporocating PumpUS$ 7,005 - 14,200MOQ: 1 Set
-
70lpm Flow 700bar High Pressure Plunger PumpUS$ 19,600 - 26,500MOQ: 1 Set
-
250lpm Flow 80 Bar Pressure Plunger Reciporocating PumpUS$ 2,000 - 5,000MOQ: 1 Set
Brand Name
LingFeng
Model Number
WLQ175/45
Theory
Other, Reciprocating triplex plunger pump
Structure
Other, Triplex Plunger Pump
Usage
Water
Power
Hydraulic
Standard or Nonstandard
Standard
Fuel
Other, Motor /Diesel
Pressure
High Pressure
Application
Other, Power Source
Features of Triplex Pumps:
1:It's the generating equipment of high pressure
injection.
2:Different from the traditional single-stage pump, it is horizontal triplex plunger reciprocating pump
3:Out pressure is 10-100Mpa
4:Application:high pressure cleaners ,which apply in oil field,suagr cane factory,electricity station,sewer pipe cleaning , etc .
NOTE:
pressure & flow is adjustable according to user's request!
| Technical Parameters | |||||||||||
| Dimension(L*W*H):0.87*0.85*0.44m | Dimension(L*W*H):0.925*0.86*0.49m | Dimension(L*W*H):1.02*0.99*0.53m | |||||||||
| Weight:468kg | Weight:546kg | Weight:906kg | |||||||||
| Rotating Speed:1480r/min | Rotating Speed:1480r/min | Rotating Speed:1480r/min | |||||||||
| Model No | Flow | Pressure | Power | Model No | Flow | Pressure | Power | Model No | Flow | Pressure | Power |
| (WLQB) | (L/Min) | (Mpa) | (Kw) | (WLQB) | (L/Min) | (Mpa) | (Kw) | (WLQB) | (L/Min) | (Mpa) | (Kw) |
| 80/35 | 80 | 35 | 55 | 60/70 | 60 | 70 | 75 | 55/100 | 55 | 100 | 110 |
| 63/50 | 63 | 50 | 55 | 135/30 | 135 | 30 | 75 | 173/30 | 175 | 30 | 110 |
| 70/50 | 70 | 50 | 75 | 45/100 | 45 | 100 | 90 | 90/75 | 90 | 75 | 132 |
| 55/50 | 55 | 50 | 55 | 70/70 | 70 | 70 | 90 | 80/100 | 80 | 100 | 160 |
| 135/20 | 135 | 20 | 55 | 90/50 | 90 | 50 | 90 | 175/45 | 175 | 45 | 160 |
| 250/11 | 250 | 11 | 55 | 300/15 | 300 | 15 | 90 | 260/30 | 260 | 30 | 160 |
...
