WLQ high-pressure water cleaning machine is the maturity and stability products.
Cold water high-pressure cleaners
Clean machines, vehicles and buildings daily with high pressure and a high flow rate. Cold water high-pressure cleaners remove even stubborn dirt and are Ideal for large areas.

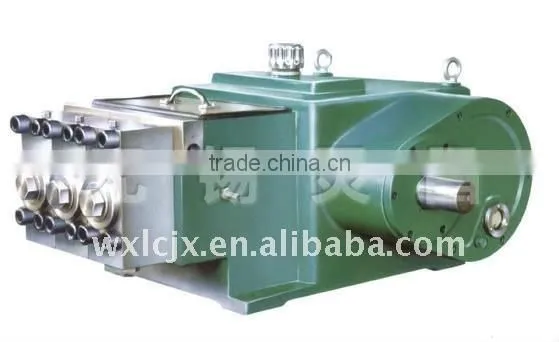

Details of triplex plunger pump:
- Three separated plunger is convenient for dismounting
- Materials: nickel base alloy
- secondary purification filter system, which is overseas newest advanced technology, make pump durable for use.
| Technical Parameters | |||||||||||
| Dimension(L*W*H):0.87*0.85*0.44m | Dimension(L*W*H):0.925*0.86*0.49m | Dimension(L*W*H):1.02*0.99*0.53m | |||||||||
| Weight:468kg | Weight:546kg | Weight:906kg | |||||||||
| Rotating Speed:1480r/min | Rotating Speed:1480r/min | Rotating Speed:1480r/min | |||||||||
| Model No | Flow | Pressure | Power | Model No | Flow | Pressure | Power | Model No | Flow | Pressure | Power |
| (WLQB) | (L/Min) | (Mpa) | (Kw) | (WLQB) | (L/Min) | (Mpa) | (Kw) | (WLQB) | (L/Min) | (Mpa) | (Kw) |
| 80/35 | 80 | 35 | 55 | 60/70 | 60 | 70 | 75 | 55/100 | 55 | 100 | 110 |
| 63/50 | 63 | 50 | 55 | 135/30 | 135 | 30 | 75 | 173/30 | 175 | 30 | 110 |
| 70/50 | 70 | 50 | 75 | 45/100 | 45 | 100 | 90 | 90/75 | 90 | 75 | 132 |
| 55/50 | 55 | 50 | 55 | 70/70 | 70 | 70 | 90 | 80/100 | 80 | 100 | 160 |
| 135/20 | 135 | 20 | 55 | 90/50 | 90 | 50 | 90 | 175/45 | 175 | 45 | 160 |
| 250/11 | 250 | 11 | 55 | 300/15 | 300 | 15 | 90 | 260/30 | 260 | 30 | 160 |
- Seaworthy packing will be provided.
- All the goods shall be delivered within 20 work days since the Buyer has issued the irrevocable letter of Credit at sight with value of 95% of total contract .
- In case of delay in the establishment of the deposit ,the deliveries will be delayed proportionately the penalty of 2% of the contract value for each delay week but not over 5 % of the contract value
- Our company will departure experienced engineers to customer‘s side to giving instruction and suppervision for installation and commissioning.
- Lingchang has well equipped facilities and manpower who can provide total solution to the customer to ensure easy and trouble free operation of the clean machines.
- Customized solutions includes.
- - Process development
- - Design manufacturing
- - Installation and Commissioning
- - Training
- The buyer will pay for the return airfare ,the local transportation,meals and accommodation during installation and suppervision.
1.Q:Are you a factory or trading company?
A:We are a 15+years factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Wuxi City, Jiangsu Province,China.
You can fly to Shuofang International Airport, Southern Jiangsu directly ,We can pick up you here.
3.Q:How can I get some samples?
A: We are honored to offer you samples for small part but for all-sets we can not provided.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority”. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has experience QC.
Ultra High Pressure Water Jetting
Recognising a need in the market place for ultra high pressure cleaning, Lingchang machnery has foucus on cold pressure washers, static or trailer mounted mobile equipment and diesel or electric powered.
Green cleaning
Ultra high pressure (in some industries known as ultra high pressure water jetting) can be used for many types of cleaning applications where other methods have failed. uses just water – no chemicals, non abrasive - no blasting or burning. It is a safe, cost effective cleaning method.
The ultra high pressure water jetting machines are built with high quality diesel or electric engines always with environmental issues at the top of the agenda.
Because Ultra High Pressure water jetting equipment uses simply water, the waste produced is less hazardous, therefore waste disposal is safer and costs vastly reduced.
Lingchang's industrial high pressure water jetting equipment in the south west of China serving industries such as marine and offshore, naval , highway, railroad, aviation, council, surface preparation, chemical processing, injection moulding, concrete removal and preparation, metal processing, tank cleaning and food processing.
The possibilities for ultra high pressure cleaning are, however, far reaching and new applications are brought to our notice each day. If you work in an industry where you think Lingchang cleaning may be appropriate, we would be pleased to hear from you.
We are happy to carry out tests either on site or at our own premises, depending upon what is to be cleaned.
You can use ultra high pressure washers for:
Tank cleaning, hull cleaning, marine growth removal, concrete preparation, concrete removal, white line removal, road marking removal, paint removal, rust removal, offshore maintenance, gypsum removal, grease removal, injection moulding component cleaning, nuclear decontamination as a part of the nuclear waste disposal procedure, returning surfaces to bright metal, hygienic food processing component cleaning…and many more applications, please enquire!
Lingchang is the largest pressure washing equipment in the South West. With 20 years experience and an enviable reputation, Lingchang supplies and services a wide range of of equipment including pressure washers, steam cleaners and scrubbier driers.
- Lingchang believes in customer satisfaction and provides continous technical support through warranty and service contracts. technicians regularly visit the customers to conduct tests and provide training to ensure smooth and reliable operation.
- The damage and malfunction caused by quality within warranty are repaired or replaced by the manufacturer.
- Within warranty, the manufacturer should respond to the buyer’s calls and faxes within 4hours and get to the site to repair within 24 hours.
- After the warranty, the manufacturer should respond to the buyer’s calls and faxes within 4 hours and get to the site to repair within 48 hours if the buyer needs paid service.
- The manufacturer offers free service for the equipment. Favorable spare parts, accessories and service should be provided for a long time.
- The warranty is one year after the check and acceptance of the high pressure water cleaning machine. The main steel structure, motor, hydraulic valve and starter control cabinet are guaranteed for two years.
....
