Home > Instruments & Meters > Meter for Liquid & Gas > Water Meter > LXSG-15E-1 Multi-jet Dry Type Water Meter

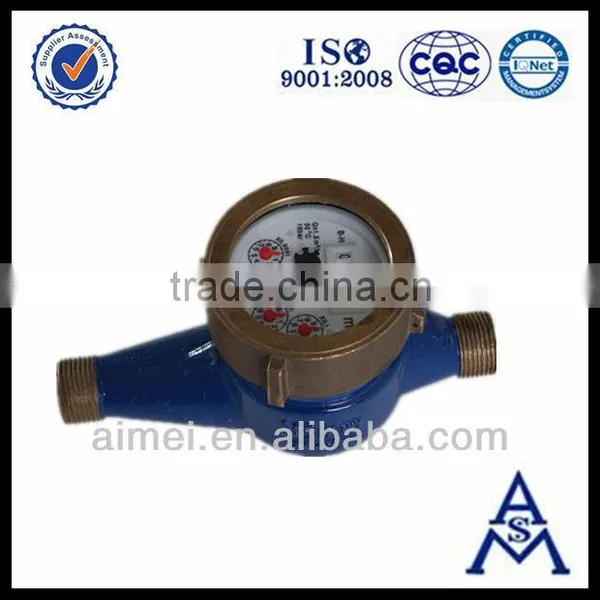

LXSG-15E-1 Multi-jet Dry Type Water Meter
US$ 2 - 50
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Aimei
Model Number:
LXSG-15E-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi Jet Wet Type Water MeterLXS-15E-50EUS$ 2 - 70MOQ: 1000 Pieces -
Multi Jet Wet Type Hot Water Meter LXSR-15E-50EUS$ 2 - 70MOQ: 1000 Pieces
-
Volumetrice Rotary Piston Water Meter LXH-15A-40AUS$ 2 - 180MOQ: 1000 Pieces
-
LXL-80E-200EUS$ 5 - 200MOQ: 50 Pieces
-
Single Jet Dry Type Water MeterNegotiableMOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Aimei
Model Number
LXSG-15E-1
Specifications
Measuring the volume of potable water which consumed in houshold or a resident unit.Easy reading,good antifreezing property.APPLICATION:
This range of water meter is used to measure the total quantity of cold potable water which consumed in houshold or a resident unit, passing through the pipeline.
FEATURES:
This is a dry-type water meter.Its counting and measuring devices are driven by magnetic coupling. It is characterized by easy reading,good antifreezing property and ability to permanently keep the reading clear.
WORKING CONDITION:
COMPLIANCE WITH STANDARD: ISO 4064 (GB/T778-1996)
INDICATING ERROR:
At low zone is±5% from minimum flow rate(qmin)to transitional flow rate(qt)exclusive boundary
At high zone is±2% from transitional flow rate(qt) to overload flow rate(qs)
This range of water meter is used to measure the total quantity of cold potable water which consumed in houshold or a resident unit, passing through the pipeline.
FEATURES:
This is a dry-type water meter.Its counting and measuring devices are driven by magnetic coupling. It is characterized by easy reading,good antifreezing property and ability to permanently keep the reading clear.
WORKING CONDITION:
Water temperature: ≤40 for cold water meter
≤90 for hot water meter
Water pressure: ≤1MPa or 1.6MPa optional
(10bar or 16bar optional)
COMPLIANCE WITH STANDARD: ISO 4064 (GB/T778-1996)
INDICATING ERROR:
At low zone is±5% from minimum flow rate(qmin)to transitional flow rate(qt)exclusive boundary
At high zone is±2% from transitional flow rate(qt) to overload flow rate(qs)
Type |
Size (mm) |
Class |
Qn Max. Flow |
Qp Nominal Flow |
Qn Transitional Flow |
Qmin Min. Flow |
Min. Reading |
Max. Reading |
M3/h |
L/h |
M3 |
||||||
LXSG-15E-1 |
15 |
A |
3 |
1.5 |
150 |
60 |
0.0001 |
99999 |
B |
120 |
30 |
||||||
