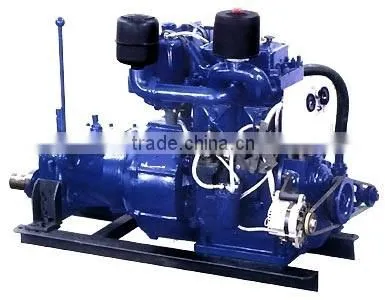

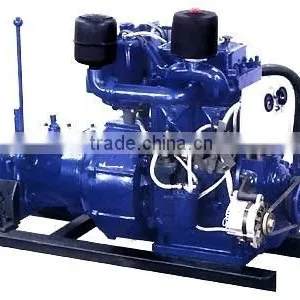

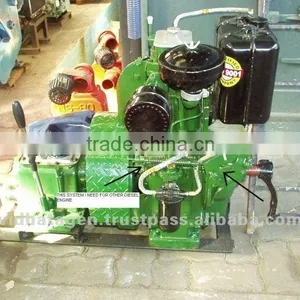

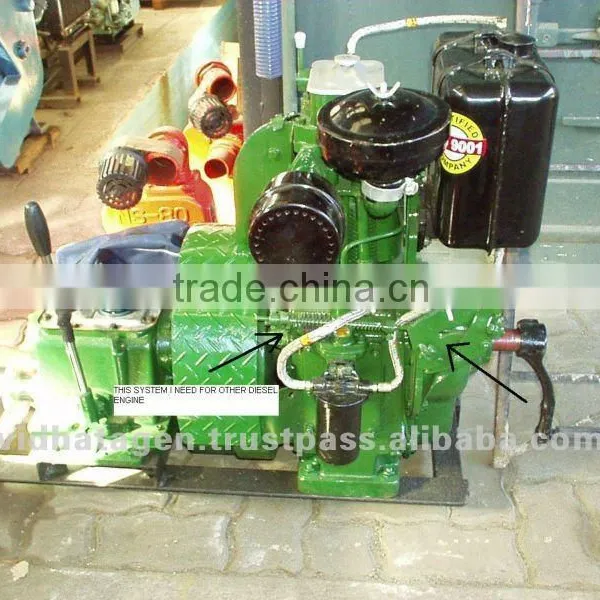

10 HP PETER TYPE MARINE DIESEL ENGINE WITH CLUTCH

10 HP PETER TYPE MARINE DIESEL ENGINE WITH CLUTCH thumbnail-1
10 HP PETER TYPE MARINE DIESEL ENGINE WITH CLUTCH thumbnail-2
10 HP PETER TYPE MARINE DIESEL ENGINE WITH CLUTCH thumbnail-3
10 HP PETER TYPE MARINE DIESEL ENGINE WITH CLUTCH photo-1
10 HP PETER TYPE MARINE DIESEL ENGINE WITH CLUTCH photo-2
10 HP PETER TYPE MARINE DIESEL ENGINE WITH CLUTCH photo-3
EUR 1,200 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Usage:
Boat
Fuel:
Diesel
Stroke:
4 Stroke
Contact Supplier Request Quote Chat Now
Basant Products India
Payment & Shipping
Payment Methods:
Port of Shipment:
JNPT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Usage Boat
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Electric Start
Place of Origin Uttar Pradesh, India
Brand Name VIDHATA(BASANT)
Model Number VMARINE15
Condition New

Specifications

DIESEL ENGINE WITH MANUAL MECHNAICAL CLUTCH SYSTEM ON AND OFF TYPE AVAILABLE FROM 5 TO 35 hP AIR COOLED AND WATER COOLED TYPES,

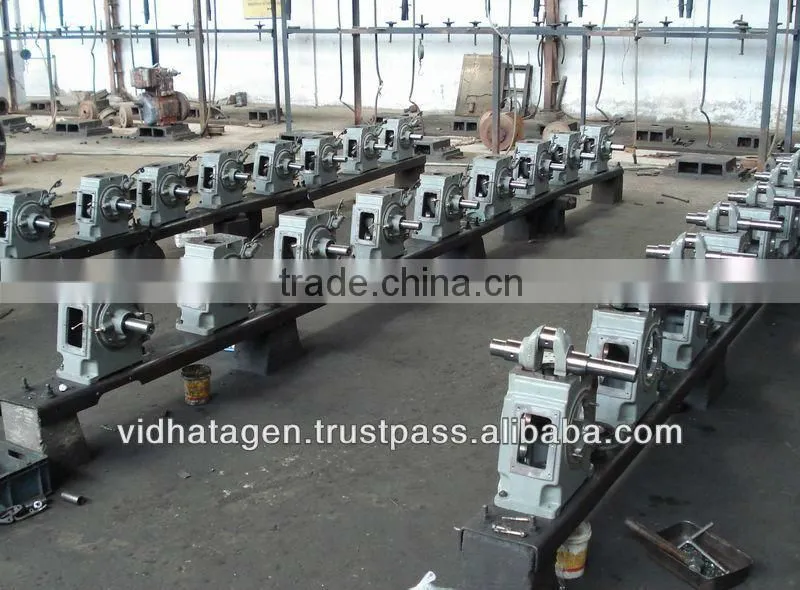

Diesel engine with (PTO), is an anx. gear box which when coupled to vehicles transmit power to pumps, compressors which are used for operating attatchments. Our precision engineered and heavy duty power take off shafts (PTO shafts) meet the stringent specifications of various tractor and automotive manufacturers worldwide. The PTO are available in different specifications and are made up of high quality metals that are brushed and polished for smooth and rust free operations.



netural, AND FORWARD ONLY

BRIEF SPECIFICATIONS

TYPE

Vertical, Single / Double Cylinder, Water Cooled, Totally Enclosed, Compression Ignition, Four Stroke, Cold Start, Diesel Engine.



COMBUSTION CHAMBER

Direct injection in open type combustion chamber provided in an aluminium alloy piston with long stem multihole nozzle resultsinto low fuel consumption and easy starting.



FUEL SYSTEM

High Speed diesel is supplied to the fuel pump by gravity feed through an efficient replacable paper element type main filter. Industrial type double bowl heavy duty type filter BOSH make also available.



LUBRICATION

Engine’s moving parts are lubricated by force feed and partly by splash lubrication. A throwaway type bypass filter is provided for filtering the lubricating oil. Lub. Oil is supplied under constant pressure by lub. Oil pump. Centrifigal type Lub. Oil cleaner also available for long engine life.



GOVERNING

A sensible mechnanical centrifugal type governer mounted on the camshaft gear. Speed variation is controlledwithin limits to comply with class B1 governing as per IS:10001 (GENERAL PURPOSE)



COOLING

Engine is continuously cooled by flow of water. Either by Radiator mounted on engine or direct water supply. Front radiator mounted engines also available.



ROTATION

Standard rotation is clockwise looing at fly wheel. Engine with reverse rotation can also be provided on demand.



STARTING

The engine is designed for starting by hand. Electric Start Provision can also be provided against specific reauirement. Dynamo battery chargers also available.



DRIVE

Standerd power take off is from flywheel side. Power Take off from gear end at half speed can be provided on demand.



STANDERD ACCESSORIES

Starting handle, Exhaust Silencer, Air Cleaner, Spanner Set & Screw Driver.



OPTIONAL ACCESSORIES

Drum Pulley, Variable speed Lever, Fly wheel Guard, Engine lift hook.



POLLUTION CONTROL DEVICE

Single Element Catalytic Converter for control of NOx, CO, THC & HAPs.



SOUND & VIBRATION CONTROL DEVICE

We offer Canopy, Industrial type Air cleaner & Silencer, Round Duct Expansion Joints, Anti Vibration Mounts etc.



SOUND & VIBRATION CONTROL DEVICE

We offer Canopy, Industrial type Air cleaner & Silencer, Round Duct Expansion Joints, Anti Vibration Mounts etc.
