Home > Industrial Equipment & Components > Engine & Part > Engine > Diesel Engine 1500 RPM

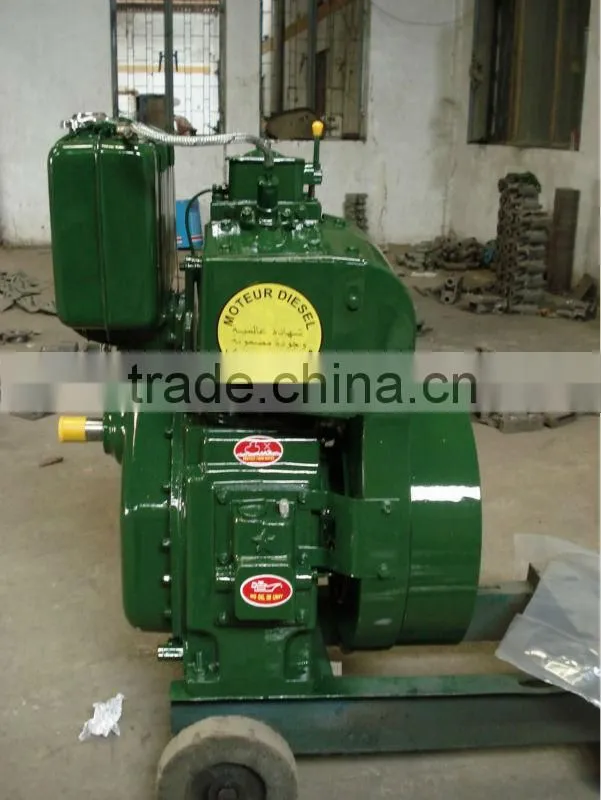

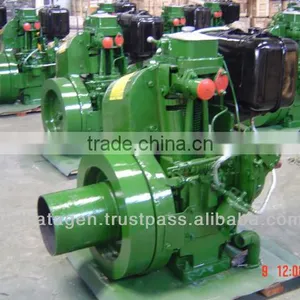

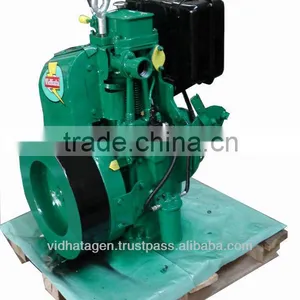

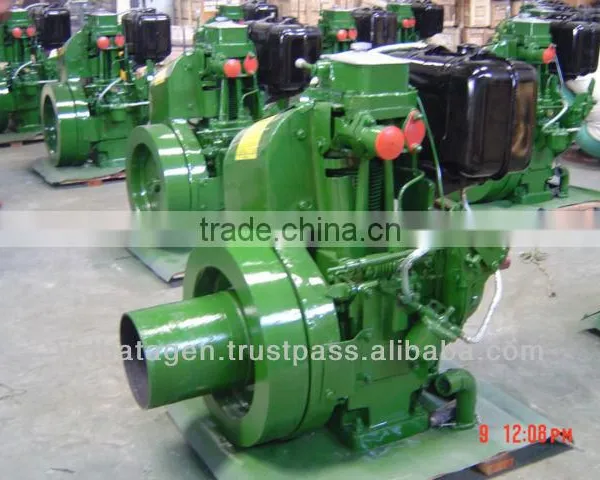

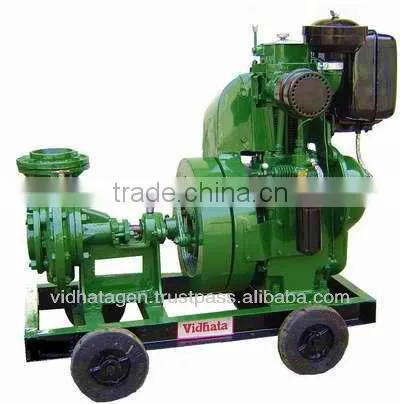

Diesel Engine 1500 RPM

Name: Diesel Engine 1500 RPM
Brand: Vidhata
SKU: 122981079

Negotiable MOQ: 1 Twenty-Foot Container (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Usage:

Other, Irrigation, Prime Mover

Fuel:

Diesel

Contact Supplier Request Quote Chat Now

Basant Products India

Payment & Shipping

Payment Methods:

Port of Shipment:

JNPT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Usage Other, Irrigation, Prime Mover

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Air-cooled

Start Other, Hand start

Place of Origin India

Brand Name Vidhata

Model Number VH-7

Weight 220 KG

Certification ISI, ISO

Warranty 12 MONTHS

After-sales Service Provided No overseas service provided

Specifications

10 H.P Cold Starting, Single/Double Cylinder, vertical, Air Cooled, totally enclosed, compression ignition

BRIEF SPECIFICATIONS

TYPE

Vertical, Single / Double Cylinder, Water Cooled, Totally Enclosed, Compression Ignition, Four Stroke, Cold Start, Diesel Engine.

COMBUSTION CHAMBER(VIDHATA)

Direct injection in open type combustion chamber provided in an aluminium alloy piston with long stem multihole nozzle resultsinto low fuel consumption and easy starting.

FUEL SYSTEM

High Speed diesel is supplied to the fuel pump by gravity feed through an efficient replacable paper element type main filter. Industrial type double bowl heavy duty type filter BOSH make also available.

LUBRICATION

Engine’s moving parts are lubricated by force feed and partly by splash lubrication. A throwaway type bypass filter is provided for filtering the lubricating oil. Lub. Oil is supplied under constant pressure by lub. Oil pump. Centrifigal type Lub. Oil cleaner also available for long engine life.

GOVERNING

A sensible mechnanical centrifugal type governer mounted on the camshaft gear. Speed variation is controlledwithin limits to comply with class B1 governing as per IS:10001 (GENERAL PURPOSE)

COOLING

Engine is continuously cooled by flow of water. Either by Radiator mounted on engine or direct water supply. Front radiator mounted engines also available.

ROTATION

Standard rotation is clockwise looing at fly wheel. Engine with reverse rotation can also be provided on demand.

STARTING

The engine is designed for starting by hand. Electric Start Provision can also be provided against specific reauirement. Dynamo battery chargers also available.

DRIVE

Standerd power take off is from flywheel side. Power Take off from gear end at half speed can be provided on demand.

STANDERD ACCESSORIES

Starting handle, Exhaust Silencer, Air Cleaner, Spanner Set & Screw Driver.

OPTIONAL ACCESSORIES

Drum Pulley, Variable speed Lever, Fly wheel Guard, Engine lift hook.

POLLUTION CONTROL DEVICE

Single Element Catalytic Converter for control of NOx, CO, THC & HAPs.

SOUND & VIBRATION CONTROL DEVICE

We offer Canopy, Industrial type Air cleaner & Silencer, Round Duct Expansion Joints, Anti Vibration Mounts etc.

SOUND & VIBRATION CONTROL DEVICE

We offer Canopy, Industrial type Air cleaner & Silencer, Round Duct Expansion Joints, Anti Vibration Mounts etc.

MODEL	AV1	AV2	AV3	AV4	AV5	AV6	AV7
Type	BB/TRB	BB/TRB	BB/TRB	BB/TRB	BB	BB	BB
Rated Power (HP / kW)	5 /3.7	6.5/4.8	8/5.9	10/7.4	12/8.8	14/10.3	18/13.3
Rated Speed (RPM)	1500	1500	1500	1500	1500	1500	1500
Bore (mm)	85	87.5	95	102	87.5	95	102
Stroke (mm)	110	110	110	110	110	110	110
Foundation Bolt's Hole Spacing (mm)	292x140	292x140	292x140	292x140	292x140	292x140	292x140
Crank Axis Height from Base (mm)	203	203	203	203	203	203	203
Fuel Tank Capacity (Liters)	6	6	12	12	12	12	12
Specific Fuel Consumption at Full Load and at standard reference conditions (Gms. / BHP. Hr.) / (Gms. / kW. Hr.)	185/251	185/251	185/251	185/251	185/251	185/251	185/251
Lubricating Oil Sump Capacity (Liters)	3	3	3.5	3.5	7	7	7
Lubricating Oil Consumption (max.) (Liters / Hr.)	0.012	0.022	0.024	0.026	0.033	0.033	0.040
Approximate Net / Gross Wt. (Kgs.)	160/210	170/220	190/240	200/250	260/365	275/385	290/400
Shipping Dimensions (L x W x H) (mm)	635x535 x635	635x535 x635	635x535 x635	635x535 x635	915x610 x890	915x610 x890	915x610 x890
Shipping Volume (m 3 )	0.22	0.22	0.22	0.22	0.50	0.50	0.50
