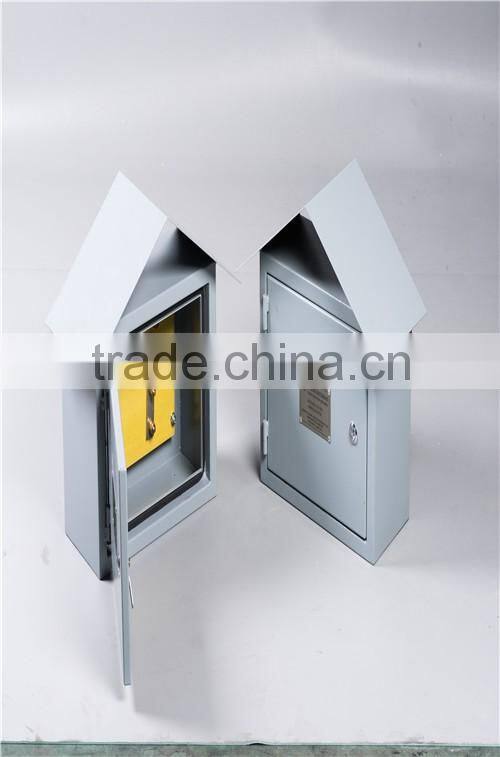

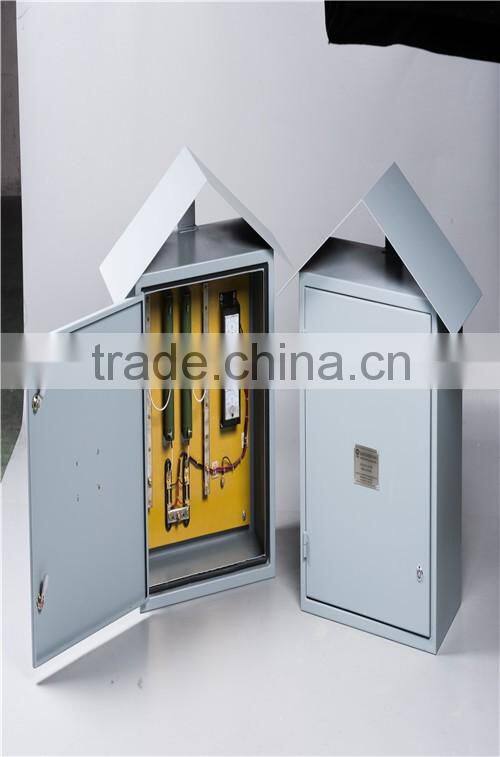

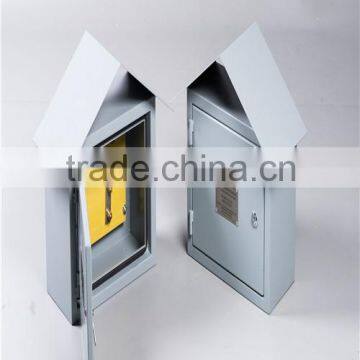

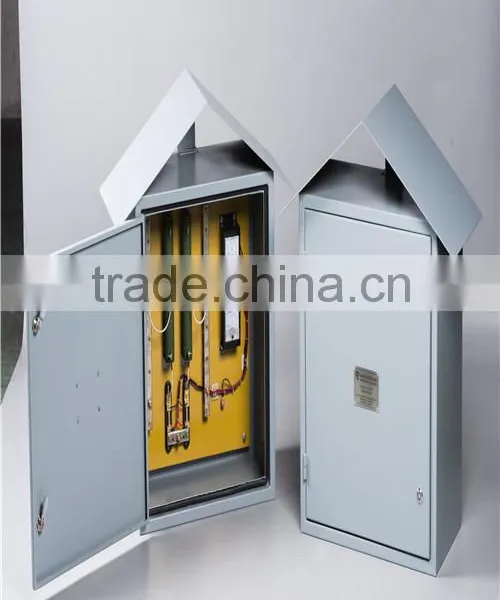

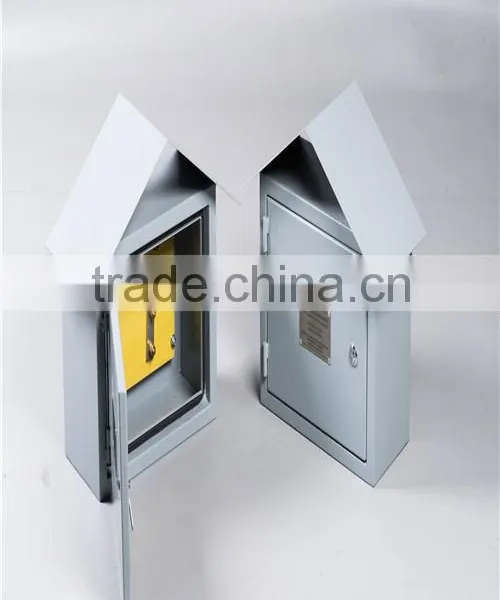

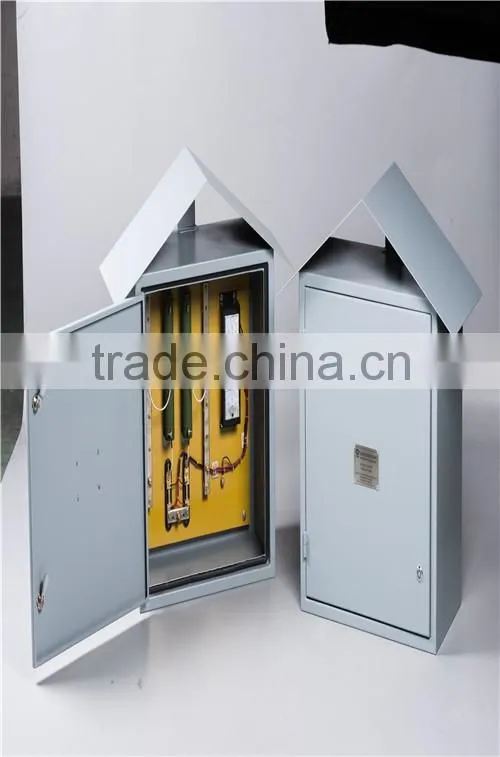

Bond Junction Box for Cathodic Protection
Yuxi manufactures a series type of junction boxs required for a cathodic protection system. Our junction box is designed to use reliably for onshore and marine environments in safe and hazardous areas. It is typically meet NEMA 4X or IP66 protection grade, and we can also manufacture explosion-proof junction box upon on request, the enclosure including sheet steel, stainless steel, cast aluminum and other non-metallic materials. The configuration of internal circuit includes connections, meters, shunts, resistors, remote monitoring, and other electronic parts. All junction boxes can be available with or without support frame, conduits, pipes. We can also offer custom junction box that is made according to design specifications.
Type:
l Standard Junction Box
l Shunt Junction Box
l Shunt & Resistor Junction Box
l Bond Junction Box
l Explosion-Proof Junction Box
l Customized Junction Box
Enclosures:
l Galvanized Steel
l Painted Steel
l Stainless Steel
l Cast Aluminum
l Fiberglass
l Non-Metallic
General Technical Data:
| Enclosure |
Galvanize Steel, Painted Steel Stainless Steel, Cast Aluminum Fiberglass, Non-Metallic |
| Dimensions |
300x200x150mm, 400x300x150mm 500x400x150mm, 600x400x150mm 700x600x150mm, 800x600x150mm Customized size available upon on request |
| Finish | Polished |
| Cooling | Natural Air |
| Grade of Protection | IP66, NEMA 4X/ Explosion Proof |
| Classification | Non Hazardous / Hazardous |
| Mounting Type | Wall / Stand-off Mounted with SS full bolts, nuts & washers |
| Internal components | Lugs, Shunts, Resistors, Select Switch, Ammeter |
| Door | Hinged on left side |
| Security | Lockable door |
| Internal Terminal |
Anode lead M10 ST grade 316L / Brass terminals c/w lock nuts, washers Power feed lead M5 ST grade 316L / Brass terminals c/w lock nuts, washers |
| Identification | Tag plates and Name plate supplied with SS316L with screw sets |
| Ambient Temperature | Up to 55 Degree Centigrade |
| Climate | Onshore or Marine corrosive environment |
| Humidity | 95% at 43 Degree Centigrade |
| Cable Entry | One / two nos. of conduits with hubs or cable glands |
| Documentation |
Drawing, Certificate of Conformity, Factory Acceptance Report |
This type of box is designed to provide a location for the purpose of cathodically interconnecting multiple structures, such as pipelines on both sides of an insulating flange.
Enclosure |
As quested |
Protection Grade |
Non Hazardous or Explosion-Proof |
Number of Circuits |
As quested |
Anode Lead Lug size |
As quested |
Power Feed Lug Size |
As quested |
Type of Entry |
Conduit or Cable gland |
Company Profile
Ningbo Yuxi light alloy Co.,ltd was established in 2003 and we are specialized in manufacturing Magnesium/AluminumExtrusion/casting products. The range of our product line, excellent quality & service, low price over the past ten years have made us one of the leading companies of its kind in China.
It’s our principal aim to provide the highest quality of materials and integrity of services, so our customer can focus all of their efforts in the more profitable services such as design, Marketing.
Taking advantage of the advanced technology and low labor cost, YUXI is always able to provide high quality products and integrity customer services backed with the most competitive price.
Please select us as your honest and reliable partner to save your money and time.
Factory occupation 26600 square meter
Total staff 120
Management & Technical staff 27
Capacity:
- Magnesium Casting: 1,500 tons per year
- Magnesium Extrusion: 1,200 tons per year
- Aluminum & Zinc casting: 2,000 tons per year
- Aluminum & Zinc extrusion: 1,500 tons per year
