aluminum die casting
Yuxi has experienced casting molds and aluminum die casting engineers, closed-end management workshop with a class 280T-1600T die casting machines, maching centers(including gantry machining centers) 300T mold machine, FLY 108 CMM, spectrometers and other 40 sets production and testing equipment, product quality and production cycles can fully meet customer needs.
We have passed TS16949 quality system, with various fork, medium body, pistons, pumps, transmission case housing, automative cylinder heads and outboard motors and other products. Product applications covers automobiles, motorcycle, engine, electronic comunications, electric car, lifting tools, household appliances, agricultural machinery, medical machinery and other fields.

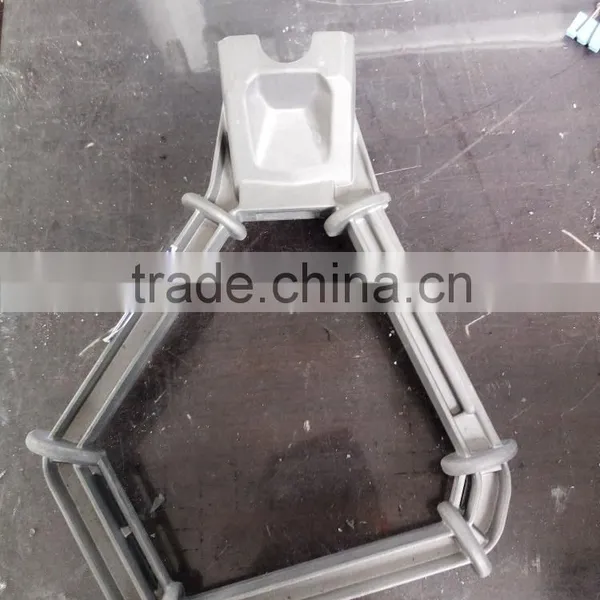

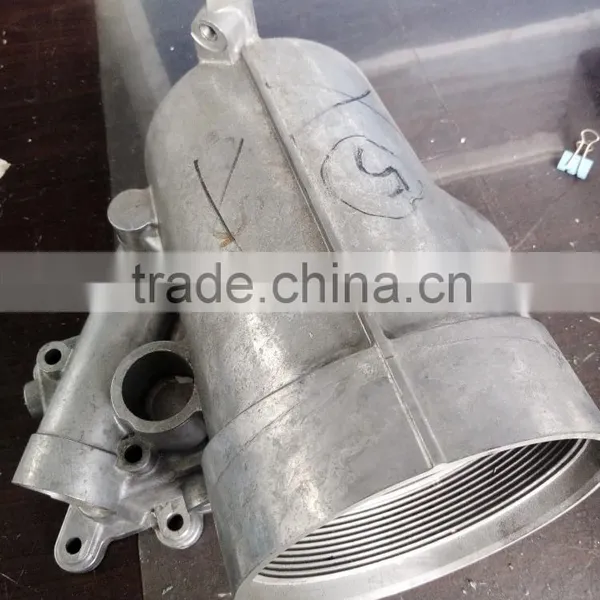

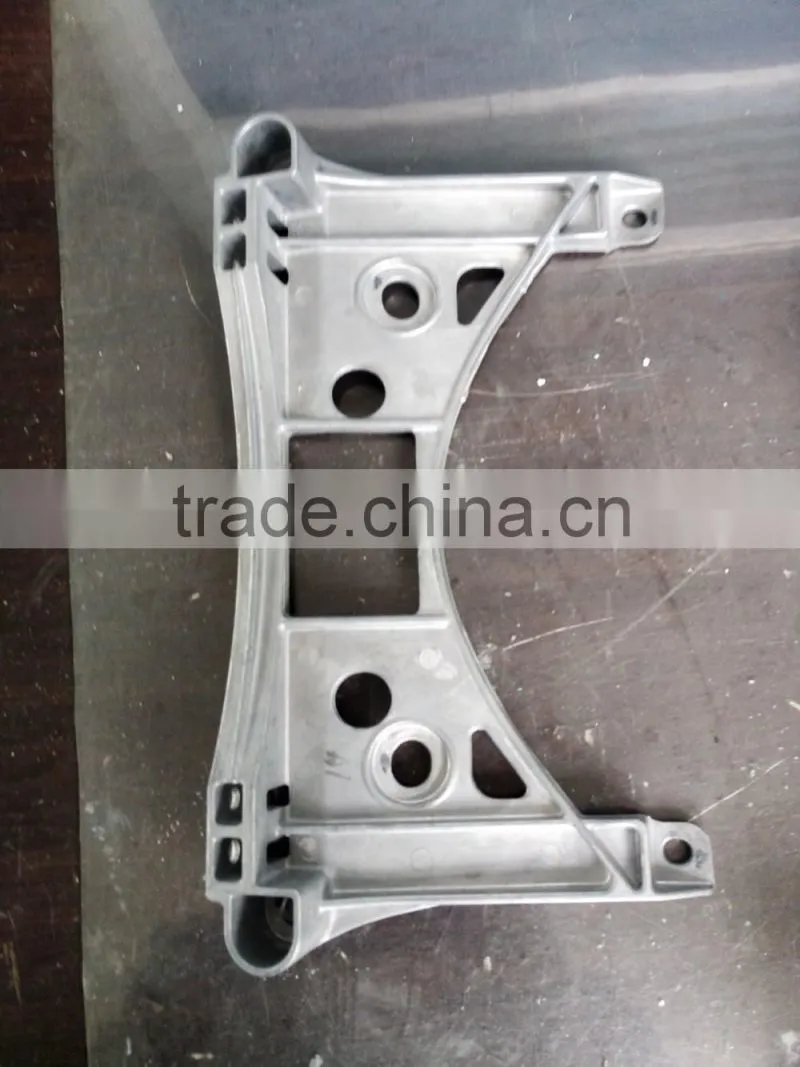

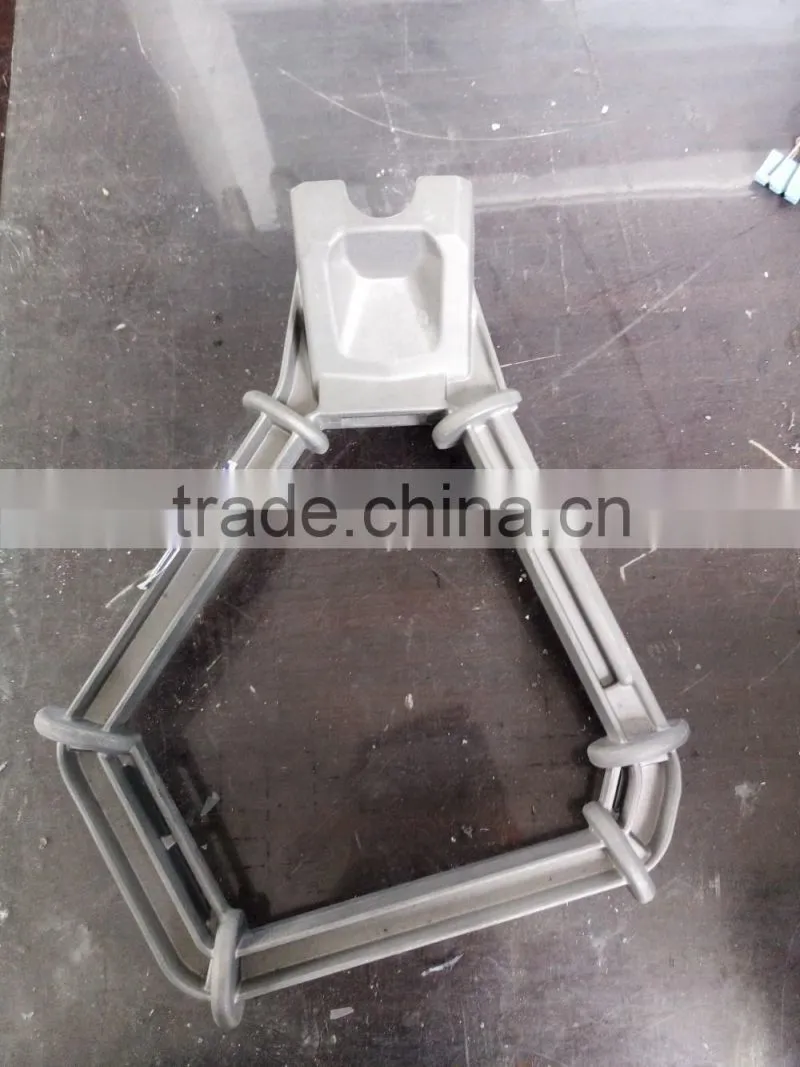

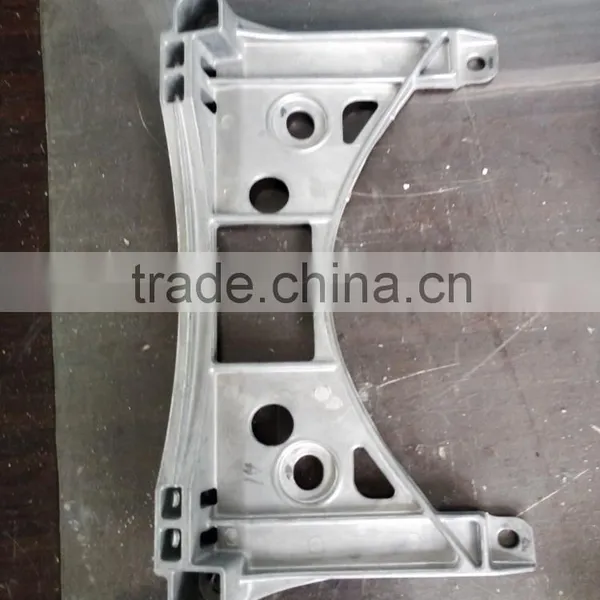

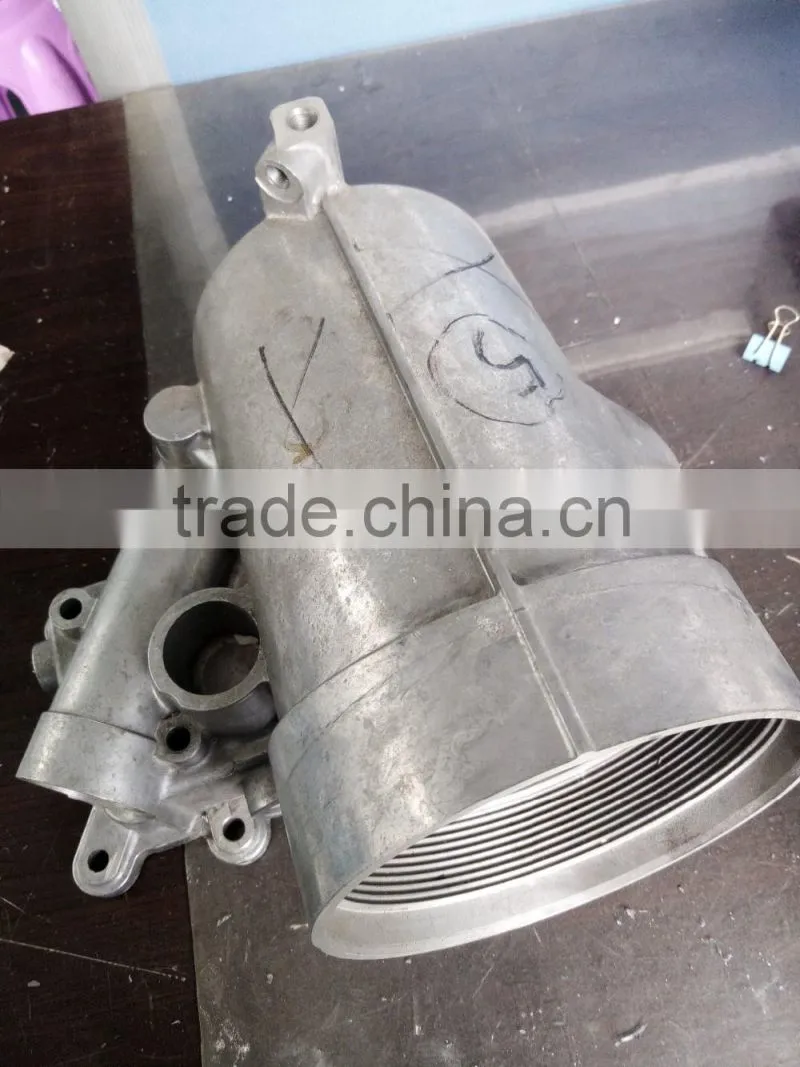

Detailed Picture:
Advantages of aluminum die casting
1. The Products are of good quality:
high precision of dimension, generally equivalent to level 6~7, even can reach level 4. Good surface finish, generally equivalent to level 5~8; high strength and hardness. The strength is generally 25~30% higher than that of sand mold casting. But the elongation decrease about 70%. Stable size, good compatibility. Aluminum alloy castings can be up to 0.5mm. The smallest pore size is 0.7mm. The minimum pitch is 0.75mm.
2. High production efficiency:
The machine productivity is high, such as domestic JIII type 3 horizontal cold aluminum die casting machine can work 600~700 times in 8 hours. Small hot chamber die casting machine can work 3000~ 7000times in 8 hours. The die casting aluminum alloy can work hundreds of thousands of times or even millions of times, easy to realize mechanization and automation.
3. Good economic effect:
its accurate size and smooth surface can be used directly without second mechanic processing. Not only can it improvethe utilization rate of metal, but also it reduces a lot of processing equipment and working hours.
Specification:
| Product Name | Aluminum die casting product |
| Chemical Composition | aluminum material: 360, A360, 380, A380 |
| Appearance Finish | Shot Blasting, painting, chrome painting, powder coating |
| Application | automobile, motrocycle, engine, electronic communications, electric car, lifting tools, household appliances, agricritural machinery, medical machinery and other fields |
| Production and Inspection Instrument | Caliper, Coordinate Measuring Maching, Bench Drilling Machine |
| Package Method | Wooden Pallet, Paper Box |
| Design Software | AutoCAD, Pro/E, UG, Solidworks, Climatron |
| Mould Used | GH-007,GH001, GH0010,GH009 |
| Average Design Tiime | 15 days |
| Average Sample Time | 4 days |
| Production Time | 4 days |
| Minimum Quantity | 2000 pieces |
| Seaport | Beilun Port |
Production Process:
Die Casting→Remove the reduntant material→Trimming→Shot blasting→Bench Drilling→Cleasing→Final Inspection→Packaging

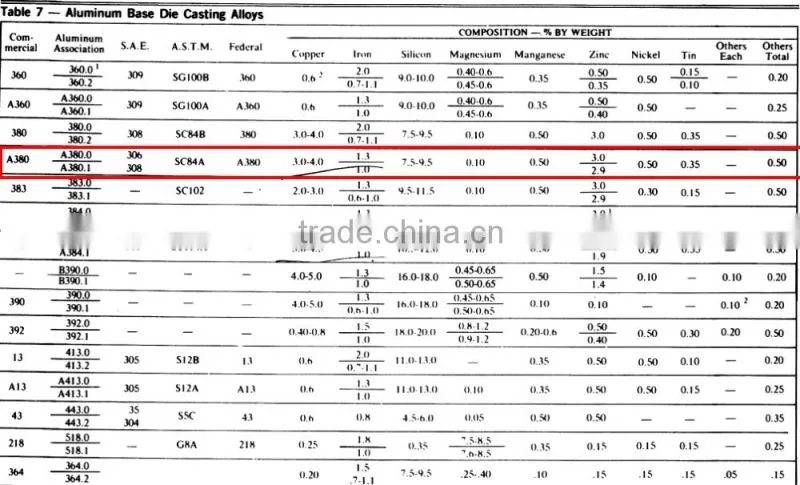

Material Alloy Chart:
Production Display:

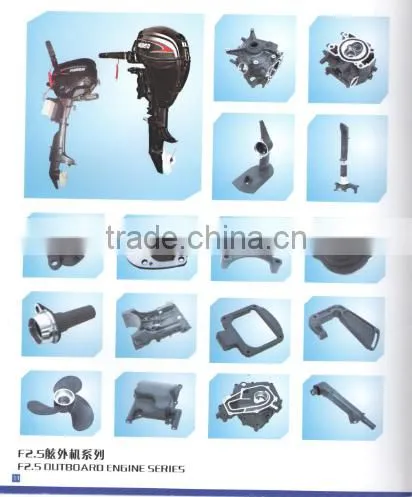

F2. OUTBOARD ENGINE SERIES

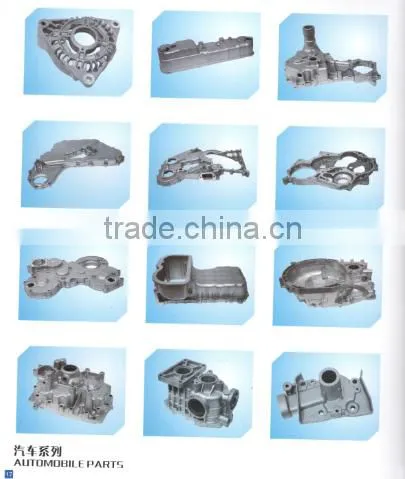

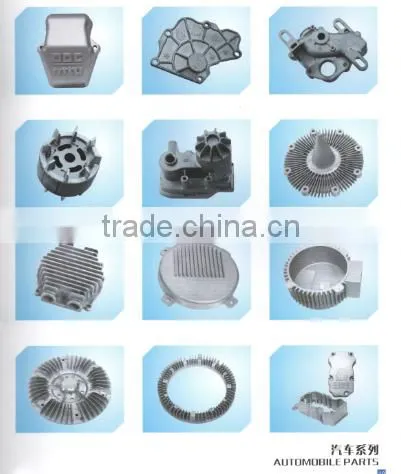

AUTOMOBILE SERIES

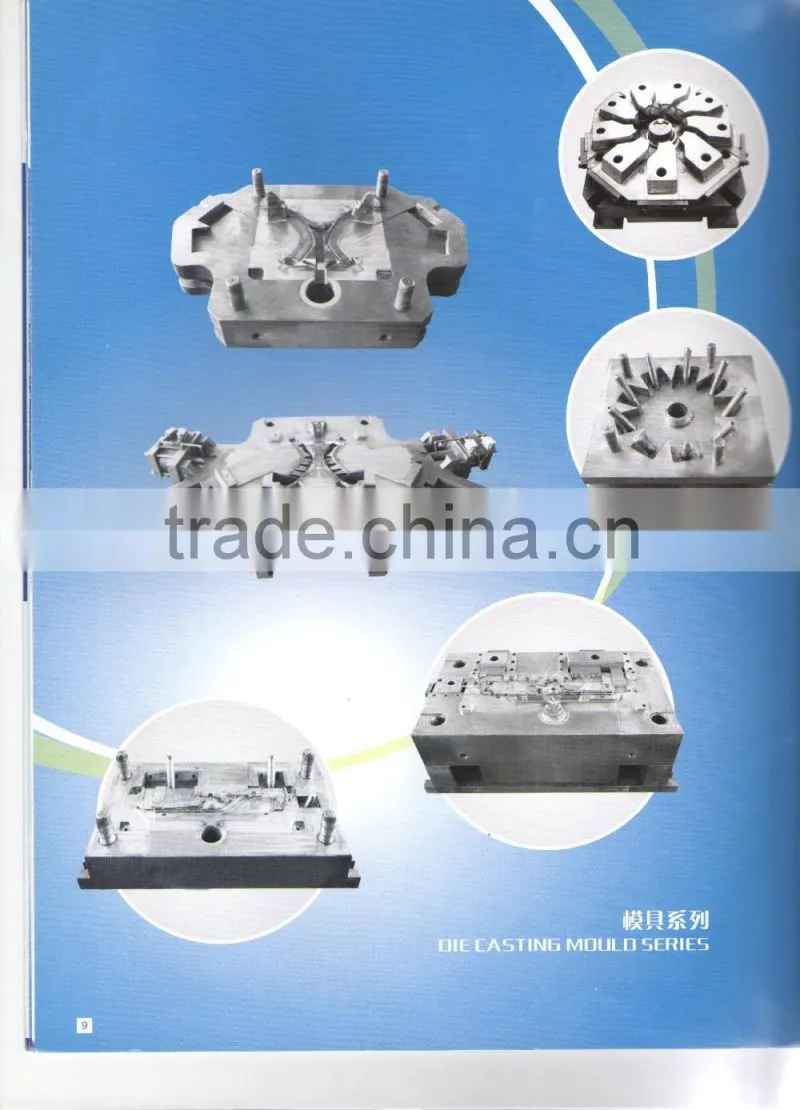

DIE CASTING MOULD SERIES

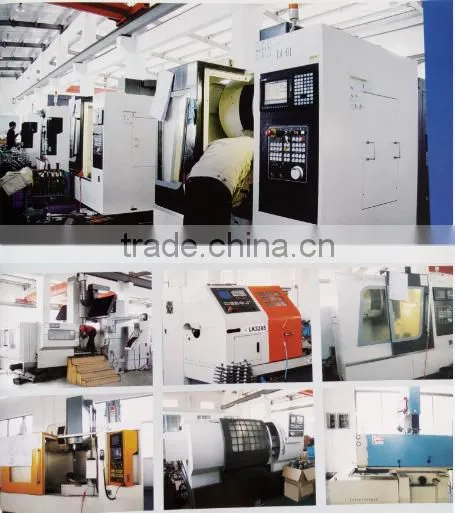

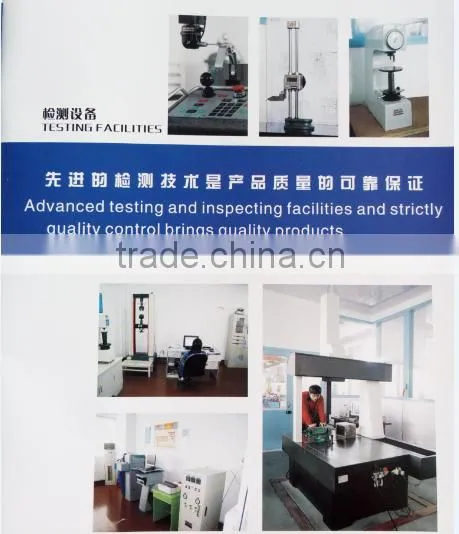

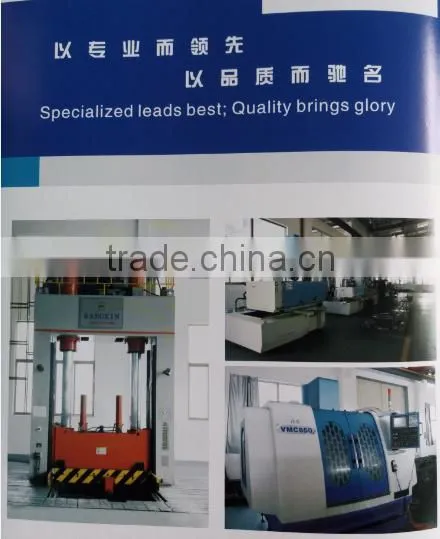

Device and Instrument:
Yuxi has over ten of die casting machines with full range of processing ability including 280T, 400T, 800T, 1000T, 1250T, 1600T, Gantry Machining centers, CNC machinging centers, electric impulse, linear cutting machines, punching machines, CNC lathes, radial drill. 300T mould closing device, 32T Gantry crane etc to meet all grades of products and the most demanding requirements in qualit and the prompt delivery of products.
