Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > High Quality 15 hp Pumpset

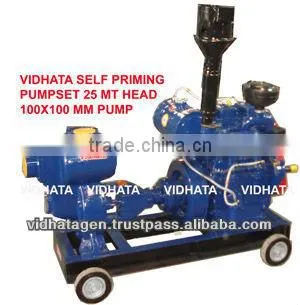

High Quality 15 hp Pumpset

Name: High Quality 15 hp Pumpset
Brand: Vidhata
SKU: 122980313
Availability: InStock

Negotiable MOQ: 2 Units (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Uttar Pradesh, India

Brand Name:

Vidhata

Theory:

Centrifugal Pump

Contact Supplier Request Quote Chat Now

Basant Products India

Payment & Shipping

Payment Methods:

Port of Shipment:

jnpt

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Uttar Pradesh, India

Brand Name Vidhata

Theory Centrifugal Pump

Structure Other

Usage Oil

Power Electric

Fuel Diesel

Specifications

Irrigation diesel engine pumpset
for water and
de watering diesel operated
long life
1500 rpm lister diesel engine

DIESEL OPERATED, WITH PETTER/LISTER INDIAN STYLE ENGINE)

PRIVATE ENGINE H.P.	Engine Rpm	NO OF CYL.	PUMP SIZE MM	HEAD RANGE IN METER	DISCHARGE LIT./SEC.	GROSS WT. KG. (APPR.)	COUPLE SET PACKED WEIGHT KG.(APPR.)	PACKING CASE SIZE CM.
4.5	1500	1	65x50	10 to 13	16 to 10	125	220	96x58x81
5.0	1500	1	80x65	11 to 16	22 to 14	202	314	104x64x96
6.5	1500	1	80x65	9 to 20	26 to 15	210	322	104x64x96
7.5	1500	1	100x80	9 to 15	31 to 14	230	342	104x64x96
8.0	1500	1	100x100	9 to 16	32 to 14	210	322	104x64x96
10.0	1500	1	125x125	7 to 17	52 to 29	275	385	115x64x100
6.5	1500	1	125x125	9 to 9	36 to 20	275	385	115x64x100
8.0	1500	1	150x150	6 to 19	37 to 22	275	380	115x64x100
20.0	1500	2	100x125	14 to 20	100 to 180m3/hr	380	495	130x64x100
28	1500	2	150x150	6-10	100L/S	390	500	130x64x100
30	1500	2	200x200	5-6	150L/S	550	750	140x70x120
28.0	1500	2	100x125	22 to 20	140 to 210m3/hr	390	495	130x64x100
28	1500	2	80x80	40	50m3/h	420	520	130x64x100
10	1500	1	80x80	26 to 35	23 to 6 L/S	290	395	115x64x100

ENGINE
Rating	3.5 to 30.0 HP
Cooling	Water/ Air Cooled
No. of cyl.	One / Two
No. of cyl.	High speed Diesel
Type	Vertical ,4-stroke, compression ignition
Injection	Direct by multi-hole nozzle
RPM	1500-1800
Sp. Fuel Con.	169 to 172 grams/hp-hr
Fuel tank	5 to10 liters
Rotation	Clockwise looking at the flywheel
Starting	Handle start with cranking Or 12 volt start optional

USE

These water pump set are used to lift water from deep well, lake, ponds, river etc for irrigation these type of pump set are used widely by thousands of Asian & African farmers as the pump and engine design are simple so they are long life and easy reparable and long lasting performance. Main feature was low RPM 1500 so that minimum wear & tear of spares. Engines (Hand Start or electric start optional) between 4 and 28 H.P Direct Coupled to Water Pumps, either Centrifugal or Self Priming Sets should be built on steel base. Stationery on the steel base, and Portable using Rubber Wheels (Coasters), and handle in order to move the set from one place to another. The Engines of those sets are cooled automatically from the pumps, as the pumps sends the cold water through a hose to the Cylinder head as an intake. The outlet side for warm water is the hopper cover. This way the engine is kept cool during the operation. The outlet water is not wasted, because it is used for irrigation also.

STANDARD PARTS

Air Cleaner, Silencer, Wrench Set, Screw Driver, Starting Handle, One Bag, Oil Can , Instruction Manual.

APPLICATION

These Pump Sets can be used in Agriculture ,Irrigation, Mining, Forestry Culture, Fishing and other purposes.

ADDITIONAL PRODUCT INFORMATION

User Application Sector	Power, Construction and Earthmoving, Agriculture, Industry
User Sub Sector	Power generation, Infrastructure, Large community irrigation schemes, Farm irrigation, Harvesting, Food processing
Industry Sector	Diesel power, Construction Equipments, Aquaculture
Application Areas	Prime movers, Prime Mover, Pumping systems, Flood irrigation, Agricultural implements, Fluid handling

WE CAN ALSO PROVIDE DIESEL ENGINES WITH MUD PUMPS & SELF PRIMING PUMPS AS PER REQUIREMENTS

MUD PUMPSET, SELF PRIMING TYPE

SIZE – 4X4 INCH

WE CAN ALSO SUPPLY PUMPSET AS PER YOUR SPECIFICATIONS

Different type of pumps also available and we can also make high head pump set, diesel engine driven, Loose and fast type & direct couple also available, please send us your requirements of pump set with complete required head in meters, discharge required and suction size you want, these pump set and high efficient and built for long life service with out any problem. We can make centrifugal water pump set up to 150 MM size with diesel engine 28 H.P water or air cooled.
