Aluminum anode for ballast tank
YUXI offers a series of Aluminium anode which is made from different kinds of alloy suitable to use in seawater environment.The anode have satisfactory circuit potential and capacity which can fulfil your high level requirement.Please find our typical anode specification and dimensions below, we also make specific Aluminium anode upon receipt of your requirement.
Chemical Composition
| Type |
Zn % |
In % |
Cd Max % |
Si % |
Fe Max % |
Cu Max % |
Mg % |
Ti % |
Al % |
| GALVALUM III | 2.0-6.0 | 0.01-0.2 | - | 0.08-0.20 | 0.13 | 0.006 | remainder | ||
| DNV RP B401 | 2.5-5.75 | 0.015-0.040 | 0.002 | 0.12max | 0.09 | 0.003 | remainder | ||
| AL-ZN-IN-MG-TI | 4.0-7.0 | 0.020-0.050 | - | 0.10max | 0.15 | 0.01 | 0.5-1.5 | 0.01-0.08 | remainder |
| Yuxi can also adjust the chemical composition as per client's specification. | |||||||||
Electrochemical Properties
| Open Circuit Potential | Closed Circuit Potential | Actual Capacity | Current Efficiency | Consumption Rate |
Solubility Property |
| -1.05 to -1.18 | -1.05 to -1.12 | ≥2600 | ≥90 | ≤3.7 | Surface dissolutes uniformly. |
|
Remark: 1.Saturated calomel reference electrode 2. Natural seawater or artificial sea water | |||||

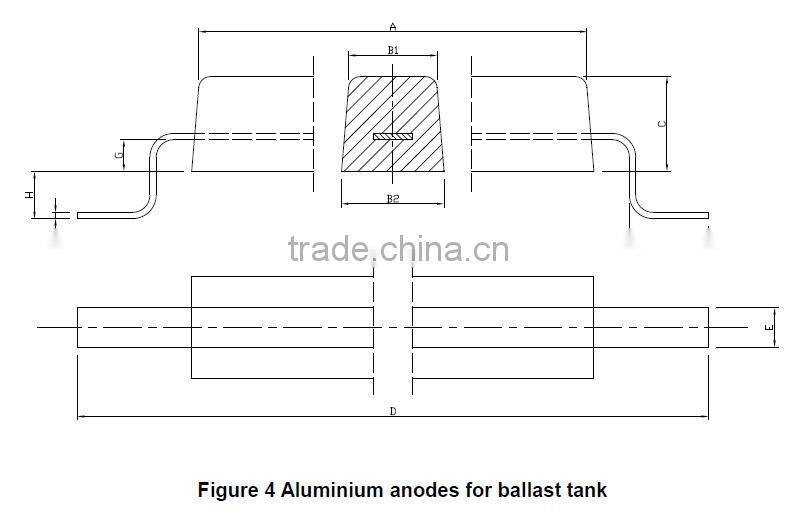

Anode Type and Dimensions
Aluminum anodes for ballast tank
| Type | Specification/mm | Steel Insert/mm | N.W./kg | G.W./kg | ||||
| A X (B1 + B2) X C | D | E | F | G | H | |||
| YX-AL-B01 | 1500X(65+75)X70 | 1800 | φ16 | 20 | 40 | 19.8 | 21.5 | |
| YX-AL-B02 | 500X(115+135)X130 | 800 | 50 | 6 | 40 | 60 | 20.5 | 23.0 |
| YX-AL-B03 | 500X(110+130)X120 | 800 | 50 | 6 | 40 | 60 | 18.0 | 20.0 |
| YX-AL-B04 | 1000X(58.5+78.5)X68 | 1300 | φ16 | 20 | 40 | 12.0 | 13.2 | |
| YX-AL-B05 | 800X(56+74)X65 | 1100 | φ16 | 20 | 40 | 9.0 | 10.0 | |
| YX-AL-B06 | 1150X(48+54)X51 | 1450 | φ12 | 15 | 35 | 7.6 | 9.0 | |
|
Remark: Insert of YX-AL-B01, YX-AL-B04, YX-AL-B05,YX-AL-B06 is solid rod. | ||||||||
Company Profile
Ningbo Yuxi light alloy Co.,ltd was established in 2003 and we are specialized in manufacturing Magnesium/AluminumExtrusion/casting products. The range of our product line, excellent quality & service, low price over the past ten years have made us one of the leading companies of its kind in China.
It’s our principal aim to provide the highest quality of materials and integrity of services, so our customer can focus all of their efforts in the more profitable services such as design, Marketing.
Taking advantage of the advanced technology and low labor cost, YUXI is always able to provide high quality products and integrity customer services backed with the most competitive price.
Please select us as your honest and reliable partner to save your money and time.
Factory occupation 26600 square meter
Total staff 120
Management & Technical staff 27
Capacity:
- Magnesium Casting: 1,500 tons per year
- Magnesium Extrusion: 1,200 tons per year
- Aluminum & Zinc casting: 2,000 tons per year
- Aluminum & Zinc extrusion: 1,500 tons per year
