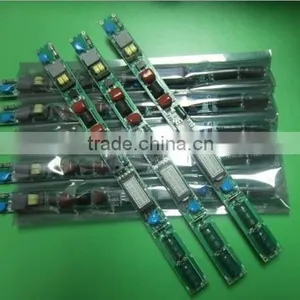

Help Center4~18W Led Light Driver(10~750MA)
Related Products
-
6~9W Constant Current Led DriverUS$ 0.5 - 1.5MOQ: 1 Piece -
4~7W Constant Led DriverUS$ 0.5 - 1.5MOQ: 1 Piece
-
120MA Non-isolated Led Driver USD0.86US$ 1 - 1.5MOQ: 2 Pieces
-
40W Non-isoalted Led Driver(non-isolated )US$ 1.7 - 2MOQ: 1 Piece
-
38W Non-isoalted Internal Led Driver(non-isolated )US$ 1.7 - 2MOQ: 1 Piece
Specifications
led light driver1.input voltage:AC85~265V
2.Output voltage:10~100V
3.Current:10~750MA
4.power:4~25W
led light driver specfication
Manufacturer Information | Part Number | LT-4~18W |
Product name | 10-100V 4~18W T8 built-in Non-isolated led tube driver | |
Sphere of application | T8 built-in | |
Input
| Input voltage range(Vac) | 100-240V |
Input voltage frequency(Hz) | 47~61
| |
Load input current(mA) | 150Ma max@AC 220V | |
Start surge current(A) | 1A max | |
Startup delay time(S) | ≤1 | |
Power factor | ≥0.96 | |
Out put
| Output normal power(W) | 4~18W |
Output voltage range(Vdc) | 10~100V | |
Normal output current(mA) | 10~750MA± 15mA | |
Short circuit protection | Yes | |
Light protection | Yes | |
Line regulation(%) | ±5 | |
Loading effect(%) | ±10 | |
Start output current overshoot(%Io) | 5 | |
Ripple & Noise (mV) | 5 | |
Start setting time(ms) | 30 | |
Protection
| Input under-voltage protection(Vac) | 95 Max |
Output open circuit voltage (Vdc) | ≤60 | |
Protection level | Bare | |
Output short circuit protection
| Hiccup mode, restore automatically | |
Environment | Working environment (°C) | -20~55 |
Storage temperature (°C) | -40~85 | |
Relative humidity | 90%RH max. | |
Temperature coefficient (%/°C) | ±0.08 max. | |
Others | MTBF | 18000h MIL-HDBK-217F,Tc=25°C |
Efficiency | ≥85% (typ,220Vac, According to the active power calculation | |
weight (g) | 32+/-5% | |
Appearance size(mm) | 275*17.5*10mm |
led light driver Detailed description:
1. Adopts integrated device design, low temperature rise, low calorific value.
2. High stability, drive stable work, output current constant, no drift.
3. High security, suitable for high humidity, high dust, strong vibration environment of use;Chip inside integrated over-voltage, over-current, overheat protective circuit.
4. Has the maximum output power limiting function, to avoid the impact of the LED
5. Long use life design, normal life in 50,000 hours.
6. Through the corresponding temperature testing, aging test, efficacy test and short circuit testing.
7.May be based on customer demand of custom-made related size and function driver module.
led light driver Installation and Working environment:
1. Make sure work in proper environments are stated in this Guide.
2. Do not overload.
3. Avoid free of load while a power supply is powered on, keep proper loading
4. Always keep good ventilation
5. Do not mount on wood or flammable surface, keep minimum 5CM for LED power supplies each other.
6. Keep away from inflammable or explosive environments.

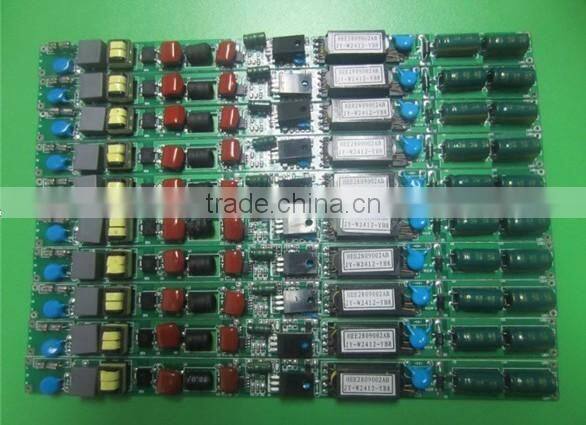

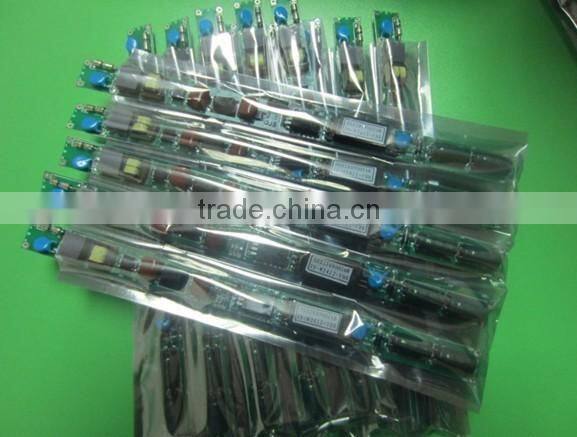

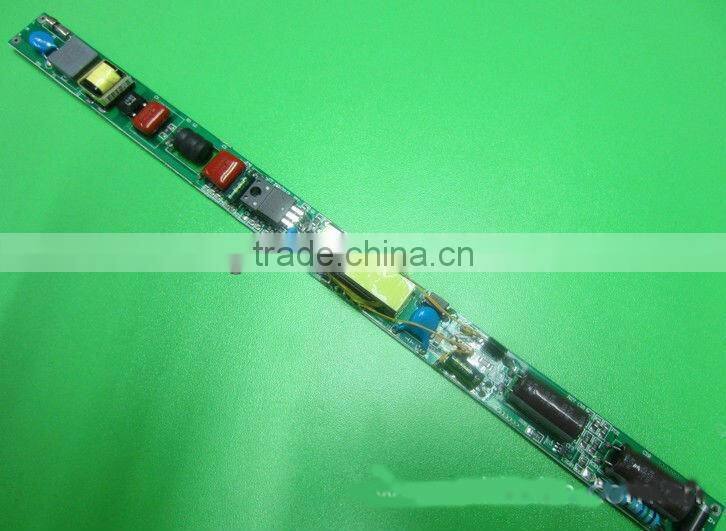

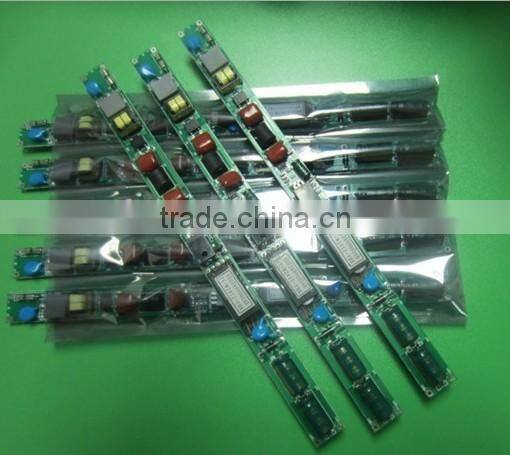

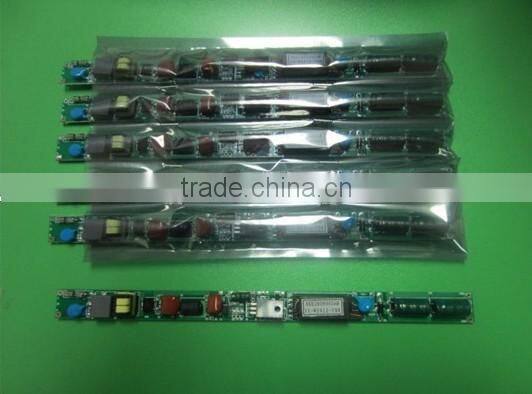

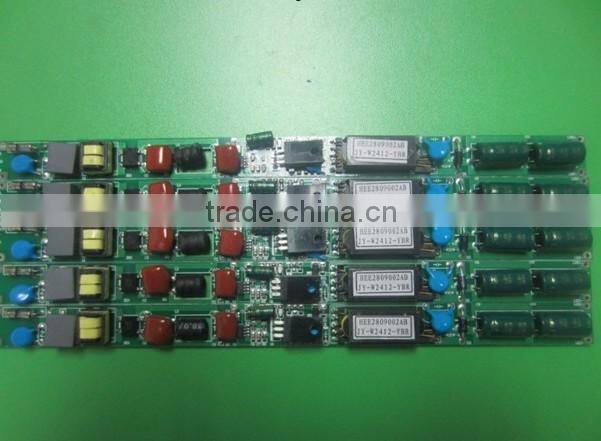

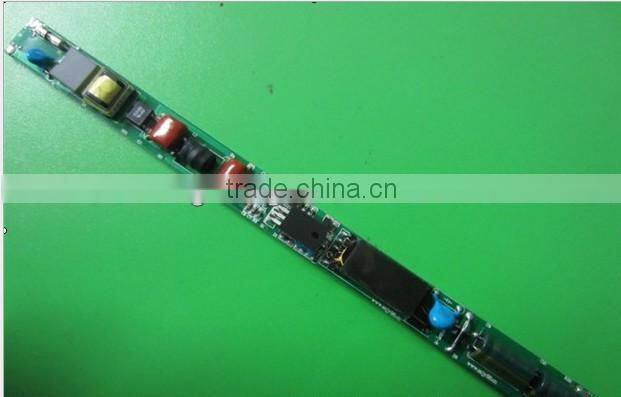

our equipment show
