Specifications
constant current led driver1.Voltage:AC85~265V
2.Output voltage:DC14~25V
3.Power:6~9W
4.PF>0.96
constant current led driver specfication
input voltage: | 85~265VAC |
output current: | 280~320mA led driver |
output voltage: | 20~25V (can adjust automaticly) |
output power: | 6~9W led driver |
power factor: | ≥0.75full load |
effeciency: | >80% |
drive mode: | Isolation |
Technology: | no PFC,constant current,triac dimmable led dirver |
current accuracy: | 350mA ≤±3%(can do customized ) |
Temperature rise: | 10~15 degree |
certificate: | CE,ROHS,GS,UL |
protection: | overload protection ,short circuit protection,over current ,over voltage protection , over temperature protection , can recovery when remove |
working temperature: | 30°~ +60°C |
storage temperature: | 40°~ +85°C |
Hnmidity: | 5% ~ 95%RH |
Cooling method: | Nature cool |
vibration resistance: | 5 ~ 55HZ/2g 30 mins |
impact resistance: | 1g/S |
MTBF | 50,000 hours with full load condition |
Safty: | EN55015/ CLASS B , *EN61000-4-2, EN61000-4-4, EN61000-4-5, EN61000-3-2 , IEC/ EN60968-1:2004+A1:2006 , IEC/EN60968-2-1:1989 |
constant current Led driver Detailed description:
1. Adopts integrated device design, low temperature rise, low calorific value.
2. High stability, drive stable work, output current constant, no drift.
3. High security, suitable for high humidity, high dust, strong vibration environment of use;Chip inside integrated over-voltage, over-current, overheat protective circuit.
4. Has the maximum output power limiting function, to avoid the impact of the LED
5. Long use life design, normal life in 50,000 hours.
6. Through the corresponding temperature testing, aging test, efficacy test and short circuit testing.
7.May be based on customer demand of custom-made related size and function driver module.
Constant current Led driver Installation and Working environment:
1. Make sure work in proper environments are stated in this Guide.
2. Do not overload.
3. Avoid free of load while a power supply is powered on, keep proper loading
4. Always keep good ventilation
5. Do not mount on wood or flammable surface, keep minimum 5CM for LED power supplies each other.
6. Keep away from inflammable or explosive environments.
Constant current led driver Product features:
1. Full range input: AC100-260V
2. Constant current
3.100% burn-in tests (at full load), no flicker, stable and high reliability.
4. Protection: Over voltage, Over load, Over temperature, Short circuit
5.IP20 for indoor installtions
6. Rated output can be customized
Constant current led driver Application
1.Office lighting, Artwork lighting, Display case
2.Home lighting
3.Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
4.Hotel, Restaurant lighting
5.Other public lighting

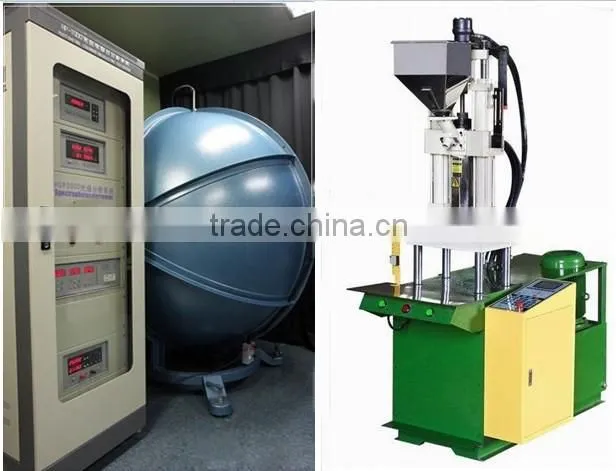

Our equipment show
