Shenyang Yi Feng Electric Co., Ltd., founded in 2008 focused on the development, production and sales of electric energy saving products. Provide high performance capacitors for power industry. Provide solutions to improve the power factor for the industrial enterprises, to save energy, improve the utilization rate of the power distribution system.
Have from the beginning until the core production of vacuum coating, after testing, Italy, company can set automatic production line. Production of cylindrical capacitor, is the only one single capacitor current to do 100A manufacturers. And in the cylindrical type of mine heat furnace compensation capacitor, 10KV line compensation for circular capacitor in the domestic leading level.

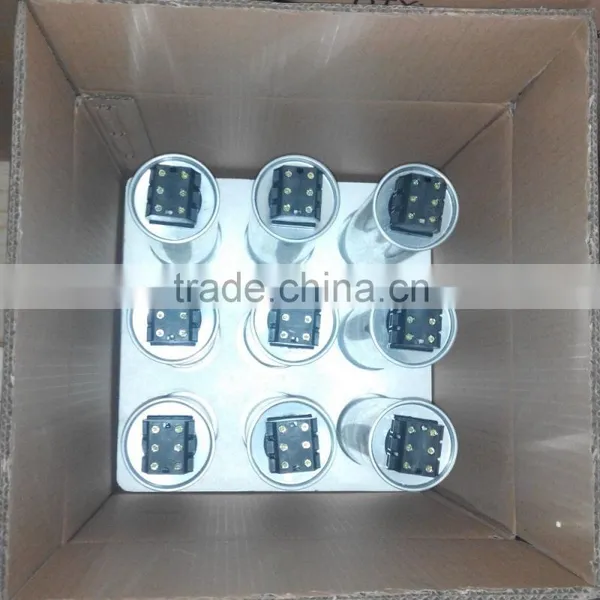

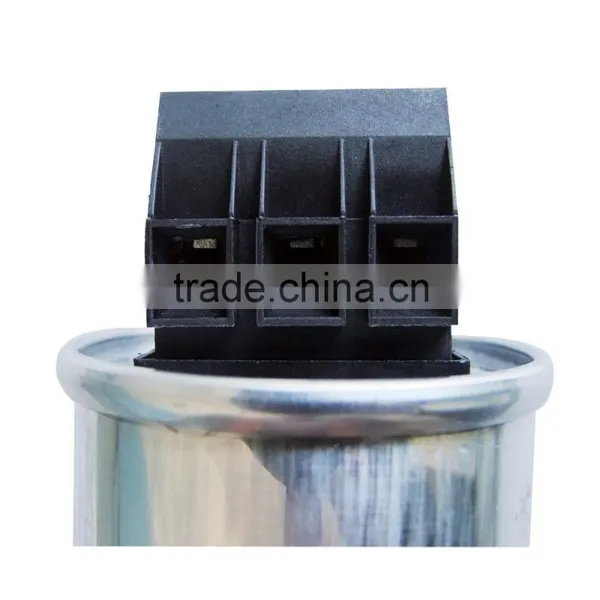

Product drawings
product specifications
| Six terminal capacitor main specifications | |||||||||
| Model | Rated | Rated | Rated | Rated | Rated | Shell | Install | Terminal | Wiring |
| Frequency | Voltage | Power | Electric current | Capacity | Size | Size | TYPE | The way | |
| BKMJ/MPDYF | fn/Hz | Un/KV | Qn/Kvar | In/A | Cn/uf | D×H(mm) | M×L(mm) | Monomer | |
| 0.45-3*3.33 | 50 | 450 | 3*3.33 | 7.4 | 157 | 76*240 | M12*16 | A | Monomer |
| 0.45-3*5 | 50 | 450 | 3*5 | 11.1 | 235.5 | 86*240 | M12*16 | A | Monomer |
| 0.45-3*6.67 | 50 | 450 | 3*6.67 | 14.8 | 314 | 96*240 | M16*25 | A | Monomer |
| 0.45-3*8.33 | 50 | 450 | 3*8.33 | 18.5 | 392.5 | 106*240 | M16*25 | A | Monomer |
| 0.45-3*10 | 50 | 450 | 3*10 | 22.2 | 471.6 | 116*240 | M16*25 | A | Monomer |
| 0.45-3*13.3 | 50 | 450 | 3*13.3 | 29.6 | 628 | 116*280 | M16*25 | A | Monomer |
| 0.48-3*3.33 | 50 | 480 | 3*3.33 | 6.9 | 138.2 | 76*240 | M12*16 | A | Monomer |
| 0.48-3*5 | 50 | 480 | 3*5 | 10.4 | 207.3 | 86*240 | M12*16 | A | Monomer |
| 0.48-3*6.67 | 50 | 480 | 3*6.67 | 13.9 | 276.4 | 96*240 | M16*25 | A | Monomer |
| 0.48-3*8.33 | 50 | 480 | 3*8.33 | 17.4 | 345.5 | 106*240 | M16*25 | A | Monomer |
| 0.48-3*10 | 50 | 480 | 3*10 | 20.8 | 414.6 | 106*280 | M16*25 | A | Monomer |
| 0.525-3*3.33 | 50 | 525 | 3*3.33 | 6.3 | 115.5 | 76*240 | M12*16 | A | Monomer |
| 0.525-3*5 | 50 | 525 | 3*5 | 9.5 | 173.3 | 86*240 | M12*16 | A | Monomer |
| 0.525-3*6.67 | 50 | 525 | 3*6.67 | 12.7 | 231 | 96*240 | M16*25 | A | Monomer |
| 0.525-3*8.33 | 50 | 525 | 3*8.33 | 15.9 | 288.8 | 106*240 | M16*25 | A | Monomer |
| 0.525-3*10 | 50 | 525 | 3*10 | 19 | 346.5 | 106*280 | M16*25 | A | Monomer |
BKMJ-YF series cylindrical low voltage shunt capacitor
Product introduction
Our products are mainly used to save energy and electricity, in the power system, the use of energy to improve the effective power, reduce reactive power losses, reactive power compensation (power factor for low voltage equipment is more positive and voltage waveform improvement). The special injection process of the metal film, the special injection process, the structure of the cylindrical shell.
Characteristic
BKMJ-YF series cylindrical low voltage shunt capacitor is a new technology which is developed by our company. It fills up the gap. The capacitor is used in the internal structure and explosion-proof. The mechanism of the new design concept, which makes the capacitor smaller, lighter, safer and longer life.
High reliability and life expectancy of 100000 hours.
The terminal is novel and easy to combine with the capacitor. For example, the capacity of any 15 multiples can be combined with 15Kvar, and the capacitor with 10Kvar and 12Kvar capacitors is used as a 22Kvar.
The volume and weight of the product is greatly reduced, which is equivalent to the 1/3 of the old product.
? beautiful appearance, easy to install, aluminum shell, never rust.
? the capacitor unit does not contain oil, liquid oil casing, combines the advantages of oil immersed capacitor and dry-type capacitor.
Use
Mainly used in low-voltage power distribution system, for improving power factor.
Reference standard
National standard GB12747-2004 American Standard: UL810-1998
International standard: IEC60831-1.2-1996 (International Electrical Commission Standard)
Performance index
Rated voltage: 200V, 220V, 250V, 260V, 280V, 400V, 415V, 450V,, 480V, 525V, 690V, 750V, 780V, 230V
Rated frequency: 50/60HZ
Capacity range: 1Kvar to 45 Kvar
Capacity accuracy: 5%
Three-phase unbalance: less than 1.1%?
Dielectric loss: Kvar = 0.3W/?
Dielectric loss tangent? < 0.1% (frequency Un.20 C)
Test voltage: between the poles: 2.15Un/10S polar shell: 3000VAC/10S
? internal connection: delta type or Y type connection
Condition of use
Working environment temperature range: minimum -40, maximum +60;
The relative humidity is less than 90%?;
Altitude: less than 2000m?;
? current: less than 1.3In (In rated current)
Over voltage: 1.1Un long term; 1.15Un is no more than 8 hours per day; 1.3Un is no more than 1 hours a day;
Reliability and life
60000/5000 hours of operation under the rated voltage and nominal category, the product failure is less than 6%/0.5% (1PPM hours) to meet the EIA-456-A standard of the American electrical industry association.
Sealing: 2 + 3 C 80 hours without leakage.
Life: under normal operating conditions, life expectancy reached 100000 hours
The following factors will affect the service life of the capacitor.
At 1, the use of working conditions than under the conditions worse, especially high temperature, long time overvoltage.
At 2, the grid harmonic component is bigger when.
= 3, switching too frequently.
? note: if beyond using the above conditions or have special requirements of life, the customer is in the order must explain, our engineers will take some technical means for the customer design the most suitable products
Safety of capacitor
Self discharge performance: capacitor must have a built-in discharge resistance, so that the capacitor from the power grid, the voltage drop to 50V following 3 minutes, will not cause damage to personnel and other equipment and devices.
Explosion proof performance: the capacitor in the failure occurs, at least should not happen combustion or explosion. The most ideal explosion-proof performance is when the capacitor failure, the capacitor is only open circuit, automatic from the power grid.
Insulation performance: the terminal and the shell should be able to withstand the voltage of 3000VAC, can not have leakage occurs.
Note
Cylindrical capacitor for roof explosion-proof structure, wiring terminal capacitance is strictly prohibited with copper, aluminum row connection, must use the soft copper wire
Six terminal capacitor to elicit, mainly is composed of delta connection, circuit will switch into the angle, so that the switching current small tick 3 times
