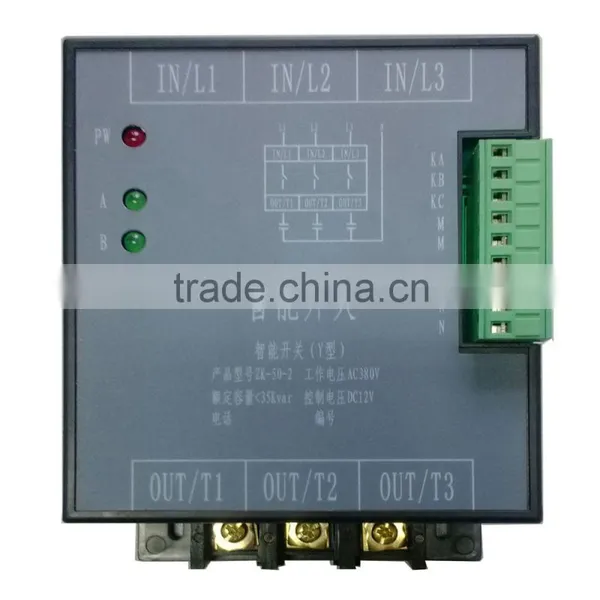

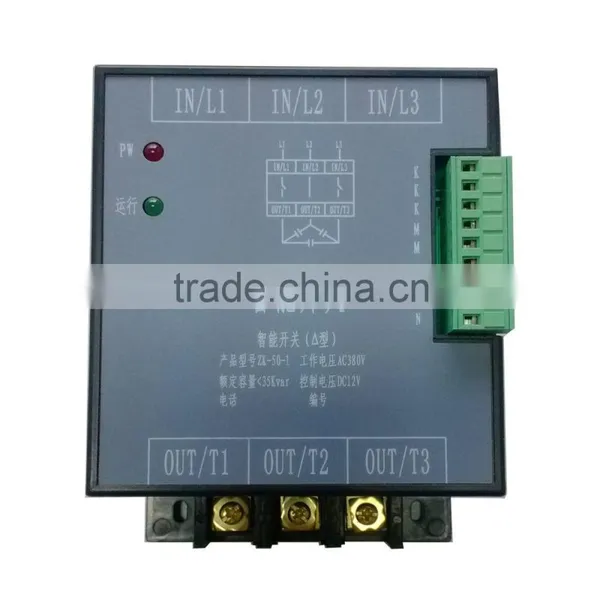

 ZK series intelligent switch is fill switch (ZK-50-1) and separate compensation switch (ZK-50-2), total compensation switch for switching capacitor, using a triangle connection method; separate compensation switch is used for switching single-phase capacitor and the Y-shaped connection. The intelligent switch selects the intelligent switching module, the suction arc module and the mechanical switch parallel operation, which has the advantages of the arc extinguishing in the moment and the breaking off. Intelligent switch with significant advantages of no impact, low power, longevity of service, alternative contactor and thyristor switch. It is widely used in low-voltage reactive power compensation, but also can be used as the substitute for AC contactor.

2 functional characteristics

You no switching arc;

It is low power consumption, without external heat sink;

To the input signal and the main power supply, can be directly matched with the reactive power compensation controller;

It has a switch status indicator, the capacitor is switched on, the light;

To switch off automatically when power system, power supply, normal, automatic recovery work;

It has strong anti-interference ability.

3 technical parameters

3.1 main circuit

Rated voltage of 380V + 20% service life 300000 times more than 2000V pressure switch switching power consumption less than 2W

Switch pressure drop is less than or equal to 0.05V insulation strength of 2.5KV/1min is less than or equal to 10%, allowing harmonic harmonic voltage harmonic current is less than or equal to 30%.

3.2 control circuit

Control level OV/12VDC input current 10mA

3.3 electromagnetic compatibility

Pulse group IEC255-22-1 2 level radiated electromagnetic field IEC60255-22-3 2

Electrostatic discharge IEC255-22-2 3 level fast transient IEC61000-4-4 3

3.4 working condition

Operating temperature - 25 to 55 DEG C storage transport temperature - 40 DEG C to 85 DEG C, relative humidity of 5% ~ 95%, no condensation of atmospheric pressure 80kPa to 110Kpa altitude < 2000m earthquake intensity < 8 level pollution grade IV installation workshop

In addition to fire, explosion, flood, strong chemical corrosion and other places outside the place.

3.5 equipment size

160 (L) X 108 (W) X 99 (H) (L) mm X 138 (W) 84 () mm

The installation distance is greater than 50 mm with 5 fixed aperture (M4 screw)
