Help CenterSamsung 5630 Module Led
Related Products
Specifications

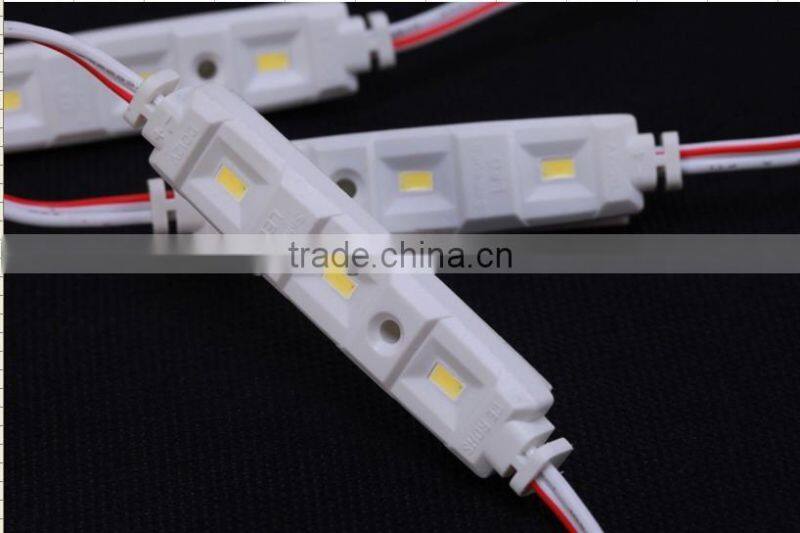

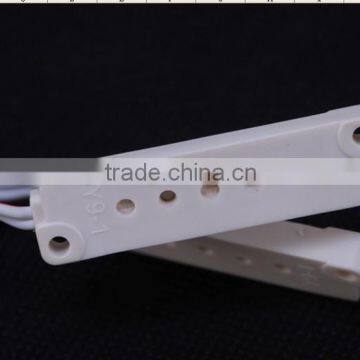

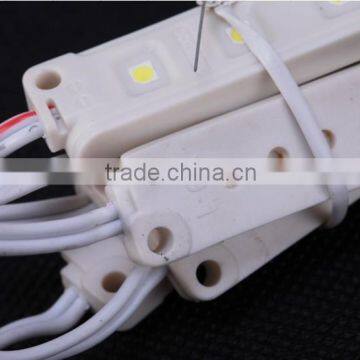

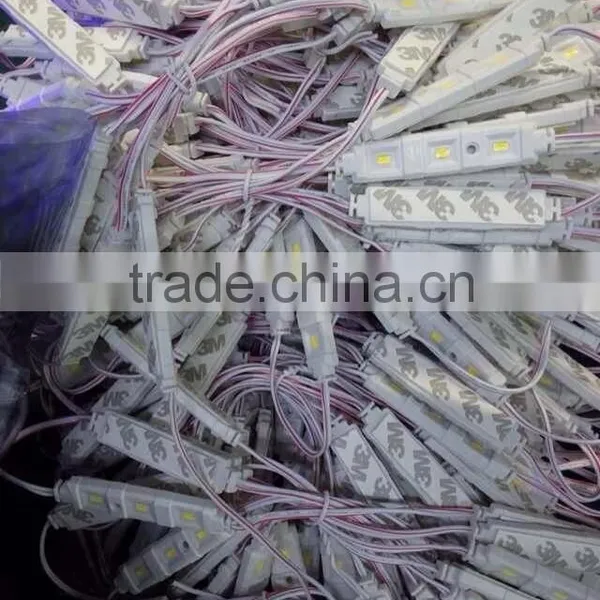

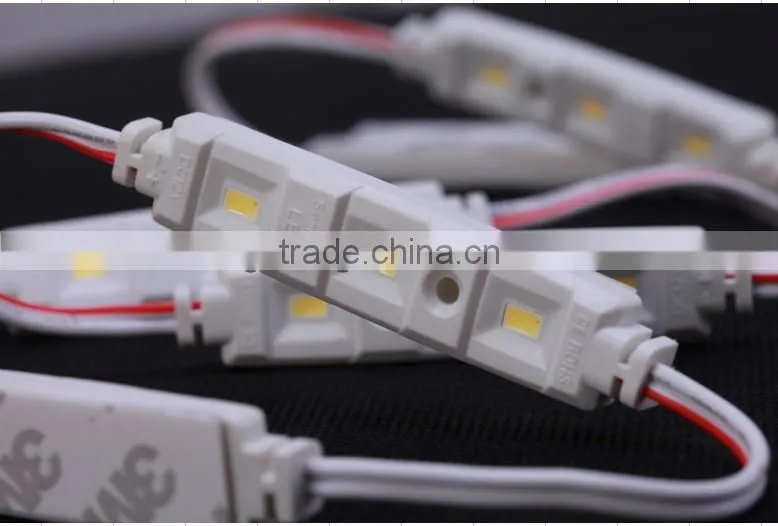

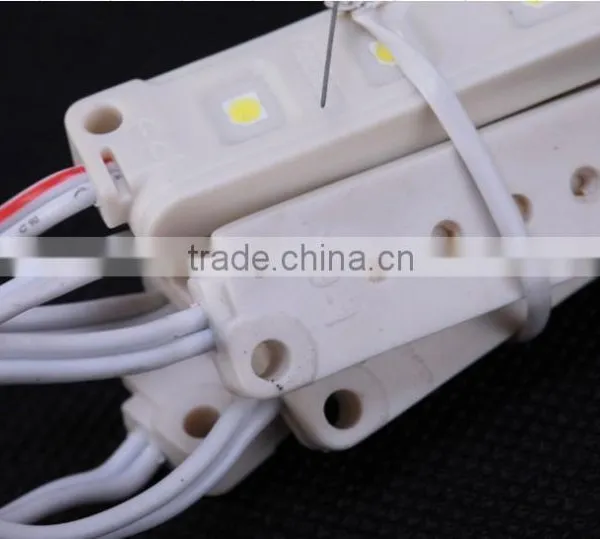

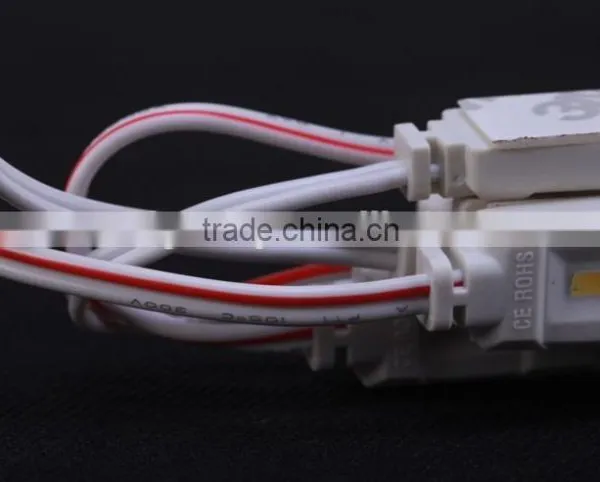

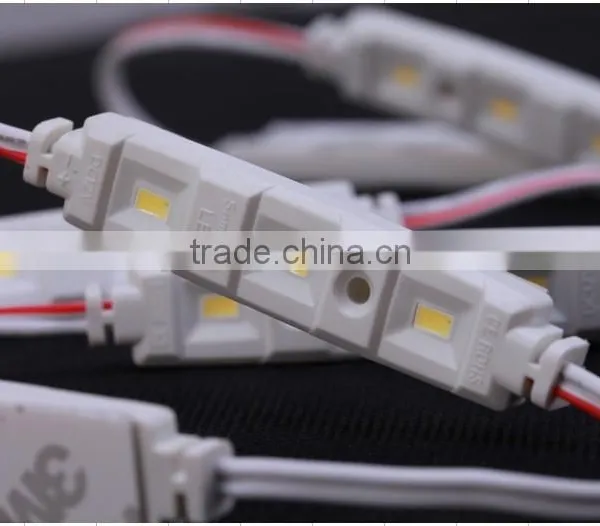

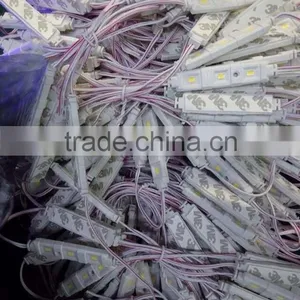

samsung 5630 module led1.Voltage:12V
2.Power:1.5W
3.led quanity:3pcs samsung leds

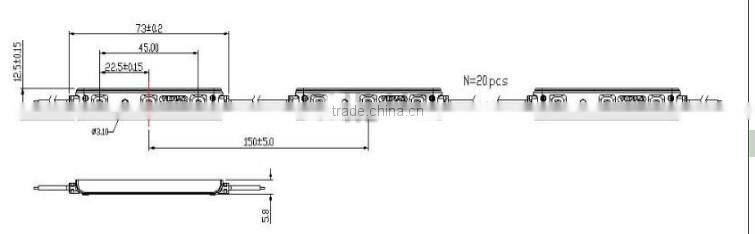

4.Size:75*12*5.8mm 5.Lumen:180LM
samsung 5630 module led specfication
LED |
Color |
Wave length/Color temperature |
Lumen (Single Module) |
Angle |
TOP5730 |
W |
7000~8000K |
90 LM±10% |
120° |
C/W |
13000-15000K |
90LM±10% |
||
W/W |
2800-3200K |
90 LM±10% |
||
N/W |
4000~4500K |
90 LM±10% |
||
R |
620-630nm |
30 LM±10% |
||
G |
520-530nm |
66 LM±10% |
||
B |
465-475nm |
15 LM±10% |
||
Y |
588-594nm |
18 LM±10% |
No. |
Item |
Parameter |
1 |
Drive mode |
Constant drive |
2 |
Input |
DC12V |
3 |
Power(Single module) |
1.2W (typ) |
4 |
LED Number(Single module) |
3PCS |
5 |

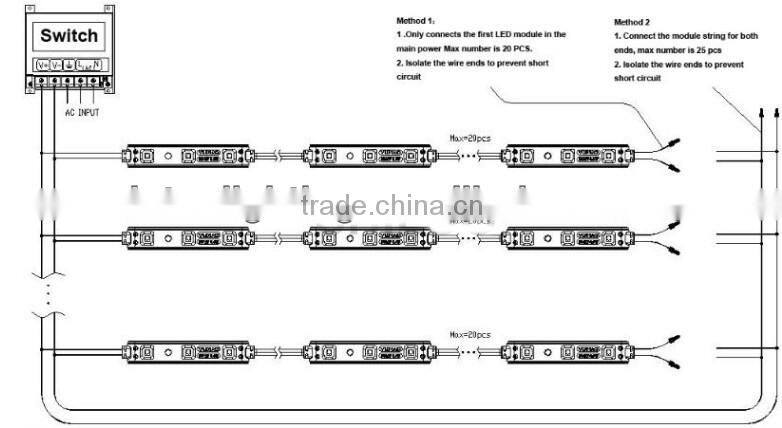

Max number(PCS) |
20(typ) |
6 |
Cover color & material |
Milky white PVC+PC Lens |
7 |
IP Level |
IP65 |
8 |
Working temperature |
-20~+40°C |
9 |
Stock temperature |
-40~+60°C |
10 |
Life-span |
2years/8000H |
11 |
Weight(single module) |
283g |
samsung 5630 module led Features
1. Low wattage, energy efficient and major reduction in power costs
2. Virtually no maintenance
3. Low heat, high brightness, and works well under harsh conditions

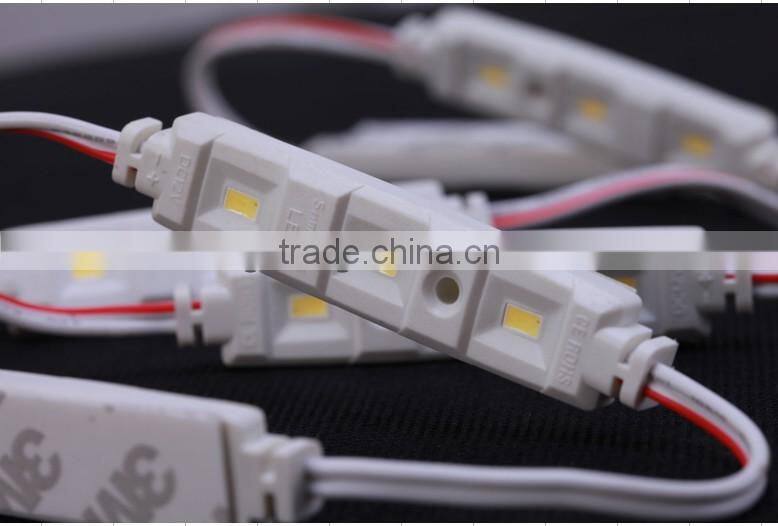

4. Including 3M adhesive tape for convenient mounting
5. Full range of colors: colorful(red, yellow, blue, green, warm white and white)
6. Input voltage: 12V DC, professionally designed to be fully waterproof
7. IP 65 protection degree can be normally operated even in cloudy, rainy and snowy weather
samsung module led 8. Solid-state, high shock or vibration resistant
9. No RF interference
10. Long life 50,000hours.
samsung 5630 module led Application:

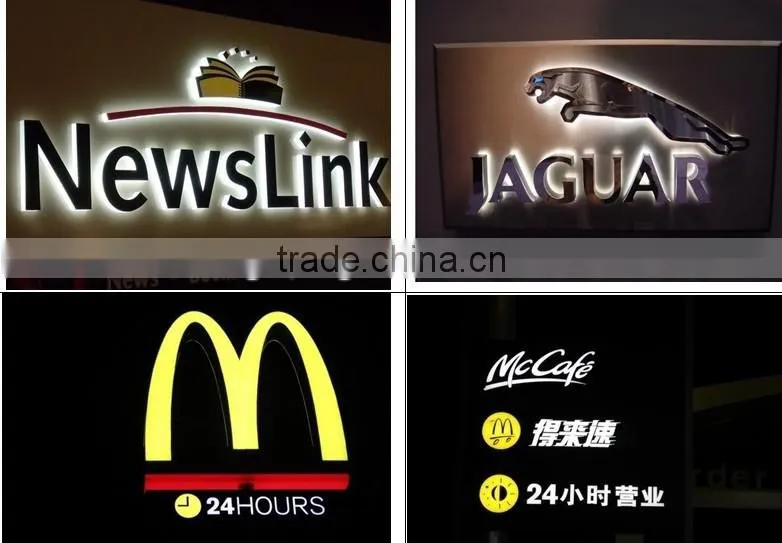

1. Channel letter backlighting
2. Advertisement sign backlighting, backlight or edge lighting for sign
3. Advertisement light box and billboard backlighting
4. Architectural lighting for window ,archway ,canopy and corridor
5. Decorative lights for holiday, event ,show, exhibition
6. DIY light for home use
our equipment show
