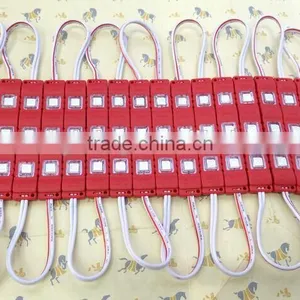

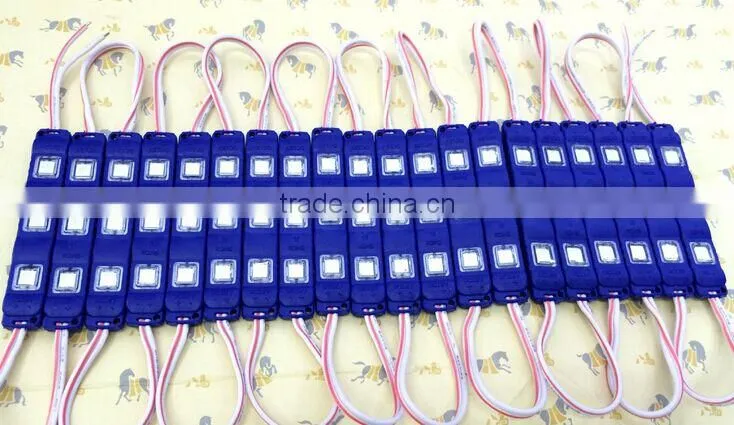

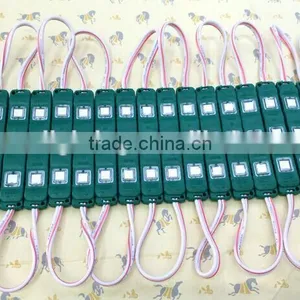

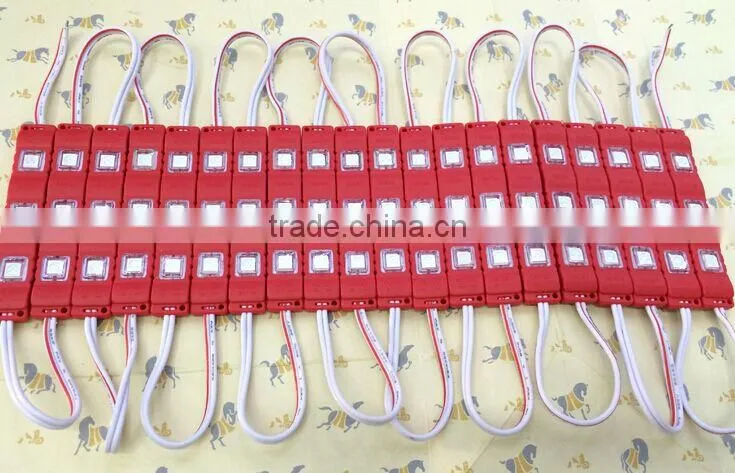

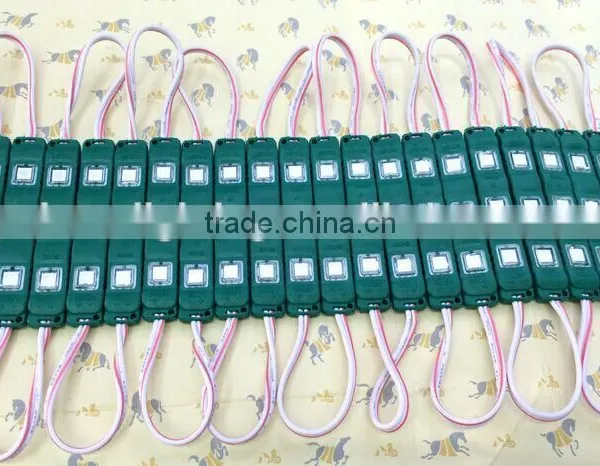

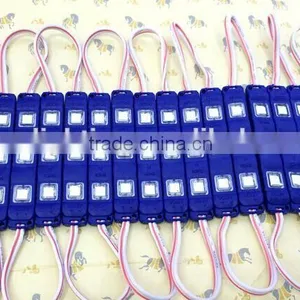

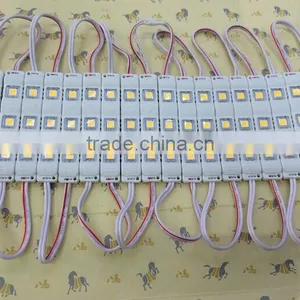

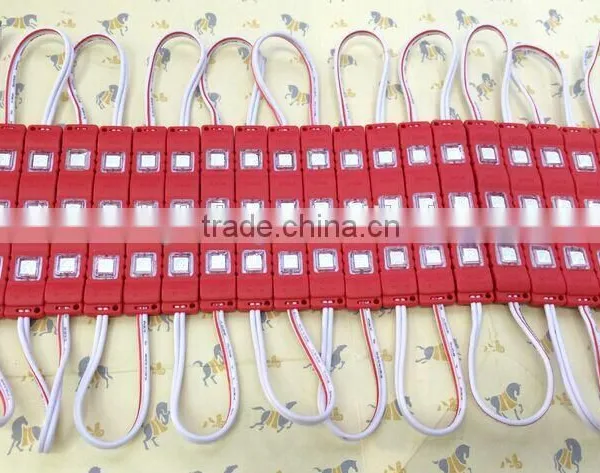

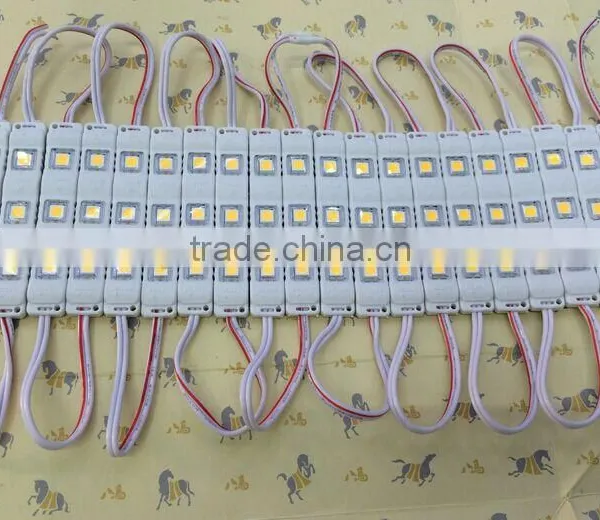

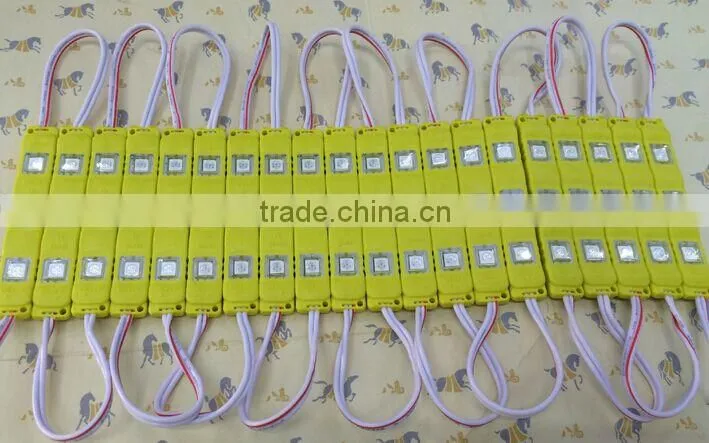

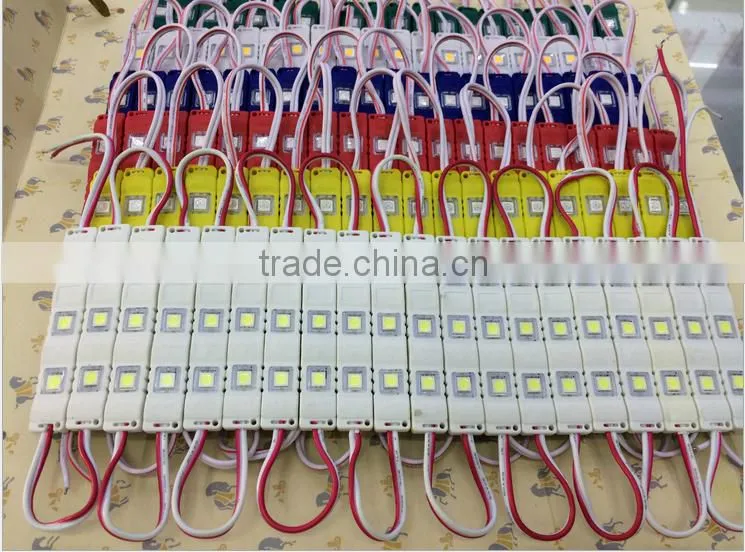

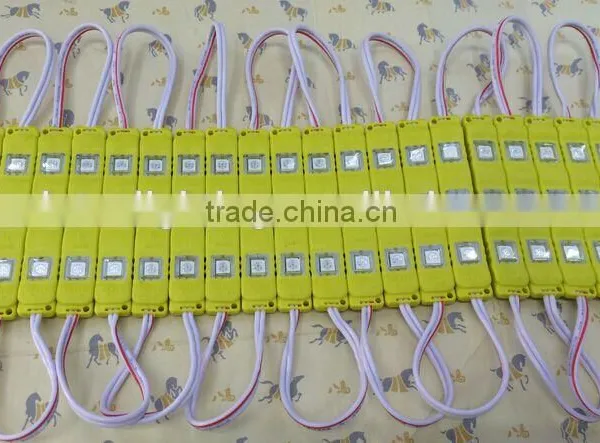

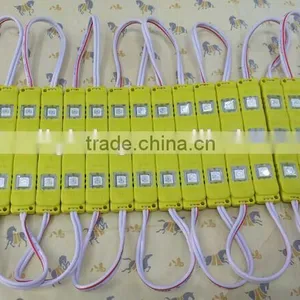

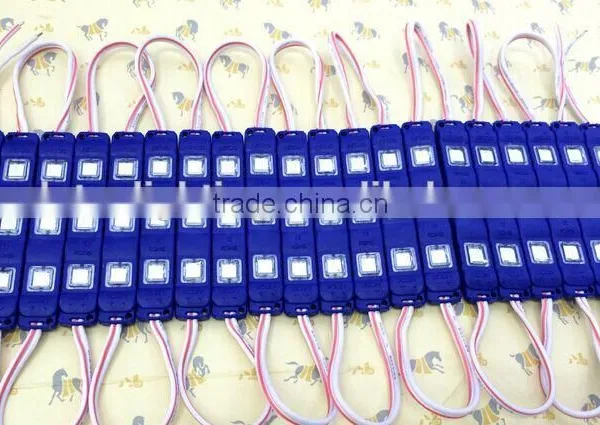

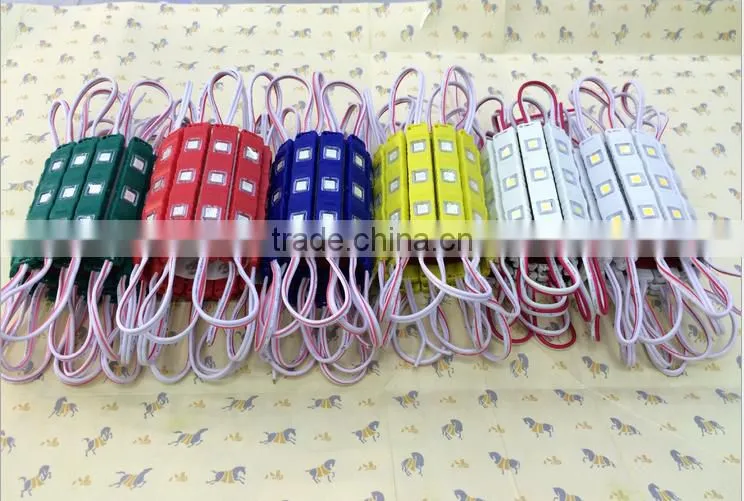

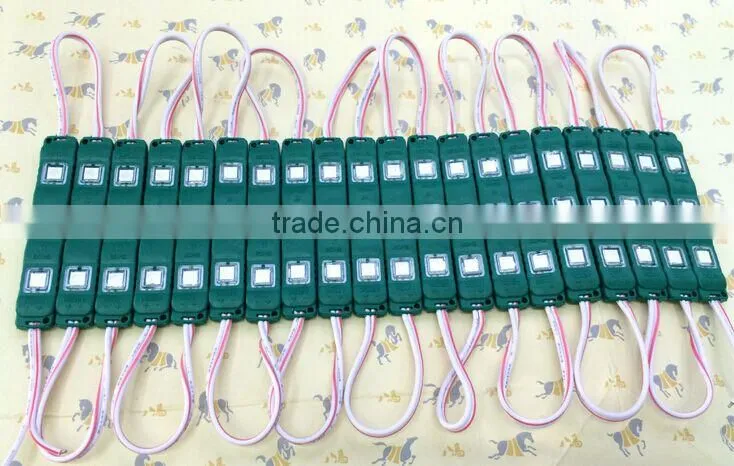

injection SMD 5050 module led backlight

 details

injection SMD 5050 module led backlight

 specfcation

1,This product is applied to 4cm thickness,medium and large plastic light box.

2,No shadow,low thermal resistance,low brighless declines.

3,This module could be linked up to 40 pcs modules,more than 40pcs is stricty prohibited.

4,The diameter of the power cord should be based on the actual prohibited maxium current the product power,cabling length (recommended no more than 6 meters),and the voltage of transmission line.

5,Please connect wires following the positive and negative makings on the circuit board.

injection SMD 5050 module led backlight

 Feature:

1. High light efficiency
2. Elegant appearance with nice treated aluminum housing
3. Engineered to be cut every module for use
4. Weight only 13g each module
5. compact size for narrow space installation
6. Long life span up to over 30,000hours

7. IP65 waterproof for outdoor/Indoor.
8. Easy installation

injection SMD 5050 module led backlight

 advantage

1.High flux out put and low thermal resistance

2.No concern the polarity to set up.

3..stable brightness with unstable power

4.The wire length of between module is 10~15cm

5.can 20pcs/25pcs led module one string

6.Relieve wire-twist with flexible stopper
7.PVC plastic housing, which enables quick and good heat dissipation and low heat resistance
8.very slim shell, suitable for spacious conditions
9.wide beam angle, making even performance
10.lower light decay and high brightness smd led

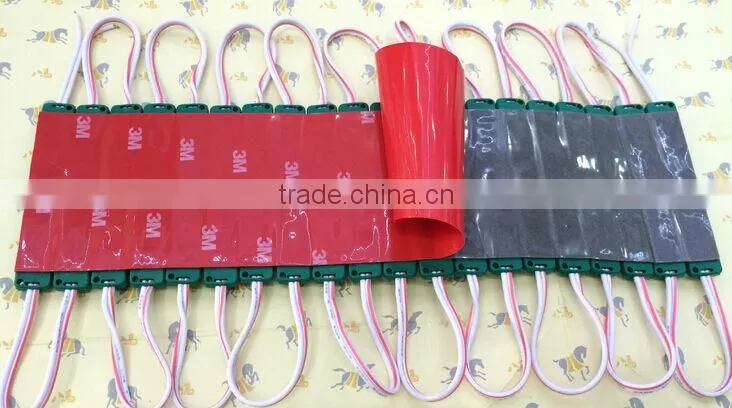

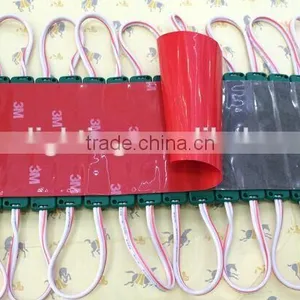

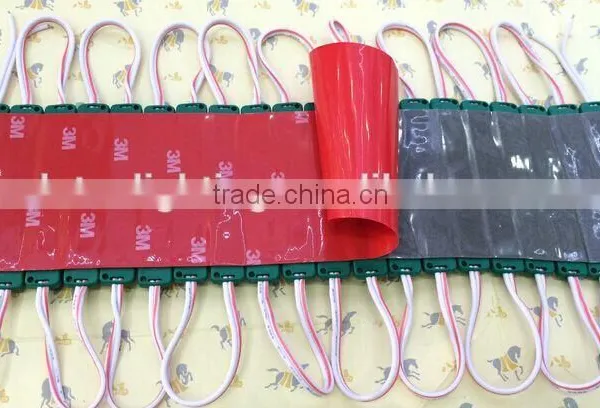

11.easy installation with 3M double-sided tape and/or screws
12.long life span of 50,000 hours, high quality leds and proper drive characteristics
13.safety and stable with low voltage

15.energy saving with low power consumption
16.IP65-67, injection waterproof

injection SMD 5050 module led backlight

Applications:

1. Channel letter backlighting

2. Advertisement sign backlighting, backlight or edge lighting for sign

3. Advertisement light box and billboard backlighting

4. Architectural lighting for window ,archway ,canopy and corridor

5. Decorative lights for holiday, event ,show, exhibition

6. DIY light for home use
