Home > Products > led module > Aluminum PCB board led module USD0.18
Aluminum PCB board led module USD0.18
- 1000000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Model Number: | SMD2835 | Chip Material: | Other, SMD | Emitting Color: | Other, red,yellow,blue ,green ,white |
Luminous Flux(lm): | 60 | Optical Attenuation(%): | 0.001 | Power: | Other, 1.5W |
Power Dissipation: | 1.5W | Color Rendering Index(Ra): | 75 | Color Temperature: | 10000-12000k |
Operating Temperature(℃): | -20, 60 | Storage Temperature(℃): | 40, 80 | Place of Origin: | Guangdong, China |
Brand Name: | lotoo | Certification: | CE |
Product Description

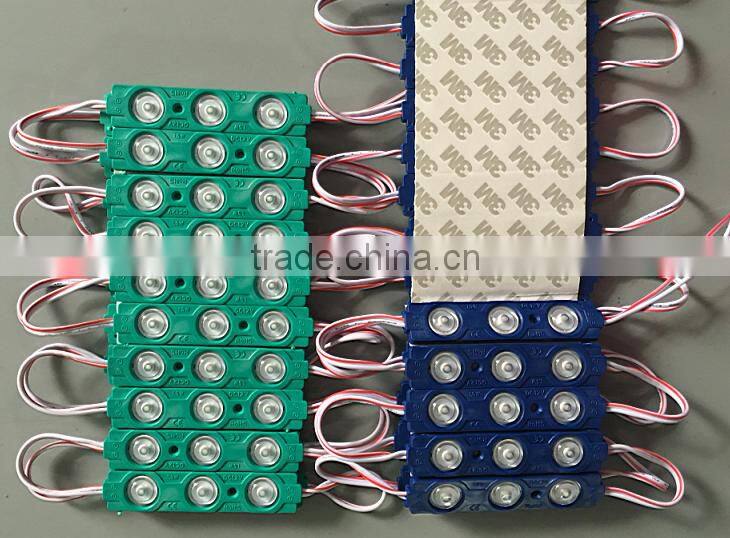

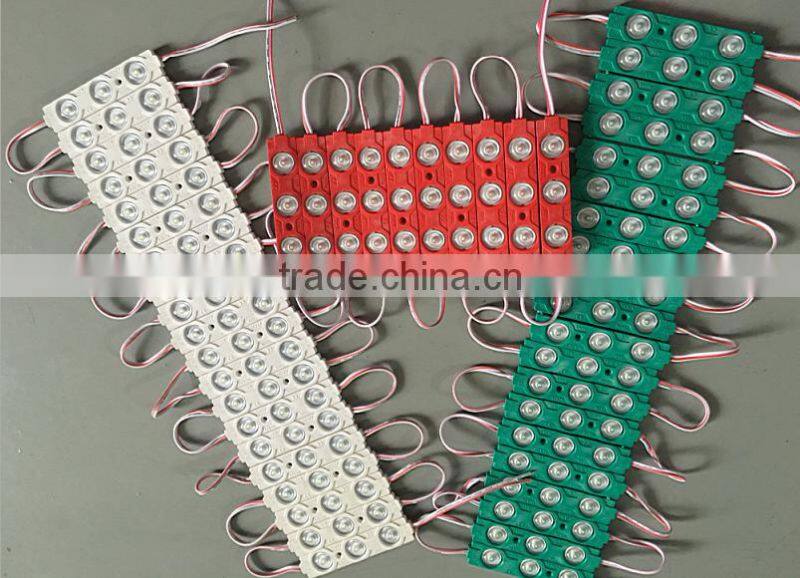

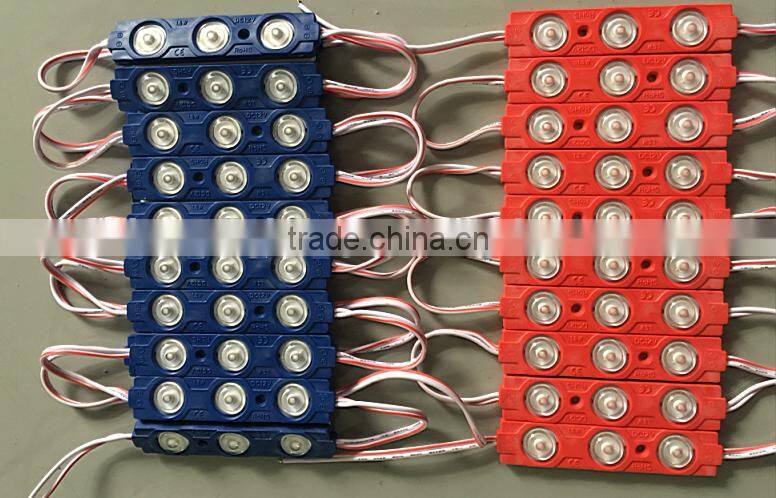

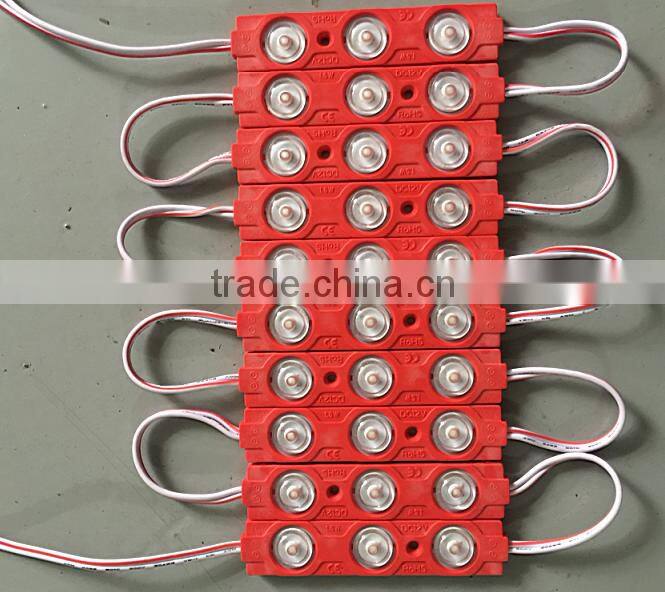

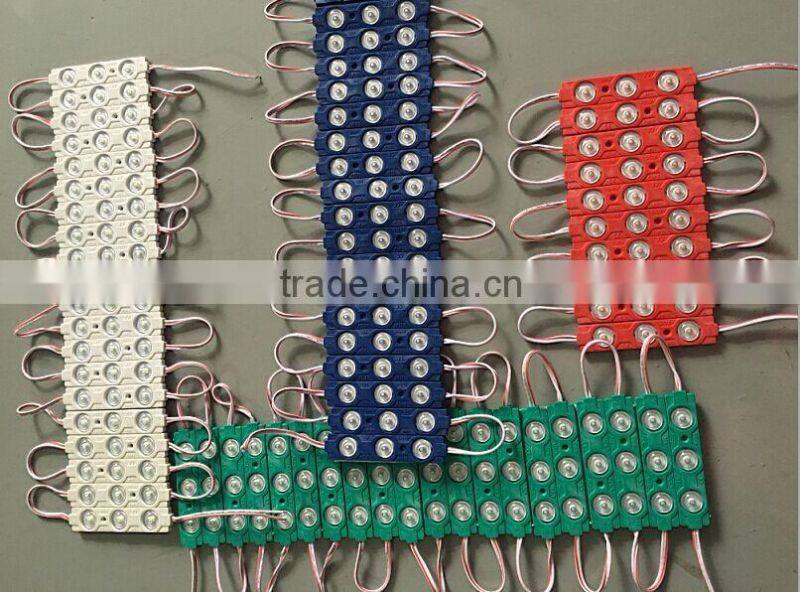

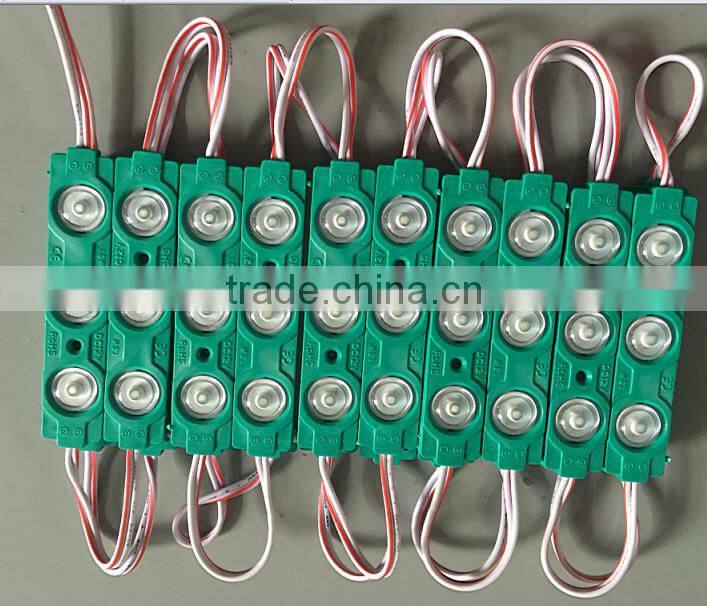

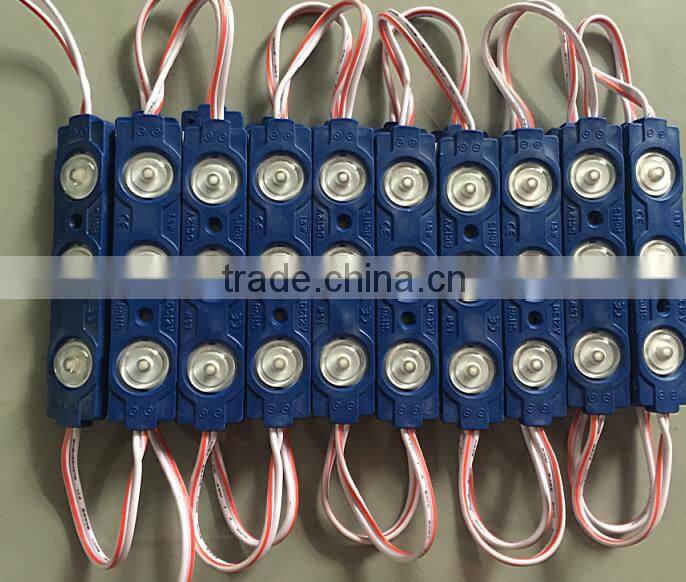

Aluminum PCB board led module details
Products Name | smd2835 sigle color module |
Model NO. | LT-7815-sigle color |
Power Consumption | 1.5W |
Work Voltage | DC12V |
Beam Angle | ≥140 |
LED Quantity | 3pcs SMD2835 |
Color | red,yellow,blue,green,white ,warm white and RGB |
Dimension | 78*15mm |
Waterproof Grade | IP66 |
Work Temperature | -40-60°C |
Life-span | 50,000H |
Certificate | CE&RoHS |
Warranty | 2years |
Aluminum pcb board led module specfication:
1,This product is applied to 4cm thickness,medium and large plastic light box.
2,No shadow,low thermal resistance,low brighless declines.
3,This module could be linked up to 40 pcs modules,more than 40pcs is stricty prohibited.
4,The diameter of the power cord should be based on the actual prohibited maxium current the product power,cabling length (recommended no more than 6 meters),and the voltage of transmission line.
5,Please connect wires following the positive and negative makings on the circuit board.
Aluminum PCB board led module Feature:
1. High light efficiency
2. Elegant appearance with nice treated aluminum housing
3. Engineered to be cut every module for use
4. Weight only 13g each module
5. compact size for narrow space installation
6. Long life span up to over 30,000hours
7. IP65 waterproof for outdoor/Indoor.
8. Easy installation
Aluminum PCB board led module advantage
1.High flux out put and low thermal resistance
2.No concern the polarity to set up.
3..stable brightness with unstable power
4.The wire length of between module is 10~15cm
5.can 20pcs/25pcs led module one string
6.Relieve wire-twist with flexible stopper
7.PVC plastic housing, which enables quick and good heat dissipation and low heat resistance
8.very slim shell, suitable for spacious conditions
9.wide beam angle, making even performance
10.lower light decay and high brightness smd led
11.easy installation with 3M double-sided tape and/or screws
12.long life span of 50,000 hours, high quality leds and proper drive characteristics
13.safety and stable with low voltage
15.energy saving with low power consumption
16.IP65-67, injection waterproof
Aluminum PCB board led module Applications:
1) Channel Letters Backlighting
2) Advertisement Signs Backlighting
3) Advertisement Light Boxes Backlighting
