Rotary Paddle Pellet Level Sensor

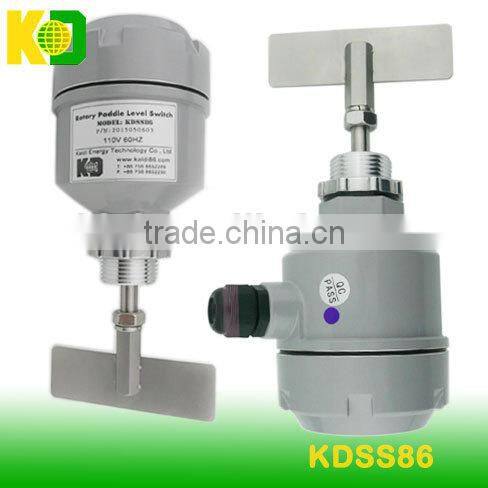

Rotary Paddle Pellet Level Sensor photo-1

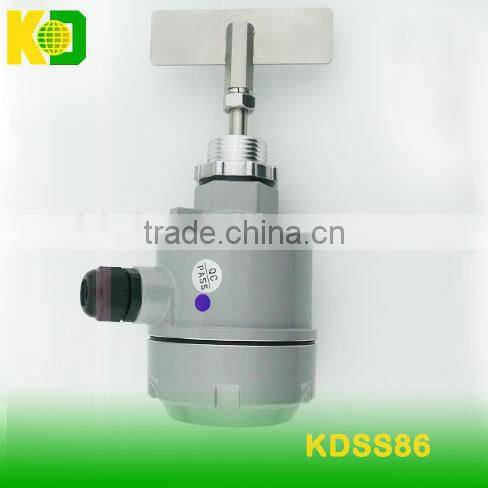

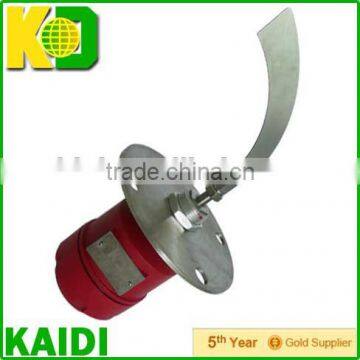

Rotary Paddle Pellet Level Sensor photo-2
Rotary Paddle Pellet Level Sensor photo-3
US$ 70 - 95 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KD
Model Number:
KDSS86F
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name KD
Model Number KDSS86F

Rotary paddle granule level sensor

Rotary paddle pellet level sensor



Features:

High quality motor;

Operate reliable;

Four position sensitivity adjustable, applied widely;

Clutch device protect motor;

Double shaft sealing, protection class: IP65

Stainless-steel rotary probe and paddle

*Test strictly;

* High/low temperature type, extension length, all kinds of paddle, optional

Measure level for powdery solid material:

*Cereal *animal feed *wood chip *Plastic * sand *granular material *Rubber *agglomerate charge *cement



Specifications:

Power source:

110VAC, 220VAC, 50/60HZ

Power Consumption:

3W

Contact capacity:

SPDF  220VAC/5A   220VAC/3A

Rotary speed:

1RPM

Insulation voltage:

AC1500V/min

Torque:

30~100kg.cm

Specific gravity:

>=0.5 g/cm3

Connect:

screw probe 1"PF / 3/4"PF

Flange JIS 2-1/2*5Kg/cm3



Model Selection:

Model

Desc.

KDSS86:

standard screw connect

KDSS86F:

standard flange connect

KDSS86M:

shaft protective tube type

KDSS86G:

shaft length adjustable type

KDSS86FT:

hi -temp. flange type hi-temp.

KDSS86MT:

shaft protective tube type

KDSS86GT:

hi-temp. shaft length adjustable type



All models drawing as following:
