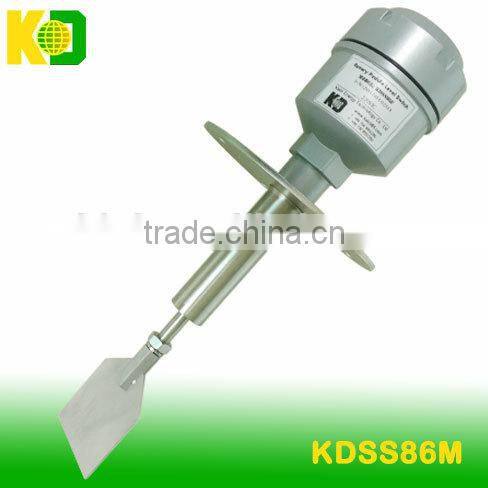

High Quality Level Switch

Guangdong Kaidi Energy Technology Co., Ltd.

5Yrs

US$ 68 - 100 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

KDSS86M

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name KD

Model Number KDSS86M

Ali Low cost high quality Level switch KDSS86M Paddle type

Features:

High quality motor;

Operate reliable;

Four position sensitivity adjustable, applied widely;

Clutch device protect motor;

Double shaft sealing, protection class: IP65

Stainless-steel rotary probe and paddle

*Test strictly;

* High/low temperature type, extension length, all kinds of paddle, optional

Measure level for powdery solid material:

*Cereal *animal feed *wood chip *Plastic * sand *granular material *Rubber *agglomerate charge *cement

Specifications:

Power source:	110VAC, 220VAC, 50/60HZ
Power Consumption:	3W
Contact capacity:	SPDF 220VAC/5A 220VAC/3A
Rotary speed:	1RPM
Insulation voltage:	AC1500V/min
Torque:	30~100kg.cm
Specific gravity:	>=0.5 g/cm³
Connect:	screw probe 1"PF / 3/4"PF Flange JIS 2-1/2*5Kg/cm³

Model Selection:

Model	Desc.
KDSS86:	standard screw connect
KDSS86F:	standard flange connect
KDSS86M:	shaft protective tube type
KDSS86G:	shaft length adjustable type
KDSS86FT:	hi -temp. flange type hi-temp.
KDSS86MT:	shaft protective tube type
KDSS86GT:	hi-temp. shaft length adjustable type
