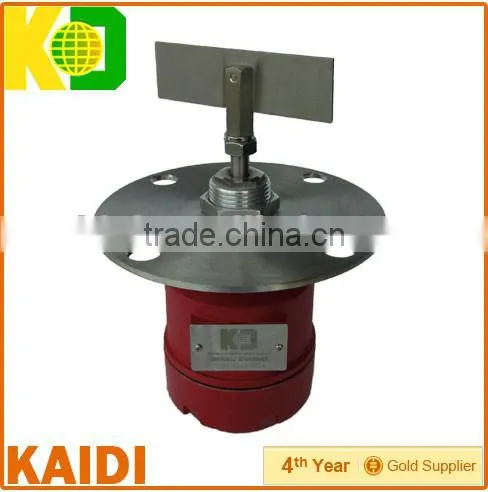

Solid material position sensor
Rotating paddle level sensor for silo
Features:
- High precision, robust Level controller
- High quality motor;
- Operate reliable;
- Four position sensitivity adjustable, applied widely;
- Clutch device protect motor;
- Double shaft sealing, protection class: IP65
- Stainless-steel rotary probe and paddle
- Test strictly;

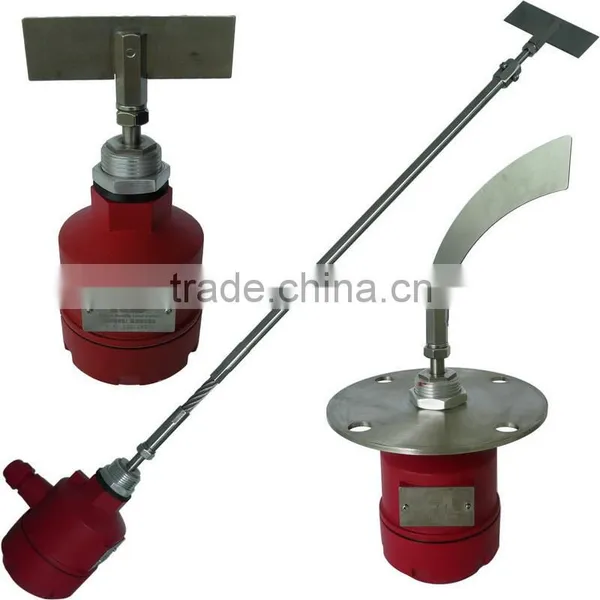

- High/low temperature type, extension length, all kinds of paddle, optional
- Measure level for powdery solid material:
*Cereal *animal feed *wood chip *Plastic * sand *granular material *Rubber *agglomerate charge *cement
Specifications:
Power source: |
110VAC, 220VAC, 50/60HZ |
Power Consumption: |
3W |
Contact capacity: |
SPDF 220VAC/5A 220VAC/3A |
Rotary speed: |
1RPM |
Insulation voltage: |
AC1500V/min |
Torque: |
30~100kg.cm |
Specific gravity: |
>=0.5 g/cm3 |
Connection: |
screw probe 1"PF / 3/4"PF Flange JIS 2-1/2*5Kg/cm3 |

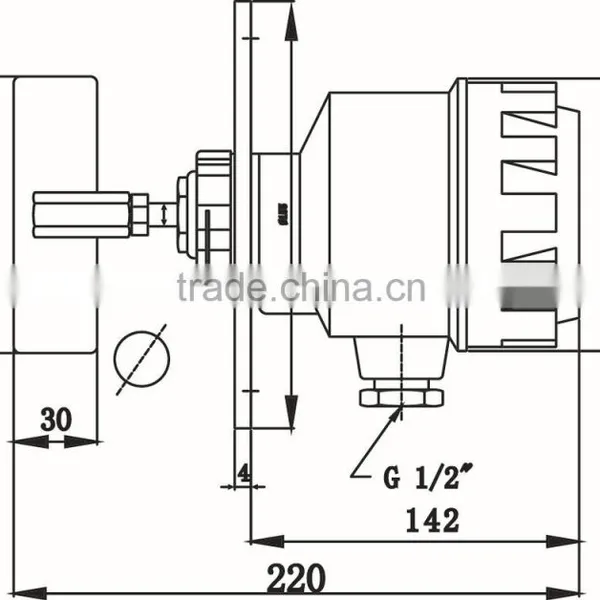

Drawing:
All available model:
Model |
Desc. |
KDSS86: |
standard screw connect |
KDSS86F: |
standard flange connect |
KDSS86M: |
shaft protective tube type |
KDSS86G: |
shaft length adjustable type |
KDSS86FT: |
flange type hi-temp. |
KDSS86MT: |
shaft protective tube type |
KDSS86GT: |
hi-temp. shaft length adjustable type |

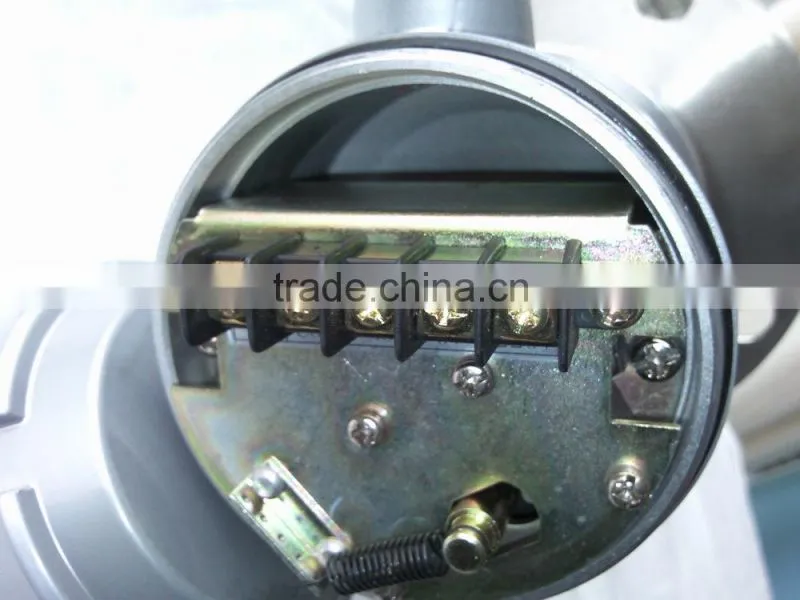

Wiring panel:
Maucfacturing facilities:
