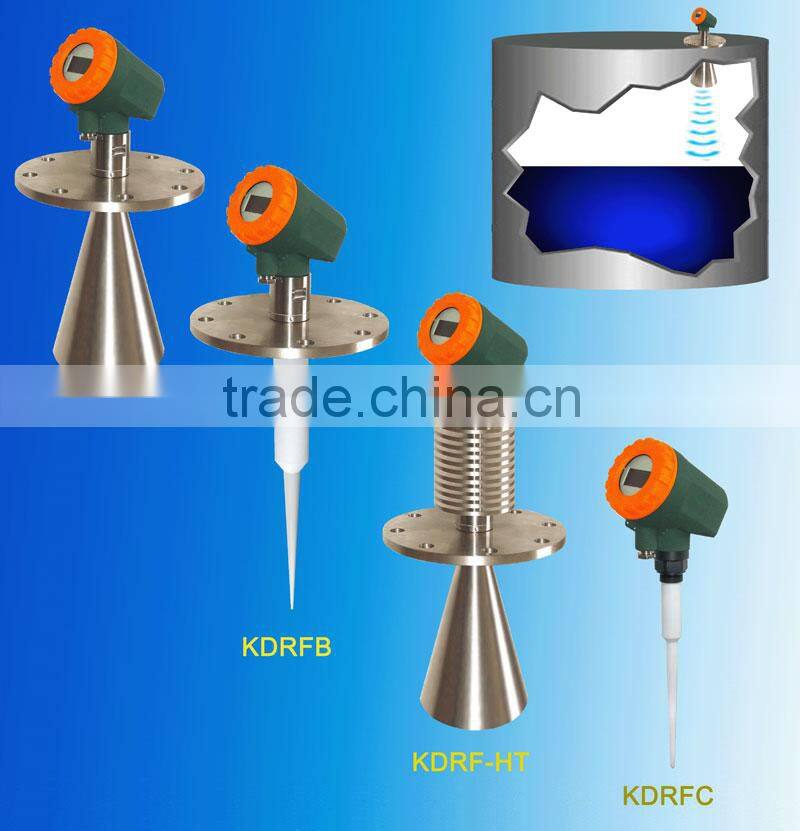

4-20mA radar level transmitter 26G HZ
APPLICATION
Coal Plant, Power Plant
Petroleum and Chemical Industrial
Foodstuff Industrial
General Industrial Applications
CHARACTERS
Large measurement scale, precious accuracy
Non-touchable measurement, so it is suitable for more complex
working condition
The outstanding is measurement viscous liquid or applied inbig change occasion for temperature and pressure
Outputs an analog signal 4~20mA
PRODUCTS DESCRIPTION
Smart radar level TRANSMITTER, for its characters of non-touchable measurement, can precious measure the media of pollution and corrosion. Its stable and accurate apparent is also shown in complex measurement. Outputs an analog signal 4~20mA, can be controlled by remote. It is adopted an unique micro-wave technology,Echo-tech process applied for various industrial condition. The pulse working method can measure small dielectric constant media,and safely applied in metal and nonmetal vessels. It is not harmful for human body and environment.
TECHNICAL PARATRANSMITTERS

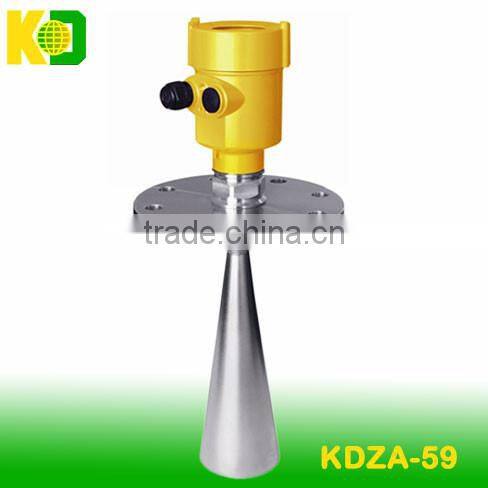

Model | KDZA57 | KDZA58 | KDZA59 |
Application | liquid | solid | solid |
High corrosive, sanitary | Storage vessel, process vessel, Strong dust, easy to crystallize, condensation | Normal temperature, normal pressure | |
Max. Range | 20m | 70m | l 5m |
Accuracy | +3mm | +1 5mm | +1 0mm |
Temperature | (-40 - 150)°C | (-40 - 80)°C | (-40 - 80)°C |
| (-40 - 1 20)°C | (-40 - 1 20)°C | |
| (-60 - 250)°C | (-60 - 250)°C | |
| (-60 - 400)°C |
| |
Process Pressure | (-0.1 - 0.5)MPa | normal pressure | normal pressure |
| (-0.1 - 4)MPa | (-0.1 - 4)MPa | |
| (-0.1 - 40)MPa |
| |
Frequency Range | 26GHZ | 26GHZ | 26GHZ |
Signal Output: | (4 - 20)mA/HART | (4 - 20)mA/HART | (4 - 20)mA/HART |
Power | 2 Wires (DC24V) | 2 Wires (DC24V) | 2 Wires (DC24V) |
4 Wires (DC24V/AC220V) | 4 Wires (DC24V/AC220V) | 4 Wires (DC24V/AC220V) | |
Field Displaying | optional | optional | optional |
Process Connection | A/B/C/D1 | A/B/C/D1 | A/B/C/D1(Page 4) |
Flange Accessories |
| G/H/I/J/K3 | G/H/I/J/K3 |
Antenna | U | L/M/N/P3 | L/M/N/P3 |
Frequency Range |
| S/T/V/W3 | S/T/V/W3 |
