Water pressure level indicator
- 1000 Piece / Pieces per Month
- China any port
- T/T Credit Card
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | KAIDI | Model Number: | KDMC20A |
Packaging Details
Each one in well protective inner carton, 10 pcs one box
Product Description

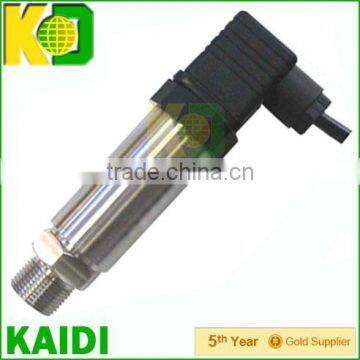

Water pressure level indicator MC20A
Specification:
Medium | Gas, liquid, oil (compatible with SS316) |
Measuring range | Gauge pressure(G)---Max(0 ~ 60)MPa, Min(0 ~ 0.5)KPa |
Absolute Pressure(A)---Max(0 ~ 40)MPa, min (0 ~ 5)KPa | |
Negative pressure(B)--- Max (-0.1 ~ 40)MPa, Min(-0.2 ~ 0.2 )KPa | |
Accuracy | 0.1, 0.25, 0.5 |
Overload capability | 2-3 times of Measuring range |
Long-term stability | <0.2%FS/yr, <0.5%FS/yr |
Power supply | 15 ~ 36 VDC(rated 24VDC) |
Output | (4 ~ 20)mA (2/3/4 line), (0 ~ 10/20)mA, (0 ~ 5)V, (1 ~ 5)V, (0 ~ 10)V |
Display | LCD or pointer gauge |
Calibration | Potentiometer |
Working temperature | -40 ~ 80°C Temperature Compensation: -20 ~ 70 °C |
Process connection | M20×1.5 (ID Φ5) or customized |
Weather proof | IP65 |
Optional radiator | Up to 300°C |
Isolation diaphragm | SUS 316 |
Sensor Connection material | 1Cr18Ni9Ti |
Shell material | Aluminum alloy |
Company Profile
Guangdong Kaidi Energy Technology Co. Ltd, is leading supplier of process control instruments and safety switches, and specialized in R&D, manufacture, marketing and service of point level detection, belt conveyor protection. Main products include: belt sway switch, pull cord switch, level switch.
We have extensive experience in the field of energy, metallurgy, electric power, power, automation, electronics, chemical, government, municipal, education, water-treatment, pharmaceutical equipment, machinery, and other industries,
We achieve High-precision and High-quality products with sophisticated equipments, advanced testing instruments, professional talents and modern management.
Our management and technology team value brand, efficiency and quality, and carry out the managing standard of the ISO9001 Quality Control System, take integrity and quality as the principle. High purity products, Short delivery time and Best service.
