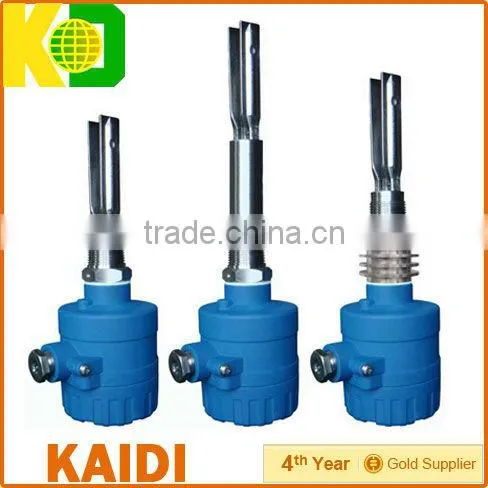

Help CenterFork Type Vibrating Level Switch
Related Products
Specifications
1. Anti-vibration,reliability and sensitivity.2. Temperatures up to 150 C
3. No moving parts, no maintenance
4. Small size
Vibrating (Turning) fork water level switch is based on the intelligent technology of computer and analog circuit.
Compared with traditional instruments, this new instrument overcomes false actions due to environment factors and dramatically improves anti-vibration, reliability and sensitivity.
At the same time, it can be adjusted online by situation changing in field. 485 bus can carry out central control. As a patent product, this instrument can offer better function for customers.
- Fine grained free flowing solids including very low density and pneumatically conveyed media, powders, plastic chips, cement, sand, sugar, food grains
- For detecting level of granular solid material submerged in liquids of low viscosity, like sand, gravel, plastic chips under water.
- For applications requiring the processing of different type of material in the same vessel.
Power supply: |
AC 220V 50Hz or DC 24V |
Output: |
SPDT. or PNP.NPN. |
Temp: |
fork -30°C~150°C, the meter -30°C~70°C |
Pressure: |
<2Mpa |
Power: |
<1W |
Density: |
>0.6g/cm³ |
Action point: |
Dip vertically 25mm into water |
Vibrating time: |
~3secs.response time.~1 sec |
Output: |
1a1b.AC 220V/3A,DC 30V/3A |
Backlash: |
~3mm Delay: 1.50S |
Connection: |
Customized |
Cable: |
M12X1.5. OD.6.8mm. |
Material: |
Aluminum Alloy/SUS304.SUS316L |
Weather Proof: |
IP65 |
