Specifications
1. Contact Capacity: AC220V/1A DC24V/0.5A2. Pressure rating: <=0.5 Mpa
3. Specific gravity: 0.7
4. Output: SPST NO/NC

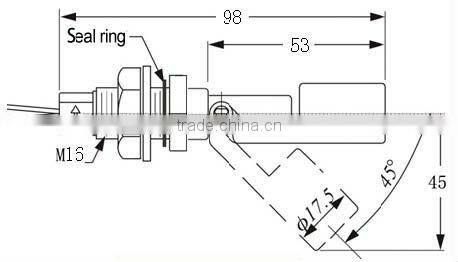

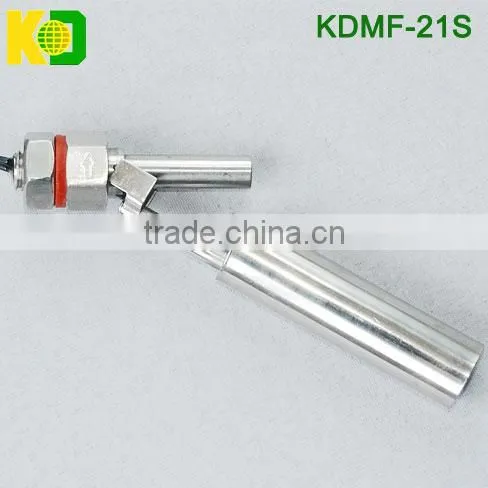

Float liquid level controller
Kaidi Fluid Controls will get you the right float switch or liquid level sensor for your application! Whether you need an off the shelf float switch or a custom designed liquid level sensor, we can help! Strain Measurement Devices is a technically driven design and manufacturing firm dedicated to helping customers solve their toughest sensor and measurement problems. KAIDI's talented staff has been designing custom sensors to measure force, pressure, temperature, weight, torque, liquid level and many combinations.
Contact Capacity: AC220V/1A DC24V/0.5A
Pressure rating: ≤0.5 Mpa
Specific gravity: 0.7
Output: SPST NO/NC
Temperature rating: -20~80°C
Protection rating: IP68
Probe material: PP
Body material: PP
Mounting type: M16
Cable length: 500±10mm
Installation: Horizontal
Anti-explosion: No
