Specifications
1. Multi detecting point.2. Working pressure: <= 4MPa
3. Temperature: -30 ~ 130 C
4. Medium applied: Water, sewage, oil

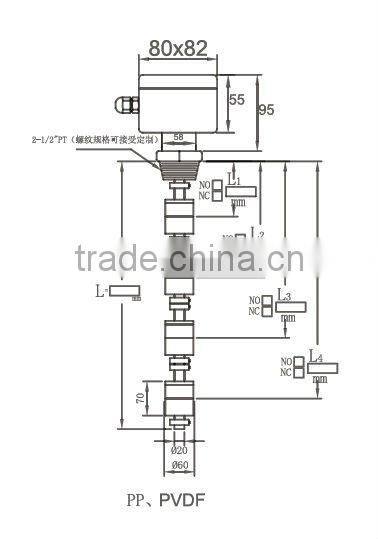

Stainless steel magnetic oil level switch
We can design a tank level sensor to indicate your tank levels or to maintain the level of your fluid in a tank or vessel. Our base models are GF tank switches, and can be designed to control 1-6 tank levels with standard materials in stock. If you need Level/Temperature, Oil/Water interface or if you just want help designing your own custom tank level sensor,Contact us now!
Contact capacity |
AC220V/1A; DC24V/0.5A |
Working pressure |
≤ 4MPa |
Share float |
0.7 |
Output signal |
SPST NO / NC |
Operating temperature |
-30 ~ 130 C |
Protection class |
IP65 |
Float material |
SUS304/SUS316L |
Body Material |
SUS304/SUS316L |
Connection |
G1 / 8 "(thread can be scheduled) |
Outlet length |
Can be Customized |
For occasions |
Water, sewage, oil, liquid |
Installation |
Vertical installation |
Designing you own tank level sensor or pump control can be easy. We can design a tank level sensor to indicate your tank levels or to maintain the level of your fluid in a tank or vessel. Our base models are GF01 tank switches, and can be designed to control 1-6 tank levels with standard materials in stock. If you need Level/Temperature, Oil/Water interface or if you just want help designing your own custom tank level sensor.
